  • Yale nexTouch AUR-NTM-62

    Sectional Mortise Touchscreen Keypad Lock

    SKU: AUR-NTM622-ZW3-626

    nexTouch and Yale



    Wireless Capable - Pairs to Z-Wave Systems
    Step up your property’s security with nexTouch! Skip the lockouts, re-keying, and expensive hard-wiring. Fast, effortless monitoring of doors, generate secure on-demand access codes, and control connected Z-Wave devices all from a centralized hub.

    Option

    Quantity left : -2

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $161.35

    Call For Price
    • Backlit capacitive touchscreen keypad – pushbutton model also available
    • Designed for small business applications
    • Integrates seamlessly with existing Z-Wave alarm and automation systems, including Ezlo Plus  controllers
    • User capacity:  25-500*
    • Easy to install; standard door prep, 2-1/8″ cross-bore, 1″ edge bore
    • Augusta lever
    • Enables easy and remote management of access rights
    • Reduces cost of re-keying
    • Includes cylinder override
    • Voice prompted programming
    • Provides real-time notifications
    • Privacy mode to lockout keypad entry
    • Low battery indicator
    • Weather resistant seal
    • 9V battery back-up

    *500 Users with Wireless, 25 Users Stand-alone without Wireless

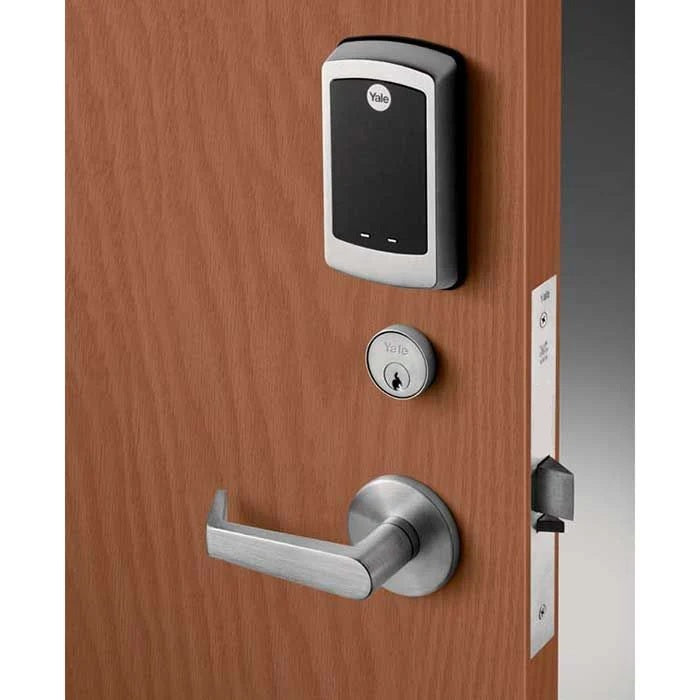

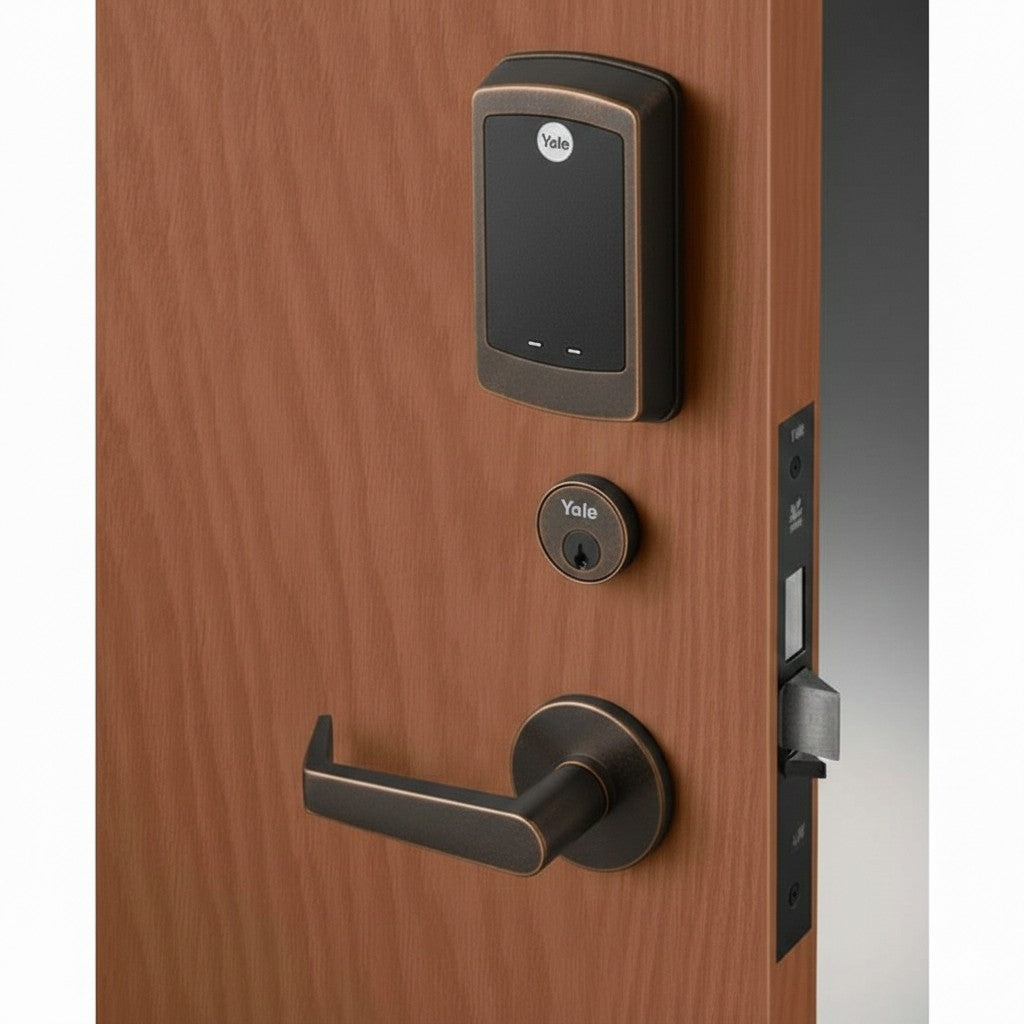

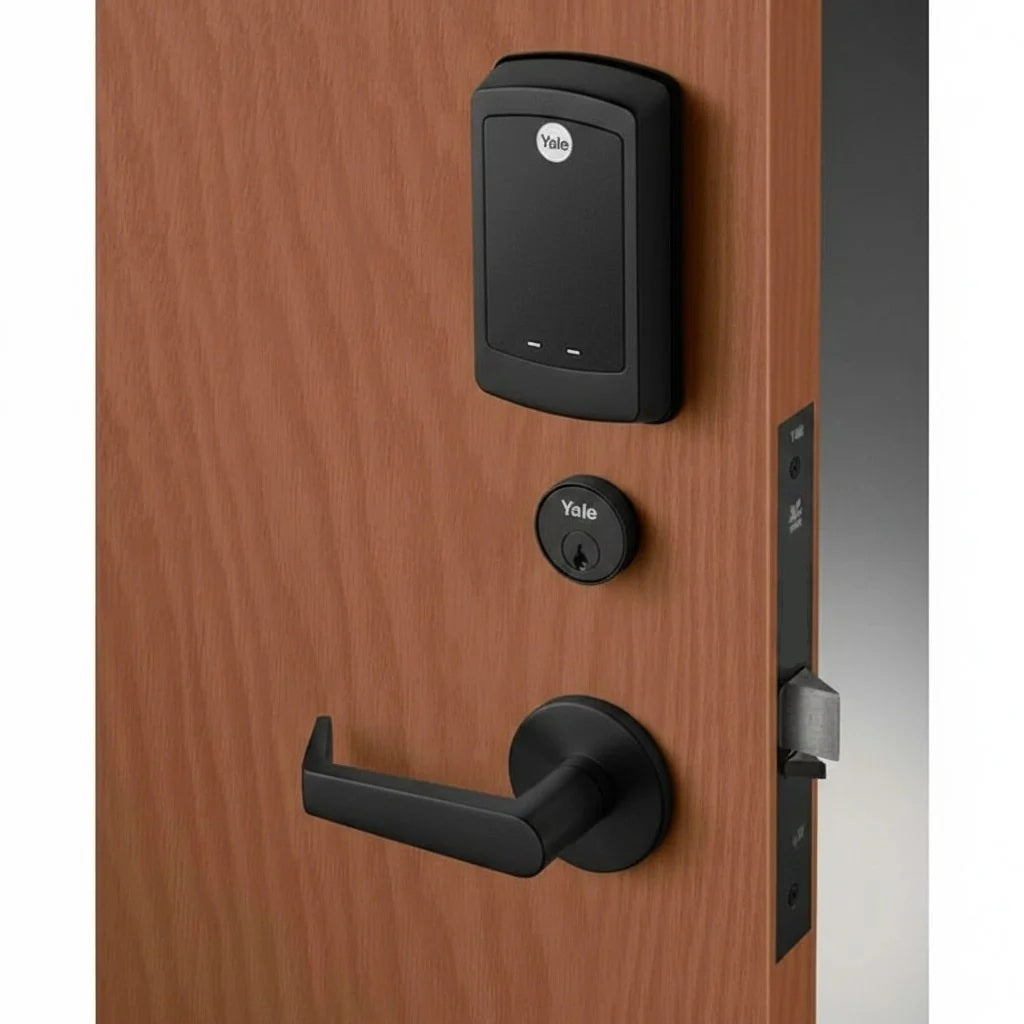

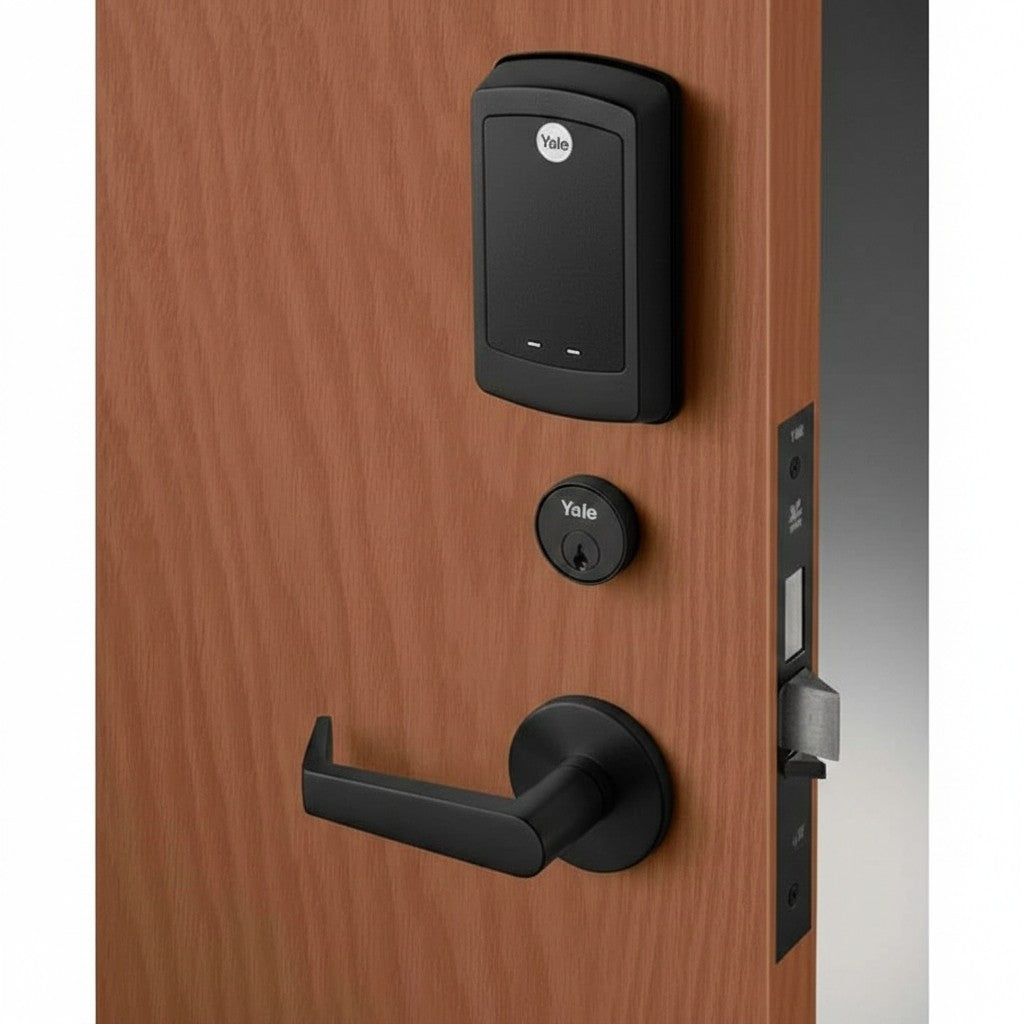

    Don’t waste time and money with lockouts, lost keys, and cumbersome key management. Skip the hassle and go keyless with the Yale nexTouch Sectional Mortise Lock. This heavy-duty mortise lock is equipped with a sleek capacitive touchscreen for digital code entry and a ADA friendly lever. Quickly generate secure digital codes to send to staff, vendors, and guests and monitor doors with real-time notifications. The nexTouch Z-Wave series easily integrates into your existing or new Z-Wave network, providing streamlined and centralized property management without having to install extra software. The lock’s low-battery indicator alerts you when it’s time to change batteries, and the 9V battery backup on the exterior prevents a lockout should the lock lose power. In case of emergency, a manual key override is available. Ideal for multi-family, small business, or mixed-use properties.

    Basic

    Manufacturer Yale
    ANSI Rating Grade 1 (Best)
    Battery Type 4 AA
    BHMA Rating Grade 1 (Best)
    Finish Satin Chrome
    Lock Features Old Audit Trail, Privacy, Remote Control, Temporary Codes, Timed Codes, Z-Wave Plus
    Solution Electronic
    Warranty 3 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits
    Locking Device Mortise
    Mortise w/Deadbolt
    Brand nexTouch
    Yale

    Door requirements

    Door Handing Reversible
    Door Prep Standard 2 1/8 in. Cross-Bore
    Latch Bolt 3/4 in.

    Security

    Code Length 4 to 6 Digits
    Key Override Yale Commercial SFIC
    Users 500
    Wireless Protocol Z-Wave Plus

    Dimensions

    Door Thickness Minimum 1 3/4 in.
    Door Thickness Maximum 1 3/4 in.
    Backset 2 3/4 in.
    Certifications ADA
    Door Stile Width Minimum 3 1/2 in.
    Weight 6 lbs


    Z-Wave Systems:
    This is a Z-Wave device that can be controlled remotely by connecting it to one of these systems.

    Home Automation is a style of living. It is about always being connected to the home you love. These systems* allow you to control your connected home devices such as door locks, thermostats, lights, motion sensors, cameras, water sensors, and more, all remotely from a computer or smartphone.

    *Also works with Samsung SmartThings, Ring, Wink, Iris, ADT Pulse, Alarm.com, Honeywell, HomeSeer, LG Smart Security, Staples' Connect, Harmony by Logitech, and many more.
