  • Yale nexTouch AU-NTT622-ZW2

    Z-Wave Touchscreen Exit Trim

    SKU: AU-NTT623-ZW3-626-2153-RHR-1-3/4

    nexTouch and Yale



    The next level in convenient exit! The Yale nexTouch Z-Wave Exit Trim provides easy and secure keyless PIN code access for your exit doors. Equipped with a touchscreen keypad, lockout mode, audit trail and more. Future-proof modular technology allows for upgrades as needs and technology expands.

    Door Thickness Maximum

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $167.63

    Call For Price

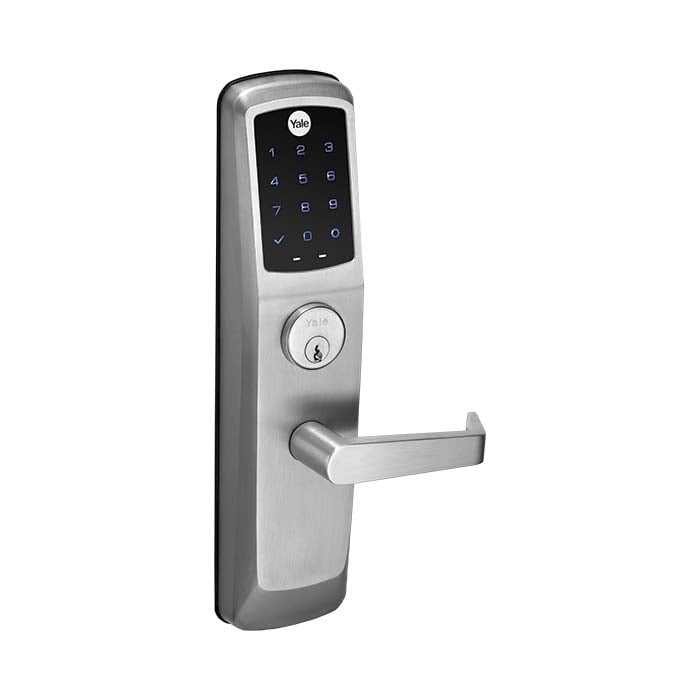

    • Touchscreen keypad model, pushbutton keypad option also available
    • Integrates seamlessly with existing Z-Wave alarm and automation systems, including VeraEdge and VeraPlus controllers

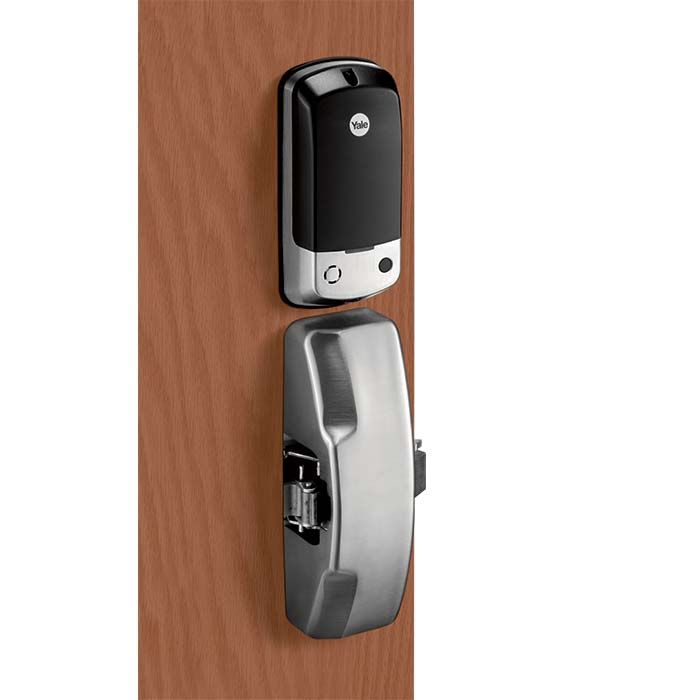

    • Exit trim only (exit device sold separately, see compatibility list below)
    • Ideal for retrofit projects and new construction multi-family properties, small business office space, retail space, hotel, airport, restroom, or mixed-use commercial building
    • Offers easy upgrade from mechanical exit trim to key-free access management
    • Augusta lever and Satin Chrome finish standard – other finishes and lever designs available via special order
    • Bolt retracted by pushbar on interior and lever on outside except when outside lever is locked
    • Standard mortise cylinder
    • Key override unlocks the outside lever only
    • Deadlocking rim bolt
    • Manage up to 500 unique PIN codes in keypad only operation
    • Voice guided programming in 3 languages (English, Spanish and French)
    • Privacy mode
    • Lockout mode
    • Low Battery Indication
    • 9V battery power backup
    • Weather Resistant Seal

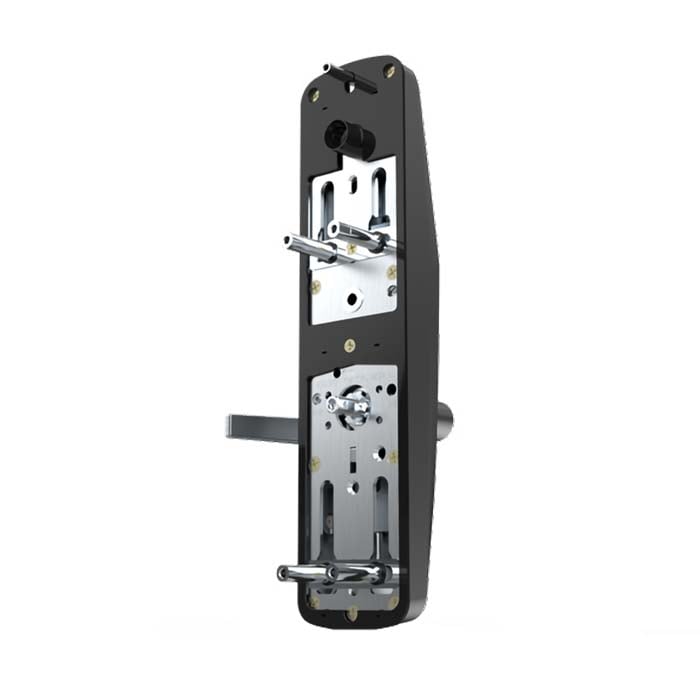

    • Patented adjustable mounting posts make the nexTouch exit trim compatible with many exit device models

    Compatible Exit Rim Device Models/Series

    Don’t waste time and money with lockouts, lost keys, and cumbersome key management. Skip the hassle and go keyless with the Yale nexTouch Keypad Exit Trim. This heavy-duty exit trim is equipped with a sleek modern touchscreen keypad for code entry and an ADA friendly lever. Quickly generate secure digital codes to send to staff, vendors, and guests and monitor doors with real-time notifications. The nexTouch Z-Wave series easily integrates into your existing or new Z-Wave network, providing streamlined and centralized property management without having to install extra software. The lock’s low-battery indicator alerts you when it’s time to change batteries, and the 9V battery backup on the exterior prevents a lockout should the lock lose power. In case of emergency, a manual key override unlocks the outside lever. Patented adjustable mounting posts provide compatibility with many exit device models. Ideal for new construction or retrofit projects in multi-family, small business, or mixed-use properties.

    Basic

    Manufacturer Yale
    ANSI Rating Grade 1 (Best)
    Battery Type 4 AA
    BHMA Rating Grade 1 (Best)
    Finish Satin Chrome
    Lock Features Audit Trail, Auto Relocking, Battery Backup, No Tour, Privacy, Temporary Codes, Timed Codes, Z-Wave Plus
    Solution Electronic
    Warranty 1 Year Limited Finish, 3 Year Limited Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits
    Locking Device Panic/Exit
    Exit - Rim
    Brand nexTouch
    Yale

    Door requirements

    Door Handing Left Reverse, Right Reverse
    Battery Life 1 Year
    Door Prep Standard 2 1/8 in. Cross-Bore

    Security

    Code Length 4 to 8 Digits
    Users 500
    Wireless Protocol Z-Wave Plus
    Wireless Range 40 ft. (increase range with repeaters / mesh network)

    Dimensions

    Exterior Dimensions 13 (H) x 3.125 (W) x 3.3125 (D) in.
    Door Thickness Minimum 1 3/4 in.
    Door Thickness Maximum 1 3/4 in., 2 1/4 in.
    Certifications ADA
    Exterior Dimensions 13 (H) x 3.125 (W) x 3.3125 (D) in.
    Weight 7 lbs


    Z-Wave Systems:
    This is a Z-Wave device that can be controlled remotely by connecting it to one of these systems.

    Home Automation is a style of living. It is about always being connected to the home you love. These systems* allow you to control your connected home devices such as door locks, thermostats, lights, motion sensors, cameras, water sensors, and more, all remotely from a computer or smartphone.

    *Also works with Samsung SmartThings, Ring, Wink, Iris, ADT Pulse, Alarm.com, Honeywell, HomeSeer, LG Smart Security, Staples' Connect, Harmony by Logitech, and many more.
