Yale Assure YRC226 Z-Wave

Name: Yale Assure YRC226 Z-Wave
Brand: GoKeyless
SKU: YRC226ZW2AU4619RH
Price: 428.68 USD
Availability: InStock

Wireless Touchscreen Interconnected Electronic Lock

SKU: YRC226ZW2AU4619RH

Yale Home

Goodbye keys and hello convenience. Ideal for multi-family, residential, and light-duty commercial projects, this Z-Wave integrated touchscreen lock from Yale offers a smooth weather resistant design and easy installation. The interior lever retracts the latch and deadbolt simultaneously for a quick exit while the motorized deadbolt ensures a secure lock every time.

$475.00 $428.68 SAVE 10%

Key Override

Standard

Best IC

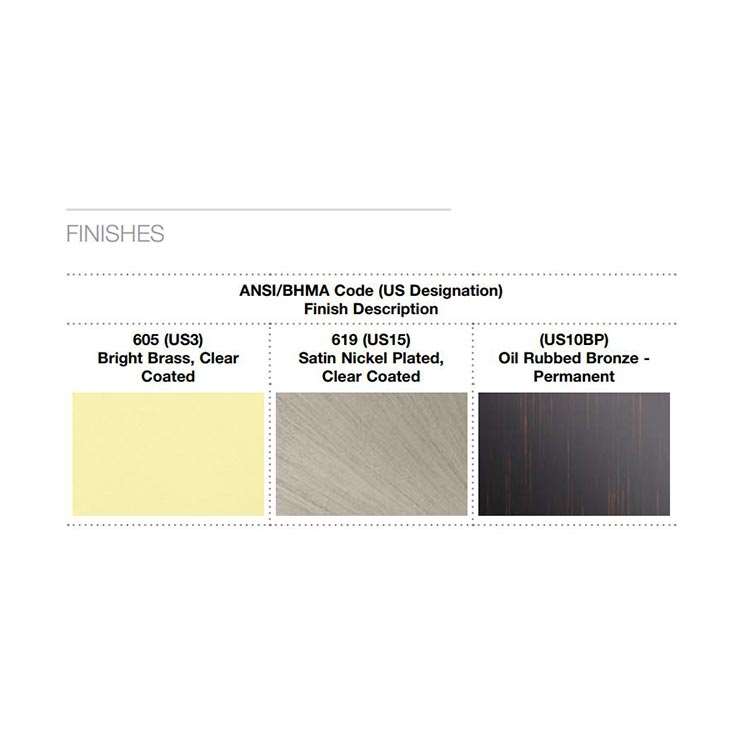

Finish

Satin Nickel sold out

Oil Rubbed Bronze sold out

Bright Brass sold out

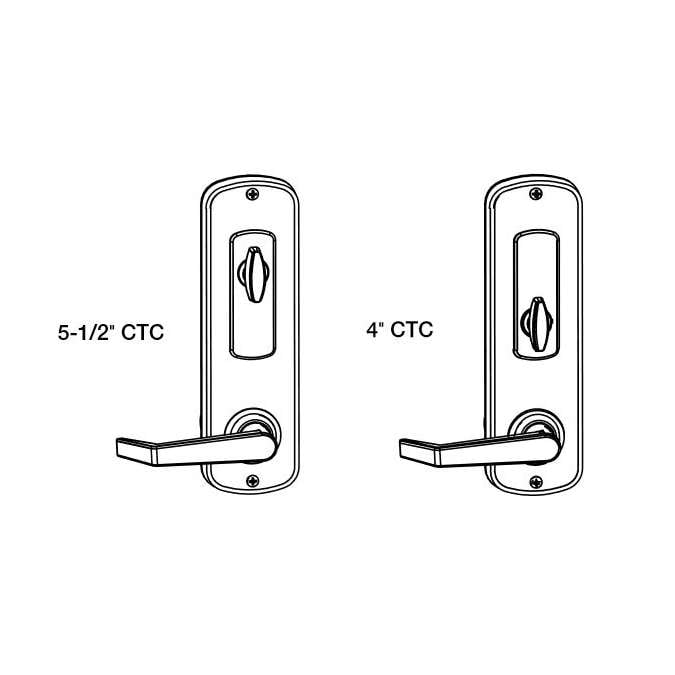

Center to Center

4 in.

5 1/2 in.

Qty

Quantity left : 0

EXTENDED PROTECTION PLAN

3 Years of SHIELD Coverage

Product Replacement | Extended Return Policy | Price Protection

Terms and Conditions

$85.74

Add shield product

Call For Price

Features
Description
Specifications
Z-Wave Certified

Yale Assure Lock Interconnected Lock Series

Features

Yale Real Living Assure Lock Interconnected combines electronic deadbolts with the convenience of a passage lever for panic proof egress
From the inside, both the latchbolt and the deadbolt are retracted simultaneously in a single motion for a quick and easy exit
Z-Wave integrated

Benefits

Installs in minutes with just a screwdriver, DIY installation or professionally installed
Field reversible handing
Stores 25 pin codes standalone or 250 when integrated into a Z-Wave or ZigBee system
Rubber gasket protects your door and shields your lock from weather elements
Motorized, tapered deadbolt
Low battery indicator and 9V battery back-up terminal on key free models
Solid metal escutcheon
Privacy button prevents unwanted access from the outside at the touch of a button
Voice assisted programming on the touchscreen models
Capacitive touchscreen or acrylic push button keypad with backlit numbers
Keypads wake with a touch

These locks present a significant benefit to multi-family and multi-unit projects, commonly requiring rekeying:

Multi-family residences
Assisted living facilities
Public restrooms
Office and small business applications

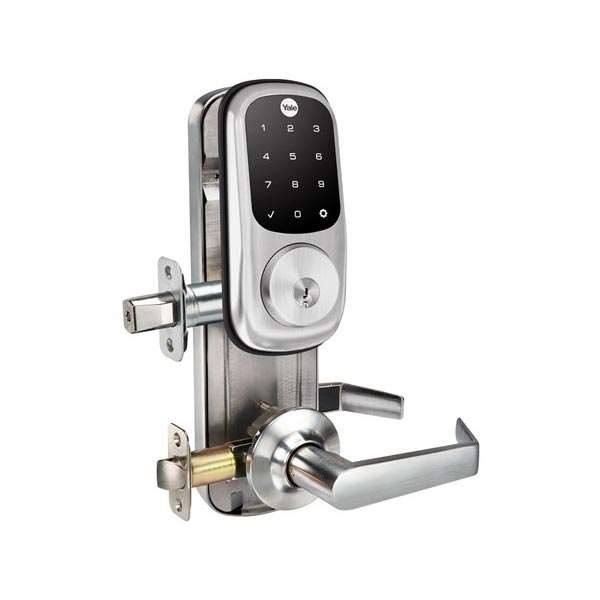

YRC226 with Z-Wave

Single point lock
The latchbolt is operated by either lever at all times
The deadbolt is activated by either lever at all times
Deadbolt activated by touchscreen or key on outside or by thumbturn on inside

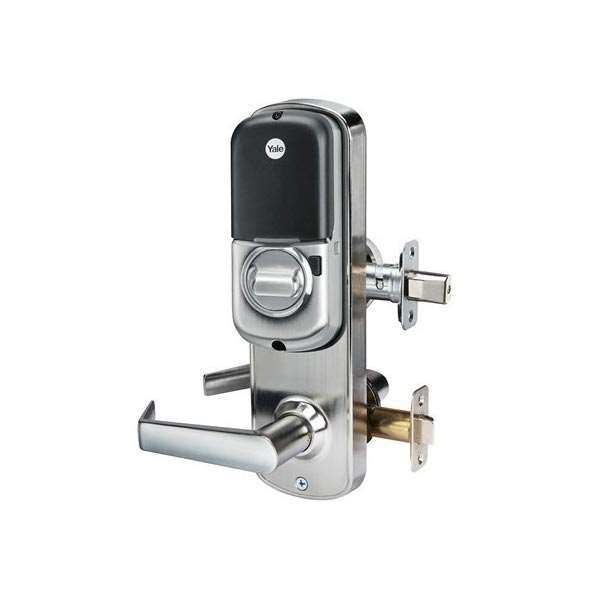

The interior lever retracts the latch and deadbolt simultaneously

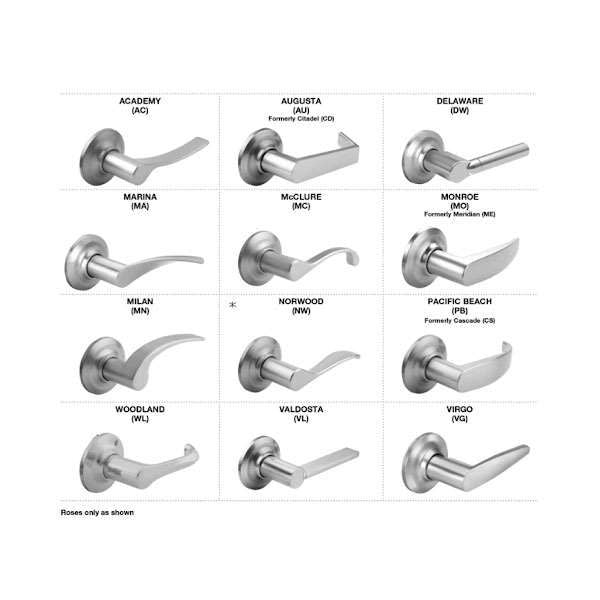

*Augusta lever style shown, additional lever styles available by special order

**Also available in push button YRC216

Home Automation is a style of living. It is about always being connected to the home you love. These systems allow you to control your connected home devices such as door locks, thermostats, lights, motion sensors, cameras, water sensors, and more, all remotely from a computer or smartphone.

STRENGTHEN YOUR Z-WAVE NETWORK WITH A SIGNAL REPEATER

LEARN MORE

Ideal for multi-family, residential, and light-duty commercial projects, the Yale Interconnected Lockset offers a smooth design and easy DIY installation with just a screwdriver. A rubberized gasket protects the lock and door from weather while the solid metal escutcheon protects against break-in attempts. Simultaneous retraction of the deadbolt and latchbolt with the lever means a speedy exit. With the ability to store up to 250 unique codes through Z-Wave, you can ensure specific lock access to a large amount of visitors. The backlit touchscreen allows for low light access and a privacy button prevents any access at all. Available in three finishes. Additional lever styles are available by special order.

Basic

Manufacturer	Yale
ANSI Rating	Grade 2 (Better)
BHMA Rating	Grade 2 (Better)
Compatibility	Ring Video Doorbell
Lock Features	Auto Relocking, Battery Backup, Privacy, Z-Wave Plus
Solution	Electronic
Warranty	1 Year Finish and Electronics, 3 Year Mechanical
Handle Type	Lever Handle Door Locks
Access Type	Key Keypad - Digits
Locking Device	Interconnected
Brand	Yale Home

Door requirements

Door Handing	Reversible
Battery Temperature Range	-14°F to 131°F (-10°C to 55°C)
Strike	1 x 2 1/4 in. (Deadbolt), 2 1/4 in. (Lever)

Security

Code Capacity	250
Keying	Key Different
Wireless Protocol	Z-Wave Plus

Dimensions

Door Thickness Minimum	1 3/8 in.
Door Thickness Maximum	1 3/4 in.
Backset	2 3/8 to 2 3/4 in. adjustable
Height	Ring Video Doorbell
Storage Temperature Range	-40° to 185°F (-40° to 85°C)

Z-Wave Systems:
This is a Z-Wave device that can be controlled remotely by connecting it to one of these systems.

Home Automation is a style of living. It is about always being connected to the home you love. These systems* allow you to control your connected home devices such as door locks, thermostats, lights, motion sensors, cameras, water sensors, and more, all remotely from a computer or smartphone.

*Also works with Samsung SmartThings, Ring, Wink, Iris, ADT Pulse, Alarm.com, Honeywell, HomeSeer, LG Smart Security, Staples' Connect, Harmony by Logitech, and many more.
