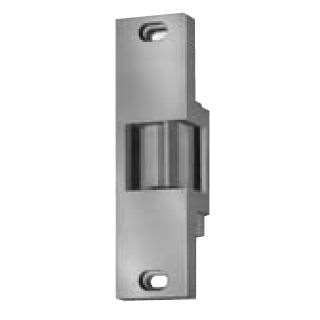

  • Von Duprin 6113

    Electric Strike for Rim Exit Devices

    SKU: 6113-32D 24VDC

    Von Duprin



    Single door applications only.

    Finish
    Voltage

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $172.99

    Call For Price
    • Door Application:  Rim exit devices on single door, hollow metal, aluminum, or wood frames
    • Accepts 3⁄4″ (19mm) Throw Latchbolt
    • Six Finishes
    • Non-handed
    • Fail Secure — Fail Safe models available upon request
    • Horizontally Adjustable
    • Plug Connectors

    Durability

    • Heavy-duty Stainless Steel construction
    • Tested to over 250,000 cycles
    • 1500 lbs. holding strength
    • 70 lbs. impact strength

    Specs

    • Resistance in Ohms ±10% @ 70°F.  12V:  21, 24V:  82
    • Watt-seated @ 70°F.  12V:  7.5, 24V:  8
    • Amps-seated @ 70°F.  12V:  .6, 24V:  .33
    • Amps-inrush @ 70°F.  12V:  .6, 24V:  .33

    A drop in replacement for Von Duprin model 3011 and 3021 electric strikes, the Von Duprin 6113 electric strike gives you the ability to buzz in visitors through a locked door. What this means in practice is your front office staff, or manager can simply let someone in remotely without the need to leave their desk. When the strike is energized — typically from a receptionist button, transmitter, or switch — the 6113 will release its lip, freeing the latch bolt. This occurs as the person being welcomed in by the buzzing sound pulls the door open. The Von Duprin 6113 electric strike will give you plenty of mileage. Its cast from stainless steel, and features an adjustable back box to compensate for mis-aligned doors and frames. Your Von Duprin 6113 electric strike also comes furnished with two piece plug connectors to aid in making the installation process as easy as it can get. These connectors come in handy for removal of the strike should you ever need to service it too.

    Basic

    Manufacturer Allegion
    Finish Polished Brass, Satin Stainless, Polished Stainless, Dull Bronze, Dull Brass, Dark Bronze
    Voltage 12VDC, 24VDC
    Product Headline Electric Strike for Rim Exit Devices
    Brand Von Duprin

    Door requirements

    Security

    Dimensions
