Trine 017TDC-4

Name: Trine 017TDC-4
Brand: GoKeyless
SKU: GKIT-017TDC-4-018-4-BLK
Price: 104.54 USD
Availability: InStock

Wireless Controller + Transmitter Kit

SKU: GKIT-017TDC-4-018-4-BLK

Trine

On point access. The Trine 017TDC-4 Wireless Controller and 018-4 Wireless Two Button Transmitter bundle makes remote release of doors easy. Wireless remote utilizes rolling code protocol for hacker prevention and encrypted communication, providing fast and secure entry to your perimeter and interior doors, garage doors and more!

$104.54

Features
Description
Specifications

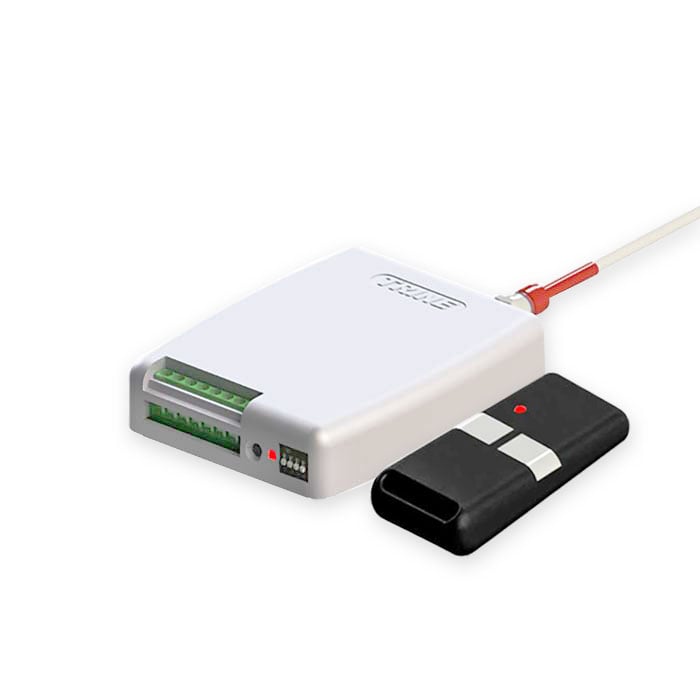

This bundle includes: Trine 017TDC-4 Wireless Controller (1) and 018-4 Wireless Two Button Transmitter (1)

TRINE 017TDC-4 Wireless Controller

Now utilizing rolling code
500 foot range
2 Channel Receiver and Transmitter
Independently Programmable A & B Channel
4, 8, 16 Second Delay or Alternate Action Trigger
Will work with 12 through 30 V AC/DC
Dry Contact Relay rated up to 30V @ 5 Amp Max
Relays can be programmed for continuous “ON”and “OFF” alternate action
Single Pushbutton Program Erase (for security)
Superheterodyne low radiant receiver
Screw Terminal Connections
Up to 8 transmitters per one receiver
68 billion codes
Not backwards compatible with any other 017TDC/018 Model

TRINE 018-4 Wireless Two Button Transmitter

Uses Rolling Code Protocol
Rolling Code technology provides self learning and 4+ billion codes
LED indicates operation
Operates on 433.92 MHz
Transmitter size: 1.4 in. x 2.9 in. x 0.5 in.
A-23 Battery Included
FCC/IC Approved
Must be used with the 017TDC-4 Controller (Not backwards compatible with any other 017TDC/018 Model)
White, Blue, and Red color options available for special order

Trine 017TDC-4 Wireless Controller

Secure your building with a constantly changing code. The Trine 017TDC-4 wireless controller operates with rolling code technology and covers a 500 foot range. Equipped with 2 independently programmable channels and a 4, 8 or 16 second delay or alternate action trigger. Programmable relays can be set for continuous “ON” or “OFF” alternate action. Protect against misuse and code hijacking with the single pushbutton program erase function. Up to 68 billion different codes can be recognized by the receiver sent by up to 8 transmitters. The 017TDC-4 is NOT backwards compatible with any previous 017TDC/018 model.

Trine 018-4 Wireless Two Button Transmitter

Secure your door with the press of a button. The Trine 018-4 wireless two button transmitter provides communication to your Trine 017TDC-4 wireless controller. Only to be used with the 017TDC-4 Controller. Utilizes self learning and over 4 billion different coded signals using the rolling code protocol and 433.92 MHz band to function. A red LED confirms operation. White, Blue, and Red available for special order. The 018-4 is NOT backwards compatible with any previous 017TDC/018 model.

Basic

Manufacturer	Trine
Radio Frequency	433 MHz
Voltage	12V to 30V AC/DC
Warranty	1 Year Manufacturer
Brand	Trine

Door requirements

Security

Wireless Range	500 ft.

Trine 017TDC-4

Basic

Door requirements

Security

Dimensions
