Trilogy PDL5300

Name: Trilogy PDL5300
Brand: GoKeyless
SKU: PDL530026D
Price: 1623.83 USD
Availability: InStock

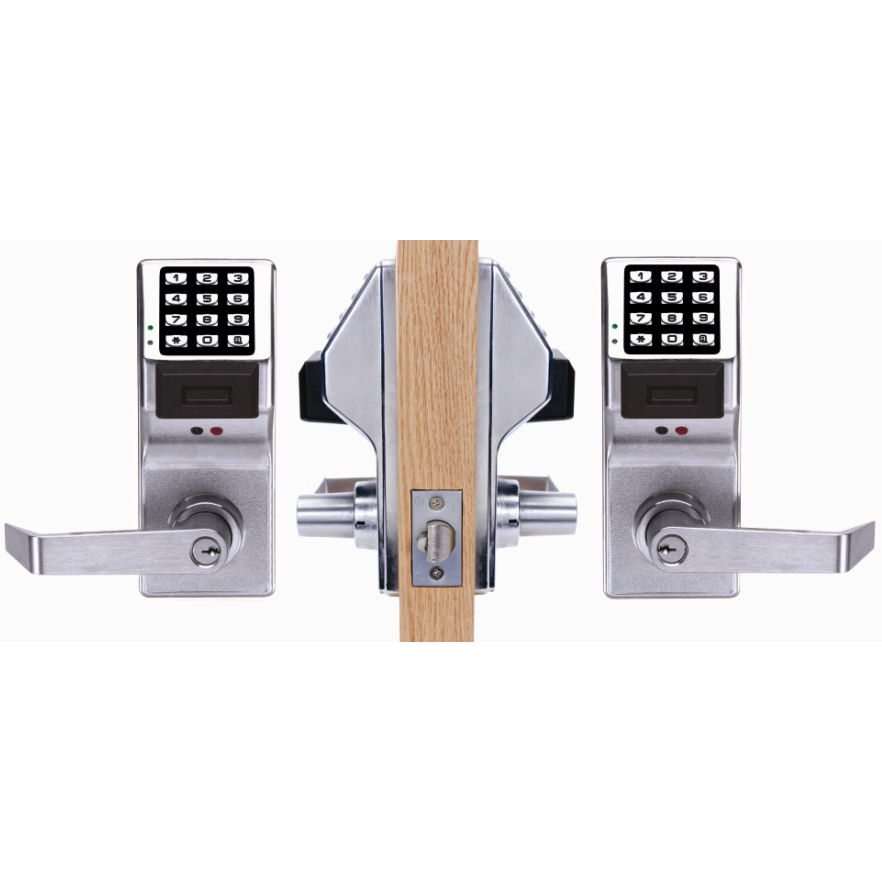

Double-Sided Prox Card Access Control Lock

SKU: PDL530026D

Alarm Lock Trilogy

The Trilogy PDL5300 provides keyless, controlled access on both sides of the door. Capable of accommodating multiple users. Trade your keys for codes or prox cards and manage users from the door in seconds. Suitable on gates and openings where dual sided control is needed. Deter theft and ensure doors are always locked.

$2,295.00 $1,623.83 SAVE 29%

Features
Description
Specifications
Trilogy Support

Heavy Duty, BHMA Grade 1 lock with UL 3 hr. fire rated cylindrical latch
Stand-Alone key card security of gates & controlled entry and exit applications
Enrolled users gain access card/fob only, PIN only, or highest security, PIN + card/fob (you may use your existing HID125kHZ cards – GREAT for EXPANDING your perimeter card entry to interior openings)
Compatible with any HID 125kHZ prox cards 26-48bit
Program at lock (on primary side of door), or with your computer using Windows PC based software
Program users to have access through both sides of the door or just one side
Battery Operation: 5 AA’s; appx. 60,000 cycles; low battery alerts; lock may be hard-wired with 9VDC or 9VAC power supply for remote release / battery backup
Vandal-resistant construction with an all metal keypad. Rugged clutch mechanism insures long life & durability
Weatherproof performance
500 timed lock/unlock schedules
Supports 2000 users with card/fob or PIN credential. PIN codes of 3-6 digits in length. Millions of possible codes. Set authorization levels using Master, Manager, Supervisor and Basic User codes
“Temporary Keypad Lockout” after 3 unsuccessful code-entry attempts
40,000 event audit trail with time/date stamp. Download via laptop, DTM-III, or IR-1 printer. Shows user direction.
4 Time-out functions allow a user to enable other users or unlock the lock for some time period without needing to return to the lock
Easy to install. Retrofits cylindrical locksets
Available in standard key override (includes standard cylinder with a 6-Pin, solid brass, Schlage SC1 keyway. You may also use other Schlage cylinders, or Corbin-Russwin CL, Sargent 480, ASSA 65-611, & Lori cylinders) and IC prep – interchangeable core models accepting 6 or 7 pin cores from Arrow, Best, and Falcon (use your own cores in the lock, or you may order one from us here). IC models may be subject to a lead time
Commercial 2-3/4″ backset included (2 3/8″ available at checkout) How do I measure?
Key override on primary door side (mirror key cylinder also provided on secondary side, however it is used solely to gain access to battery compartment)
2-year manufacturer warranty

Chances are at least one person will leave your organization in the next two months. Imagine if you could delete that person from your locks electronically. And be able to audit any of the spaces that individual had access to should anything come up missing. Those are just a couple of the benefits when you invest in a new keyless entry system. Not to mention, all those keys you have to keep track of? Well, you won’t have to anymore. And the re-keying… eliminated. Where can you use this lock? In openings that require two-way door control, as well as gate applications. (gate box sold separately at checkout) The Trilogy PDL5300 ramps up your security and improves facility operations. You can recover your investment within the first weeks of use.

Ideal for community pool gates, courtyard gates, airport jet bridge doors, communicating doors, interrogation rooms, psych and Alzheimer areas, and more!

Basic

Manufacturer	Alarm Lock
Battery Type	AA
BHMA Rating	Grade 1 (Best)
Event Scheduling	500, Automated Unlock/Lock
Finish	Satin Chrome
Lock Features	Audit Trail, Double-Sided, Passage Mode, Scheduling, Timed Codes
Radio Frequency	125 kHz
Solution	Electronic
Warranty	2 Year Manufacturer
Handle Type	Lever Handle Door Locks
Reader Type	Prox Card/Fob RFID
Access Type	Key Keypad - Digits Proximity Card/Fob
Locking Device	Cylindrical Latch
Brand	Alarm Lock Trilogy

Door requirements

Door Handing	Non-Handed
Battery Life	60,000 Cycles
Door Prep	Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s)

Security

Code Length	3 to 6 Digits
Code Capacity	2,000
Fire Rating	UL 3 hr. latch
Users	2,000

Dimensions

Exterior Dimensions	8 (H) x 3 1/4 (W) x 2 3/8 (D) in.
Inside Dimensions	["8 (H) x 3 1/4 (W) x 2 3/8 (D) in."]
Door Thickness Minimum	1 5/8 in.
Door Thickness Maximum	1 7/8 in.
Backset	2 3/4 in.
Door Stile Width	Minimum 4 1/2 in.
Exterior Dimensions	8 (H) x 3 1/4 (W) x 2 3/8 (D) in.
Weight	11 lbs

TECH SUPPORT FOR ALARM LOCK TRILOGY PRODUCTS*
*Basic email support only. Additional support time available for a fee.

You are not comparing apples to apples when shopping for Trilogy locks online.

GoKeyless is a full service company and backs up its sales support with product and technical support.

What good is the lock to you when you have to spend countless hours trying to find the answer to something when you could have just contacted the experts.

In addition to answering technical questions for you — troubleshooting only, does not include training, or programming — our agents are also available for paid training on importing your users, communicating with the lock, establishing your mission critical access schedules, navigating the software, and utilizing all of the features and functions of your new access control system.

Our virtual support fees start at $70/hour or can be purchased as an annual tiered service.

Technical Support Hours: M-F 9am-5pm EST
