  • Trilogy Networx PDL1300NW

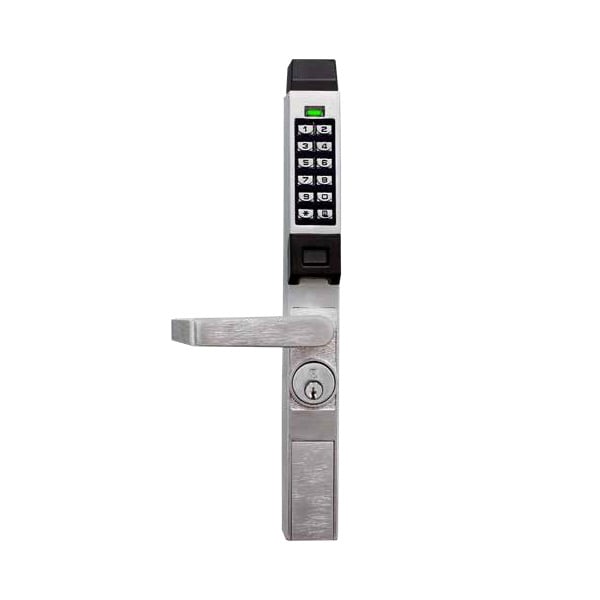

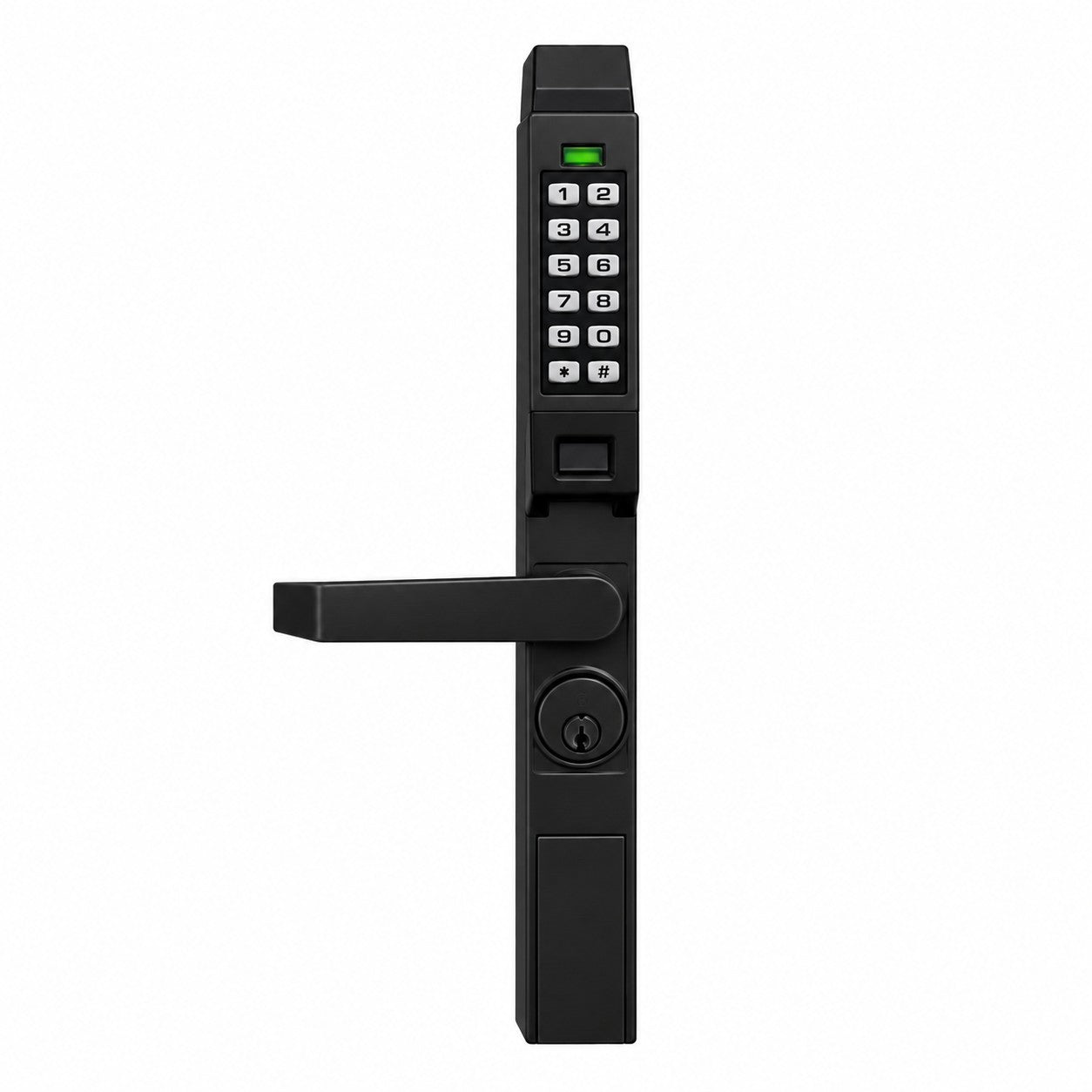

    Narrow Stile Digital Lock

    SKU: PDL1300NW/26D1

    Alarm Lock Trilogy and Trilogy Networx



    A slim lock big on features with proven Alarm Lock durability. Trilogy Networx removes the hassle of physical lock access for audit trails, programming, and unlocking your door, saving you valuable time and money. Existing lock features are expanded through Networx, allowing for remote access capabilities such a system-wide free-passage mode, 10 second emergency global lockdown, key fob lock control and more.

    Quantity left : 4

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $167.53

    Call For Price

    PDL1300NW

    • Pushbutton digital security-keypad
    • HID card reader; reads any HID 125kHZ prox cards
    • Battery Operation; Includes 4 AA batteries
    • Low battery audible and visual alerts
    • Commercial grade durability in a keyless entry system requiring no wiring
    • Retrofits traditional keyed-in aluminum store doors with Adams Rite 4510, 4900 Series, 1850, 1950, 4710, and 4730 locks
    • Outside trim only; inside exit paddle and deadlatch available at checkout
    • Program at lock or through Networx
    • Field proven Trilogy name; ensures long life and reliability
    • Enrolled users gain access by card only, PIN only, or highest security – card + PIN
    • Real-time clock lets you scheduled up to 500 timed events, including Holiday schedules.  Program lock to auto lock at certain times, or auto-unlock.  Program times when certain users or groups of users can gain access
    • Card data added to the lock via the lock itself, card reader module (see AL-PRE below), or PC (personal computer)
    • 2000 User Codes including and up to 5,000 through Networx (see below): Master, Manager, Supervisor and Basic Users
    • Program passage mode, emergency and service codes, group-lockout, and group-enable codes.
    • Weatherproof performance
    • Proximity antenna housing molded of ultra high strength, impact resistant Lexan
    • Real Time Clock Allows logging of events to within 1 second of accuracy
    • 40,000 Audit trail event log
    • Key override; includes a 1 3/8″ long mortise cylinder from the manufacturer and 2 keys.  All mortise cylinders are interchangeable so if you have a name brand one you want to use you can, or we sell name brand ones.  Please call us at (877) 439-5377 for custom cylinder orders
    • 2-year manufacturer warranty
    • Built-in prox reader, supports up to 2000 users with HID Prox ID cards or fobs or 3-6 digit PIN codes
    • Easy Tap and Add batch prox ID card enrollment mode allows many cards to be quickly added without PC – also downloadable from PC or prox enroller tool
    • 40,000 event time/date-stamped audit trail by user
    • 500 event schedule/real time clock (e.g. lock/unlock by time)

    Trilogy Networx

    • Communicate wirelessly via Ethernet, Bluetooth LE or 802.11B/G – eliminating door-to-door programming and audit trail retrieval and network-wide emergency lockdown features
    • Unsurpassed 5-year+ battery life, typical
    • Trilogy Networx and gateway modules have an integral transceiver for highly-efficient 900MHz bidirectional communications
    • In 10 seconds, activate emergency global lockdown from the Networx PC, any Networx lock or Keyfob RR-4BUTTON
    • System-wide free-passage enable or disable
    • Locks support up to 5000 users with 3-6 digit numeric PIN codes and PDL-Series also support prox ID card users
    • On demand, in seconds, wirelessly change users, schedules, lock features or retrieve audit trails of up to 40,000 events/lock from any networked PC
    • Unattended programming updates or event log retrievals can be scheduled, saving manpower and productive time
    • Seamless upgrade path for original Trilogy users – intermix with existing Trilogy standalone lock installations and share the same DL-WINDOWS database
    • Secure 128bit AES PC encryption and proprietary RF-link lock communication encryption
    • Remote System Management – VPN-connection/remote capability for accessing the Networx system and controlling 63 locks on a single gateway to a maximum of 2000 locks with 32 gateways
    • Wireless locks are fully keypad programmable and can be up and functioning before their wireless network is configured – IT departments don’t have to coordinate with physical security or locksmiths
    • Free Alarm Lock DL-WINDOWS software doesn’t require a dedicated computer, special computer network, or costly server software licenses – it simply runs as a secure Microsoft Windows-based application

    Requires a Networx Gateway for remote and wireless Networx features



    Alarm Lock doesn’t make anything second rate, including this new Networx equipped proximity card/pin-activated lock for aluminum narrow-stile doors. If you own or manage a fitness center, storefront, strip mall, or office building, it’s time to stop spending time and money tracking keys, re-keying, and replacing inferior locks with other inferior locks. Invest in this state-of-the-art, keyless entry system, which pays you back each time you avoid a call to the locksmith. Wirelessly access lock features through Trilogy Networx, such as audit trails, scheduling, user management, passage mode, and the 10-second global emergency lockdown, right from your desktop or laptop. This commercial-grade system mounts to your door right from the box by drilling a few extra holes. If you’re comfortable putting a door knob in at your home, you can handle this with ease. The proximity cards (ordered separately at checkout) use a contactless technology – a small antenna resides in the card, and your user simply waives the card near the black proximity reader on the lock to gain access. This innovative design makes it cleaner and more durable than a swipe reader. The PDL1300NW is a must for any business with aluminum frame glass entry doors.

    Requires a Networx Gateway for wireless Networx features

    Basic

    Manufacturer Alarm Lock
    Battery Type 4 AA
    Event Scheduling 500, Automated Unlock/Lock
    Keyway Schlage SC1
    Lock Features Audit Trail, Lockdown, Passage Mode, Remote Control, Temporary Codes, Timed Codes
    Radio Frequency 125 kHz, 900MHz
    Solution Electronic
    Warranty 2 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Reader Type Prox Card/Fob
    RFID
    Access Type Key
    Keypad - Digits
    Proximity Card/Fob
    Locking Device Adams Rite
    Brand Alarm Lock Trilogy
    Trilogy Networx

    Door requirements

    Door Handing Reversible
    Battery Life 5 Years, 65,000 Cycles
    Door Prep Through-Bolt Hole(s)

    Security

    Code Length 3 to 6 Digits
    Code Capacity 5,000
    Key Override Yes
    Timed Entry Allowance 3 to 15 sec.
    Users 5,000
    Wireless Protocol IEEE 802.11b/g
    Wireless Range Up to 328 ft. indoors

    Dimensions

    Door Thickness Minimum 1 3/4 in.
    Backset 1 1/2 in., 1 1/8 in., 31/32 in.
    Dimensions 15 1/4 (H) x 1 5/8 (D) x 2 1/4 (W) in.
    Door Stile Width Minimum 2 in.
    Weight 7 lbs

    TECH SUPPORT FOR ALARM LOCK TRILOGY PRODUCTS*
    *Basic email support only. Additional support time available for a fee.

    You are not comparing apples to apples when shopping for Trilogy locks online.

    GoKeyless is a full service company and backs up its sales support with product and technical support.

    What good is the lock to you when you have to spend countless hours trying to find the answer to something when you could have just contacted the experts.

    In addition to answering technical questions for you — troubleshooting only, does not include training, or programming — our agents are also available for paid training on importing your users, communicating with the lock, establishing your mission critical access schedules, navigating the software, and utilizing all of the features and functions of your new access control system.

    Our virtual support fees start at $70/hour or can be purchased as an annual tiered service.

    Technical Support Hours: M-F 9am-5pm EST
