Trilogy Networx NETWXSTARTER-WIFI

Name: Trilogy Networx NETWXSTARTER-WIFI
Brand: GoKeyless
SKU: NETWXSTARTER-WIFI
Price: 1600.0 USD
Availability: InStock

WiFi Access System-in-a-Box

SKU: NETWXSTARTER-WIFI

$1,600.00

Features
Description
Specifications

GK Care Technical SupportHourly rate for GoKeyless clients only (reg. rate is $115/hour) Read MoreCustom Setup & ProgrammingLet us do the work for you. We get you up and running. Read More

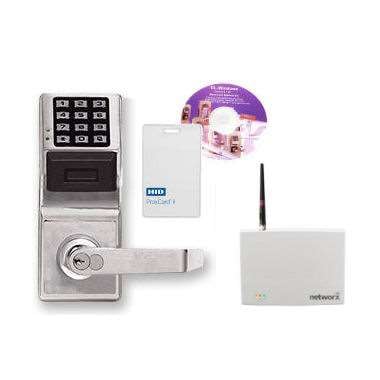

PACKAGE INCLUDES

PDL6100
AL-IM3-80211
30 – HID Prox Cards
DL-Windows Software CD
QR Code to Free Online Training Webinar
Heavy-duty ANSI Grade 1 wireless security
Cylindrical deadlatch locking mechanism
Supports up to 5000 users via 3-6 digit PINs, or HID prox cards
Compatible with any HID 125kHZ prox cards 26-48bit
Execute new network-wide capabilities including emergency priority global lockdown or unlock from any Networx lock, or the network’s PC
Operates on (4) C size batteries, included
Unsurpassed 5-year+ battery life; no supplementary power supplies needed
Manage up to 63 locks per AL-IM2-80211 WiFi gateway, and 2000 locks system wide using gateways and wireless expanders
On demand user, and user group scheduling (500 timed schedule capacity)
On demand audit trail reporting with time/date stamp (Prior 35,000 events)
Offline programming may be done at the PDL6100’s 12-button keypad, or prox card reader
T2, and T3 Trilogy customers who maintain user and door information can continue to use their existing DL-Windows database to seamlessly manage Networx. Add one new Networx lock, or 2000 to existing system
Uninterrupted Door Access Usage: Lock retains all programming and data even in the event of power outage or server offline occurrence
Bi-directional communication using highest level of commercially available encryption (128-bit AES PC)
Remote System Management: Accomplished with VPN/remote capability
1 Button remote release available (sold separately)
Weatherproof for installation in harsh settings
Architectural finish
Key Override: Includes standard 6-Pin cylinder with Schlage SC1 keyway. You may also use other Schlage cylinders, or Corbin-Russwin CL, Sargent 480, ASSA 65-611, & Lori cylinders
2-year manufacturer warranty

Install your very first door with this bundled starter pack from Trilogy. Realize over $300 in savings (if purchased separately) and get up and running quickly as all necessary components for a wireless one door access control system are included in the box. Expandable to 2,000 doors (a lot but we hope you get there!), Networx secures your facility with identification cards and empowers you to act globally, eliminate door-to-door labor, and schedule updates to download automatically to the lock. Less than half the price of a wired system, now in a cost-effective packaged kit from the makers of Trilogy, the #1 access lock in its class.

Basic

Battery Type	C cell
Finish	Satin Chrome
Lock Features Old	Audit Trail, Lockdown, Passage Mode, Remote Control, Scheduling
Radio Frequency	900MHz
Warranty	2 Year Manufacturer

Door requirements

Door Handing	Non-Handed
Battery Life	5 Years
Door Prep	Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s)

Security

Code Length	3 to 6 Digits
Fire Rating	UL 3 hr. Latch
Users	5,000
Wireless Protocol	IEEE 802.11b/g

Dimensions

Door Thickness Minimum	1 5/8 in.
Door Thickness Maximum	1 7/8 in.
Backset	2 3/4 in.
Dimensions	Lock: 8 (H) x 3 1/4 (W) x 1 11/16 (D) in.
Door Stile Width	Minimum 5 in.
Weight	12 lbs
