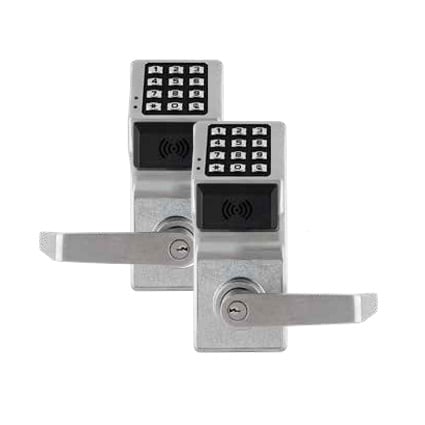

  • Trilogy Networx PDL6300

    Double-Sided Wireless Networking PIN/Prox Lock

    SKU: PDL6300/26D

    Alarm Lock Trilogy and Trilogy Networx



    Save your sneakers! No more keys to manage or door-to-door programming. Heavy-duty Trilogy Networx allows administrators to quickly and wirelessly change users, schedules, lock features and retrieve 40,000 event audit trails from a networked PC. Emergency global lockdown can be deployed in seconds from any Networx lock.

    Quantity left : 3

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $251.69

    Call For Price
    • Double-sided Trilogy lock functionality from two sides of the door – PIN/Prox access logged coming and going
    • Heavy-duty ANSI Grade 1 wireless key card door lock
    • Cylindrical deadlatch locking mechanism
    • Supports up to 5000 users via 3-6 digit PINs, or HID prox cards
    • Compatible with any HID 125kHZ prox cards 26-48bit
    • Execute new network-wide capabilities including emergency priority global lockdown or unlock from any Networx lock, or the network’s PC
    • Operates on (4) C size batteries that are included
    • Unsurpassed 5-year+ battery life; no supplementary power supplies needed
    • Wireless programming requires DL-Windows software (FREE download at Alarmlock.com website) and Networx Gateway (sold separately)
    • Manage up to 63 locks per AL-IME2 gateway, and 2000 locks system wide using gateways and wireless expanders
    • On demand user, and user group scheduling (500 timed schedule capacity)
    • On demand audit trail reporting with time/date stamp (Prior 35,000 events)
    • Offline programming may be done at the PDL6300’s 12-button keypad, or prox card reader
    • T2, and T3 Trilogy customers who maintain user and door information can continue to use their existing DL-Windows database to seamlessly manage Networx.  Add one new Networx lock, or 2000 to existing system
    • Uninterrupted Door Access Usage:  Lock retains all programming and data even in the event of power outage or server offline occurrence
    • Bi-directional communication using highest level of commercially available encryption (128-bit AES PC)
    • Remote System Management:  Accomplished with VPN/remote capability
    • Weatherproof for installation in harsh settings
    • Architectural finish
    • Key Override:  Includes standard 6-Pin cylinder with Schlage SC1 keyway.  You may also use other Schlage cylinders, or Corbin-Russwin CL, Sargent 480, ASSA 65-611, & Lori cylinders
    • Field reversible handing
    • Door Thickness:  1 5/8″ to 1 7/8″
    • Backset:  2 3/4″ provided (2 3/8″ sold separately at checkout)
    • 2-year manufacturer warranty

    GoKeyless™ is a factory trained and authorized Alarm Lock Trilogy Networx dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

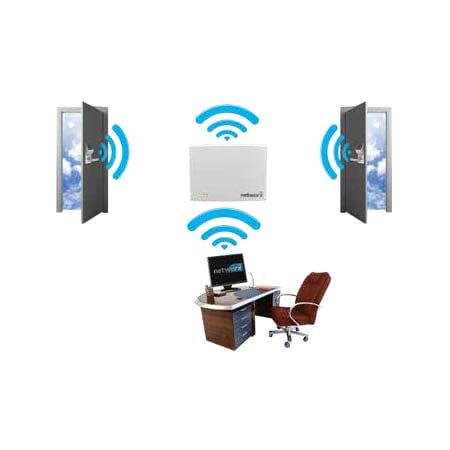

    No need to even get the IT department involved with Trilogy Networx.  As easy to setup as installing a cordless telephone, both small businesses and multi-location companies find Trilogy Networx perfect for capitalizing on the benefits from online access control.  Trilogy Networx eliminates signing keys in and out, maintaining key inventories, and worrying about unaccounted keys. The Networx PDL6100 delivers high-level protection, improved oversight, and maximum value at a minimum cost.  Building on the platinum-plated reputation of the Trilogy T2, and T3 access control locks, Trilogy Networx introduces advanced, performance driven security and convenience in a stand-alone, affordable keyless entry system to help you eradicate the security hazards posed by door keys.  With a few clicks, Networx lets you manage your site’s doors and users centrally from one computer.  Physically maneuvering from door to door to delete an employee’s credential, lockout all users, and pull an audit trail gets eliminated – you can do it in near real-time (under 10 seconds) at your PC.  Requiring NO wiring, NO splitters/repeaters, NO hardwiring to host/server, NO extra power supplies, and NO controllers/panels, Trilogy Networx locks and gateway modules contain an integral receiver for super-efficient 900MHz bi-directional communications.  The result?  Longer range, and less interference.  This provides you a comprehensive online access control system without the need for wiring out to doors, or channeling wire through doors to electrify the opening.  Beyond the evident time saving features of having mainstream access control functionality through a few strokes on your keyboard, you can do never before things with Networx.  In the event of a security breach, or environmental emergency, this access control system lets you execute a network wide lockdown/unlock command so you can track and control who gets access and where.  Life-saving technology such as this can mean the difference between a total disaster or an averted one.

    Hospitals, Institutions, Restaurants, Movie Theaters, Airports, Retail, Offices, Pharmacies, and more!

    Basic

    Manufacturer Alarm Lock
    ANSI Rating Grade 1 (Best)
    Battery Type C cell
    Finish Satin Chrome
    Lock Features Old Audit Trail, Lockdown, Passage Mode, Remote Control, Scheduling
    Radio Frequency 900MHz
    Solution Electronic
    Warranty 2 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits
    Proximity Card/Fob
    Locking Device Cylindrical Latch
    Brand Alarm Lock Trilogy
    Trilogy Networx

    Door requirements

    Door Handing Non-Handed
    Battery Life 5 Years
    Door Prep Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s)

    Security

    Code Length 3 to 6 Digits
    Fire Rating UL 3 hr. Latch
    Users 5,000
    Wireless Protocol IEEE 802.11b/g
    Wireless Range Up to 328 ft. indoors

    Dimensions

    Exterior Dimensions 8 (H) x 3 1/4 (W) x 1 11/16 (D) in.
    Door Thickness Minimum 1 5/8 in.
    Door Thickness Maximum 1 7/8 in.
    Backset 2 3/4 in.
    Door Stile Width Minimum 5 in.
    Exterior Dimensions 8 (H) x 3 1/4 (W) x 1 11/16 (D) in.

    TECH SUPPORT FOR ALARM LOCK TRILOGY PRODUCTS*
    *Basic email support only. Additional support time available for a fee.

    You are not comparing apples to apples when shopping for Trilogy locks online.

    GoKeyless is a full service company and backs up its sales support with product and technical support.

    What good is the lock to you when you have to spend countless hours trying to find the answer to something when you could have just contacted the experts.

    In addition to answering technical questions for you — troubleshooting only, does not include training, or programming — our agents are also available for paid training on importing your users, communicating with the lock, establishing your mission critical access schedules, navigating the software, and utilizing all of the features and functions of your new access control system.

    Our virtual support fees start at $70/hour or can be purchased as an annual tiered service.

    Technical Support Hours: M-F 9am-5pm EST
