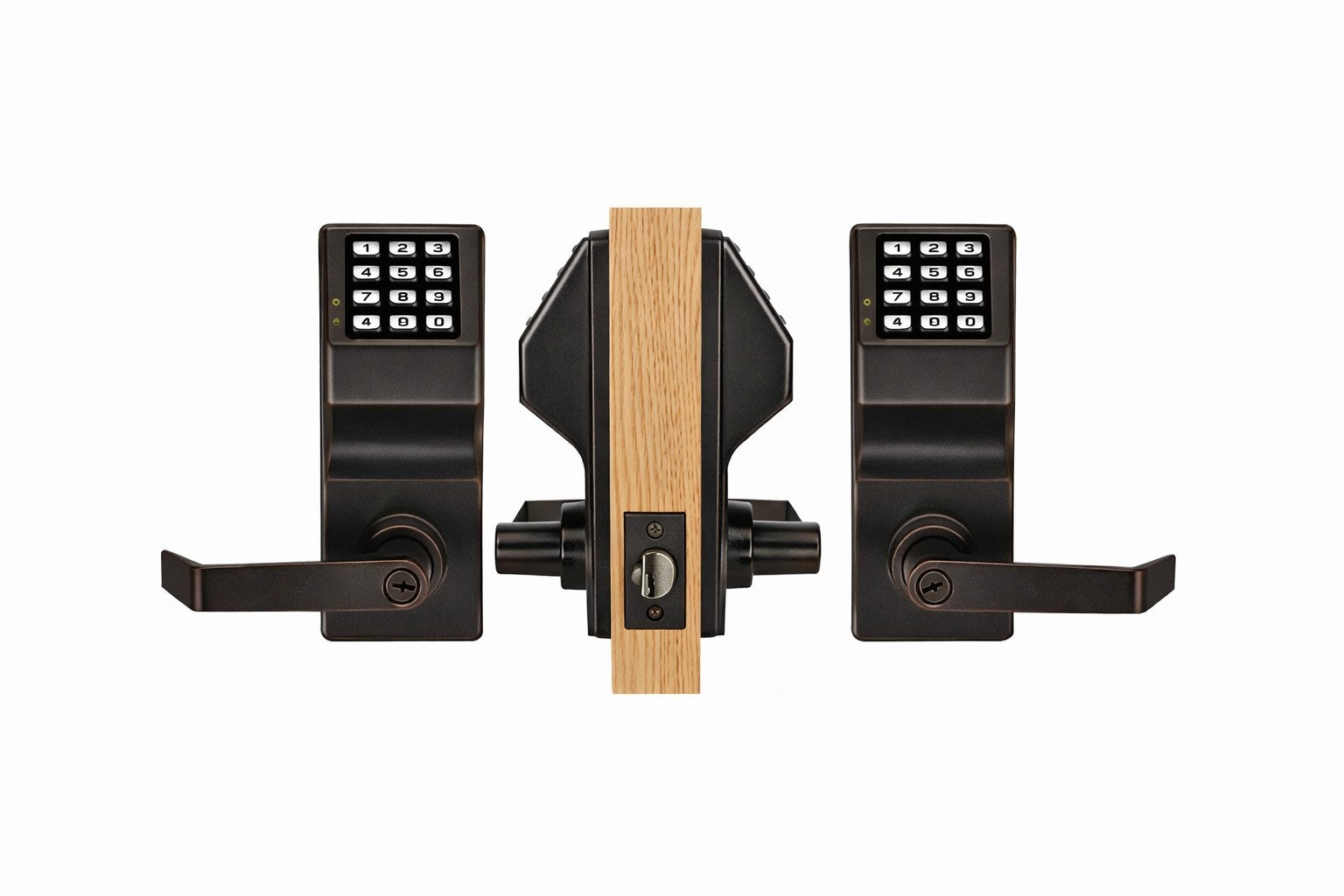

    Rugged Double-Sided Electronic Digital Lock

    SKU: DL5200/26D

    Alarm Lock Trilogy



    The Trilogy DL5200 offers keyless, dual-sided access control, accommodating multiple users. Replace keys with codes and manage users directly at the door. Ideal for gates and openings requiring two-sided access control to deter theft and ensure doors remain secure.

    Finish

    Quantity left : 3

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $209.05

    Norton Shopping Guarantee

    GK Care Technical Support Hourly rate for GoKeyless clients only (reg. rate is $115/hour) Read More

    Custom Setup & Programming Let us do the work for you. We get you up and running. Read More

    • Heavy Duty, BHMA Grade 1 lock with UL 3 hr. fire rated cylindrical latch
    • Keypad programming at lock (on primary side of door)
    • Program users to have access through both sides of the door or only one side
    • Vandal-resistant construction with an all metal keypad.  Rugged clutch mechanism insures long life & durability
    • Choose from two architectural finishes
    • Weatherproof performance
    • Accommodates 100 users with PIN codes of 3-5 digits in length.  Millions of possible codes.  Program in  Master, Manager (up to 10), User, and up to 3 one-time use codes
    • Individual, group, or total user lockout codes
    • 2 wire remote capability (i.e., secretary desk button) – remote release button and wiring not included.  We have a reliable desk release button here
    • Easy to install.  Retrofits cylindrical locksets
    • Battery operation:  5 AA’s; appx. 80,000 cycles; low battery alerts; lock may be hard-wired with 9VDC or 9VAC power supply for remote release / battery backup
    • Visual and audible entry and egress indicators
    • Commercial 2 3/4″ backset, included. 2 3/8″ available at checkout.  How do I measure?
    • Key override on primary door side (mirror key cylinder also provided on secondary side, however it is used solely to gain access to battery compartment); includes standard cylinder with a 6-Pin, solid brass, Schlage SC1 keyway.  You may also use other Schlage cylinders, or Corbin-Russwin CL, Sargent 480, ASSA 65-611, & Lori cylinders.
    • 2-year manufacturer warranty

    GoKeyless™ is a factory trained and authorized Alarm Lock Trilogy dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Deter theft and ensure doors are always locked with the new Trilogy DL5200 double-sided electronic lock by Alarm Lock.  It is ironman tough, and capable of accommodating multiple users.  You will use it on gates, and openings where you need to control access on both sides of the door, such as jetways and police interrogation rooms.  This powerful electronic door lock lets you issue codes instead of keys.  You will even be able to delete users from the door in seconds.  A new electronic smart lock like the DL5200 is also a strong first-line-of-defense against private, or sensitive information being stolen or compromised.  Since user’s don’t have to worry about locating and taking their keys with them each time they leave, the likelihood of doors being left open or propped open is virtually eliminated.  If you add up the time spent issuing and tracking keys, and the expense of re-keying and changing out locks, not to mention liability costs, you will see the Trilogy DL5200 quickly pays for itself.

    Perfect for community pool gates, courtyard gates, airport jet bridge doors, communicating doors, interrogation rooms, psych and Alzheimer areas, and more!

    Basic

    Manufacturer Alarm Lock
    Battery Type AA
    BHMA Rating Grade 1 (Best)
    Keyway Schlage C
    Lock Features Double-Sided, Passage Mode
    Solution Electronic
    Warranty 2 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits
    Locking Device Cylindrical Latch
    Brand Alarm Lock Trilogy

    Door requirements

    Door Handing Non-Handed
    Battery Life 80,000 Cycles
    Door Prep Standard 2 1/8 in. Cross-Bore|Edge Bore: 1 in.|Through-Bolt Hole(s)

    Security

    Code Length 3 to 6 Digits
    Code Capacity 100
    Fire Rating UL 3 hr. latch

    Dimensions

    Exterior Dimensions 8 (H) x 3 1/4 (W) x 1 7/8 (D) in.
    Inside Dimensions ["8 (H) x 3 1/4 (W) x 1 7/8 (D) in."]
    Door Thickness Minimum 1 5/8 in.
    Door Thickness Maximum 1 7/8 in.
    Backset 2 3/4 in.
    Door Stile Width Minimum 4 1/2 in.
    Exterior Dimensions 8 (H) x 3 1/4 (W) x 1 7/8 (D) in.
    Weight 9 lbs
