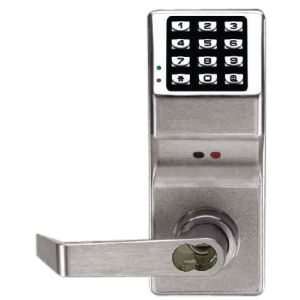

Trilogy T3 DL3200IC

Name: Trilogy T3 DL3200IC
Brand: GoKeyless
SKU: DL3275IC/10B-S
Price: 612.25 USD
Availability: InStock

Industrial Electronic Keypad Lock

SKU: DL3275IC/10B-S

Alarm Lock Trilogy

The Trilogy T3 DL3200IC shifts your access control into high gear with keyless, always locked, never locked out security. Managing the lock is done at the keypad, or by using software on your laptop or desktop PC. Rich functionality like timed access, entry tracking, and quickly managing users will play a vital role in keeping your organization operating at peak performance.

Prepped for IC core, including Best and equivalents, Yale, Medeco, Corbin, Schlage, and Sargent.

$1,351.00 $612.25 SAVE 55%

Features
Description
Specifications
Trilogy Support

Heavy Duty, BHMA Grade 1 lock with UL 3 hr. fire rated cylindrical latch
Weather rated to endure the elements
Support for 2000 users with 3-6 digit PIN codes, including: Master, Manager, Supervisor and Basic Users (Is 2000 user capacity overkill? Save money with DL2700IC – supports 100 users)
Vandal-resistant construction with an all metal 12-button keypad. Rugged clutch mechanism insures long life & durability
Programming from keypad / software
Battery Powered; 5 AA included, low battery alerts; lock may be hard-wired with 9VDC or 9VAC power supply for remote release / battery backup
500 Timed Schedule capacity, including 4 “quick schedules” for programming the 4 most common time schedules in one step
First manager in scheduling – solves the snow day issue for schools (“First Person In” stops unauthorized persons from gaining access to doors set on timed auto-unlock)
WeatherPROOF performance
Choose from popular architectural finishes
Times entry allowance from 5-15 seconds
Greater security with “Temporary Keypad Lockout” after 3 unsuccessful code-entry attempts
Audit Trail with Time/Date Stamp for a printable record of all electronic activity
Real-time clock allows logging of events to within 1 second of accuracy
Relay may be programmed to energize when one or more selected events occur
4 Time-out functions allow a user to enable other users or unlock the lock for some time period without needing to return to the lock
40,000 Event audit trail record storage
New! Remote Release Kit for ‘Buzz-In’
Easy to install. Retrofits most cylindrical locksets and digital locks
2-3/4″ Commercial backset included (2 3/8″ available at checkout) How do I measure?
Key override: Prepped for IC Core, including Best and Equivalents, Yale, Medeco, Corbin, Schlage, and Sargent. Best and Schlage IC locks generally ship same day, others may be subject to a lead time. IC cores must be purchased separately at checkout. You may use your own IC cores when you have them
Warranty: 2 year manufacturer

Secure with confidence and stay ahead of theft and safety liabilities with this powerful high capacity door lock by Alarm Lock. Keyless, always locked, never locked out security, rich functionality like timed lock/unlock, entry tracking, and the ability to quickly add and delete users are a few of the extraordinary features found in the DL3200.

Managing the lock is done by fingertip at the lock’s keypad, or by using software on your laptop or desktop PC. When using your laptop you need the computer connecting cables. (sold separately at checkout) A copy of the software CD is included with purchase of cables. When you want to use your desktop PC, be sure to order the DTM-III hand held programming module. (DTM-III requires computer connecting cables)

The software is where you can establish your access schedules, and review who entered and when. Need to establish access privileges? Done. Simply use the built-in multi-level programming functions to create your group or individual user codes, master and management codes, passage codes, and emergency or service codes.

This T3 electronic lock will play a vital role in keeping your organization operating at peak performance. “What about installing it, is it easy?” Glad you asked! It is, you can put it in yourself in the same amount of time it takes you to get through your morning email.

Hospitals, Schools, Restaurants, Movie Theaters, Airports, Retail, Offices, Pharmacies, Gates

Basic

Manufacturer	Alarm Lock
Battery Type	AA
BHMA Rating	Grade 1 (Best)
Event Scheduling	500, Automated Unlock/Lock
Lock Features	Audit Trail, Passage Mode, Scheduling, Timed Codes
Solution	Electronic
Warranty	2 Year Manufacturer
Handle Type	Lever Handle Door Locks
Access Type	Key Keypad - Digits
Locking Device	Cylindrical Latch
Brand	Alarm Lock Trilogy

Door requirements

Door Handing	Non-Handed
Battery Life	80,000 Cycles
Door Prep	Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s)

Security

Code Length	3 to 6 Digits
Code Capacity	2,000
Fire Rating	UL 3 hr. latch

Dimensions

Exterior Dimensions	8 (H) x 3 1/4 (W) x 1 7/8 (D) in.
Inside Dimensions	["8 1/4 (H) x 3 1/4 (W) x 1 11/16 (D) in."]
Door Thickness Minimum	1 5/8 in.
Door Thickness Maximum	1 7/8 in.
Backset	2 3/4 in.
Door Stile Width	Minimum 4 1/2 in.
Exterior Dimensions	8 (H) x 3 1/4 (W) x 1 7/8 (D) in.
Weight	10 lbs

TECH SUPPORT FOR ALARM LOCK TRILOGY PRODUCTS*
*Basic email support only. Additional support time available for a fee.

You are not comparing apples to apples when shopping for Trilogy locks online.

GoKeyless is a full service company and backs up its sales support with product and technical support.

What good is the lock to you when you have to spend countless hours trying to find the answer to something when you could have just contacted the experts.

In addition to answering technical questions for you — troubleshooting only, does not include training, or programming — our agents are also available for paid training on importing your users, communicating with the lock, establishing your mission critical access schedules, navigating the software, and utilizing all of the features and functions of your new access control system.

Our virtual support fees start at $70/hour or can be purchased as an annual tiered service.

Technical Support Hours: M-F 9am-5pm EST
