Trilogy DL1300ET

GK Care Technical Support Hourly rate for GoKeyless clients only (reg. rate is $115/hour) Read More

Custom Setup & Programming Let us do the work for you. We get you up and running. Read More

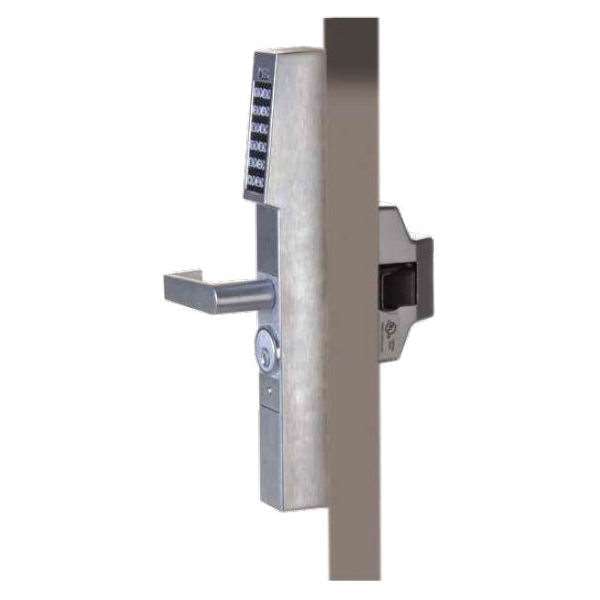

• Wire-free, heavy-duty electronic lock for narrow stile aluminum exit doors
• Retrofits traditional keyed-in aluminum glass panic exit doors

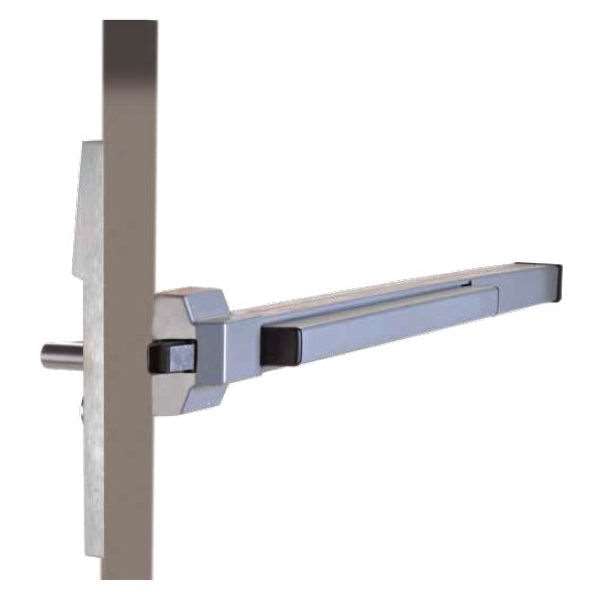

• Exit Device Compatibility:  Jackson 1095 (must use DL1325, DL1350), Von Duprin 33, Dorma 5300, Arrow S4803, DCI 1200, DCI 1300, & Corbin ED7000, ED4000. (NOTE: With Von Duprin devices, the DL/PDL1200/1300ET only works on a RHR door. On a LHR door the lever must be lifted for it to operate.  Dor-O-Matic, Jackson and Dorma devices require thumb-turn or knob) (You may use your own bar, or purchase one from us at checkout – we offer the Von Duprin 33 and Arrow S4803 models for narrow stile doors)
• Sold as outside trim only. (Panic bar not included)
• Must purchase separate TP assembly; compatible tailpiece that connects the DL1300ET to your existing bar.  (Order TP Kit separately at checkout)
• Field proven familiar Trilogy name
• 2000 user capacity
• Program at lock, or using Windows PC based software
• Real-time clock lets you scheduled up to 500 timed events, including Holiday schedules.  Program lock to auto lock at certain times, or auto-unlock.  Program times when certain users or groups of users can gain access
• Multi-level user setup:  Master, Manager, Supervisor and Basic Users
• Program one-time entry codes, quick passage mode, passage mode, emergency and service codes, and lockout codes
• WeatherPROOF performance
• 3-15 seconds allowable entry time, user defineable – how long user has once they enter pin before door relocks behind them
• Greater security with “Temporary Keypad Lockout” after 3 unsuccessful code-entry attempts
• Audit Trail with Time/Date Stamp for a printable record of all electronic activity – use the DTM hand held or a laptop computer to download audit trail data from lock (PC and DTM interface cables required – available at checkout)
• Real-time clock allows logging of events to within 1 second of accuracy
• Simple do-it-yourself installation; instructions included
• Long battery life; uses 2 standard off the shelf lithium 3V batteries, included
• Visual and audible low battery alerts
• Key override; includes a 1 3/8″ long mortise cylinder from the manufacturer and 2 keys.  All mortise cylinders are interchangeable so if you have a name brand one you want to use you can, or we sell name brand ones.  Please call us at (877) 439-5377 for custom cylinder orders
• 2-year manufacturer warranty
