dormakaba Simplex L1041R

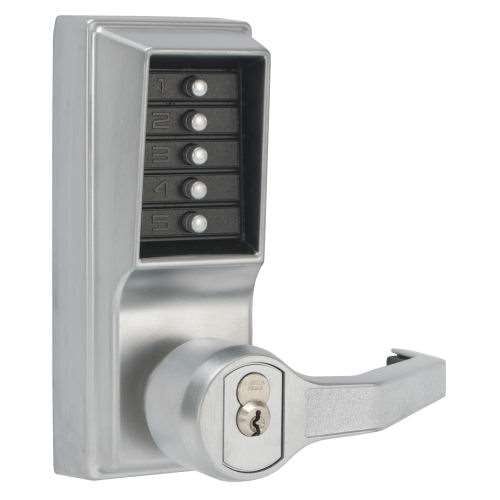

Pushbutton Lock with Passage - Sargent IC Core
SKU: LL1041R-26D-SC
$1,002.00 $571.04 SAVE 43%
Simplex L1041R - Combination Entry with Key Override & Passage (Sargent IC core included) Tough-as-nails combination lock from the leader in top of the line security solutions, Kaba Ilco. Kaba has been making high quality security products for over 100 years. The Simplex L1000 Series is a 3-hour UL/ULC fire rated stand-alone security lock that is highly weather resistant and certified for durability, as it complies with D.O.D (Dept. of Defense) 5220.22M. Entry is gained via a 1 to 5 digit code that is sequential. Vandal resitant, the Simplex locks have found widespread acceptance in high-traffic commercial, institutional, and government buildings.
Basic
| Manufacturer | dormakaba USA Inc. |
|---|---|
| Lock Features | Passage Mode |
| Solution | Mechanical |
| Warranty | 3 Year Manufacturer |
| Handle Type | Lever Handle Door Locks |
| Access Type | Key Keypad - Digits |
| Locking Device | Cylindrical Latch |
| Brand | dormakaba Simplex |
Door requirements
| Door Prep | Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s) |
|---|
Security
| Code Length | 1 to 5 Digits |
|---|---|
| Code Capacity | 1 |
| Fire Rating | 3-hour UL/ULC fire rating for A labeled doors |
Dimensions
| Exterior Dimensions | 7 3/8 (H) x 3 1/8 (W) x 3 3/16 (D) in. |
|---|---|
| Inside Dimensions | ["9 (H) x 3 1/4 (W) in."] |
| Door Thickness Minimum | 1 3/8 in. |
| Door Thickness Maximum | 2 1/4 in. |
| Backset | 2 3/4 in. |
| Door Stile Width | Minimum 5 in. |
| Exterior Dimensions | 7 3/8 (H) x 3 1/8 (W) x 3 3/16 (D) in. |
| Weight | 8.25 lbs |
