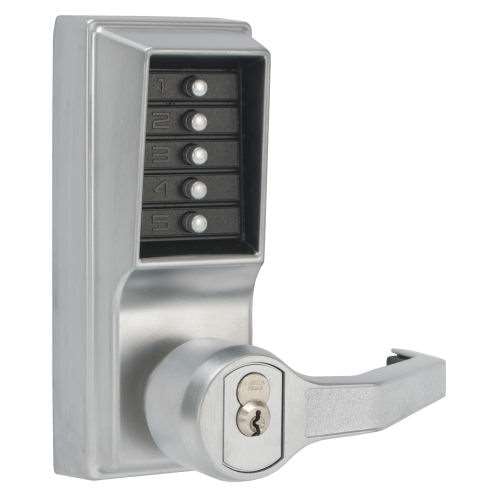

dormakaba Simplex L1041M

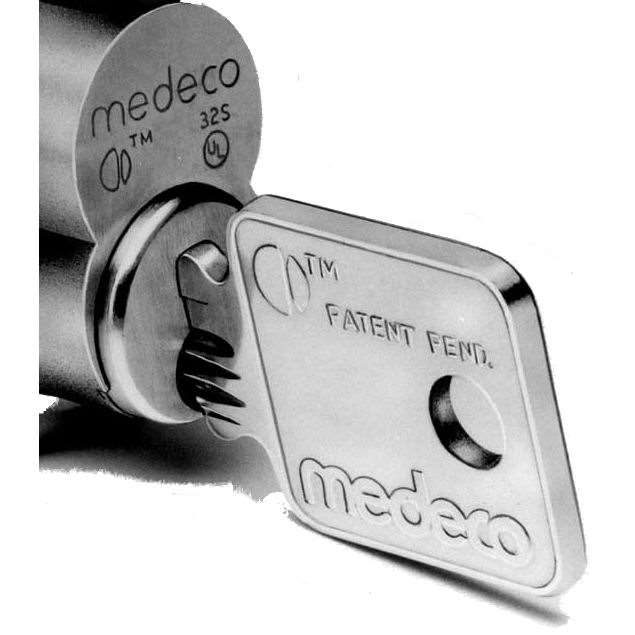

Pushbutton Lock with Passage - Medeco IC Core
SKU: LL1041M-26D-MC
Kaba Simplex
$675.59 - $699.60
Simplex L1041M - Combination Entry with Key Override & Passage (Medeco IC core included) Tough-as-nails combination lock from the leader in top of the line security solutions, Kaba Ilco. Kaba has been making high quality security products for over 100 years. The Simplex L1000 Series is a 3-hour UL/ULC fire rated stand-alone security lock that is highly weather resistant and certified for durability, as it complies with D.O.D (Dept. of Defense) 5220.22M. Entry is gained via a 1 to 5 digit code that is sequential. Vandal resitant, the Simplex locks have found widespread acceptance in high-traffic commercial, institutional, and government buildings.
GoKeyless™ is a factory trained and authorized dormakaba Simplex® dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.
Basic
| Manufacturer | dormakaba USA Inc. |
|---|---|
| Lock Features Old | Passage Mode |
| Solution | Mechanical |
| Warranty | 3 Year Manufacturer |
| Handle Type | Lever Handle Door Locks |
| Access Type | Key Keypad - Digits |
| Locking Device | Cylindrical Latch |
| Brand | Kaba Simplex |
Door requirements
| Door Prep | Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s) |
|---|
Security
| Code Length | 1 to 5 Digits |
|---|---|
| Code Capacity | 1 |
| Fire Rating | 3-hour UL/ULC fire rating for A labeled doors |
Dimensions
| Exterior Dimensions | 7 3/8 (H) x 3 1/8 (W) x 3 3/16 (D) in. |
|---|---|
| Inside Dimensions | ["9 (H) x 3 1/4 (W) in."] |
| Door Thickness Minimum | 1 3/8 in. |
| Door Thickness Maximum | 2 1/4 in. |
| Backset | 2 3/4 in. |
| Door Stile Width | Minimum 5 in. |
| Exterior Dimensions | 7 3/8 (H) x 3 1/8 (W) x 3 3/16 (D) in. |
| Weight | 8.25 lbs |
