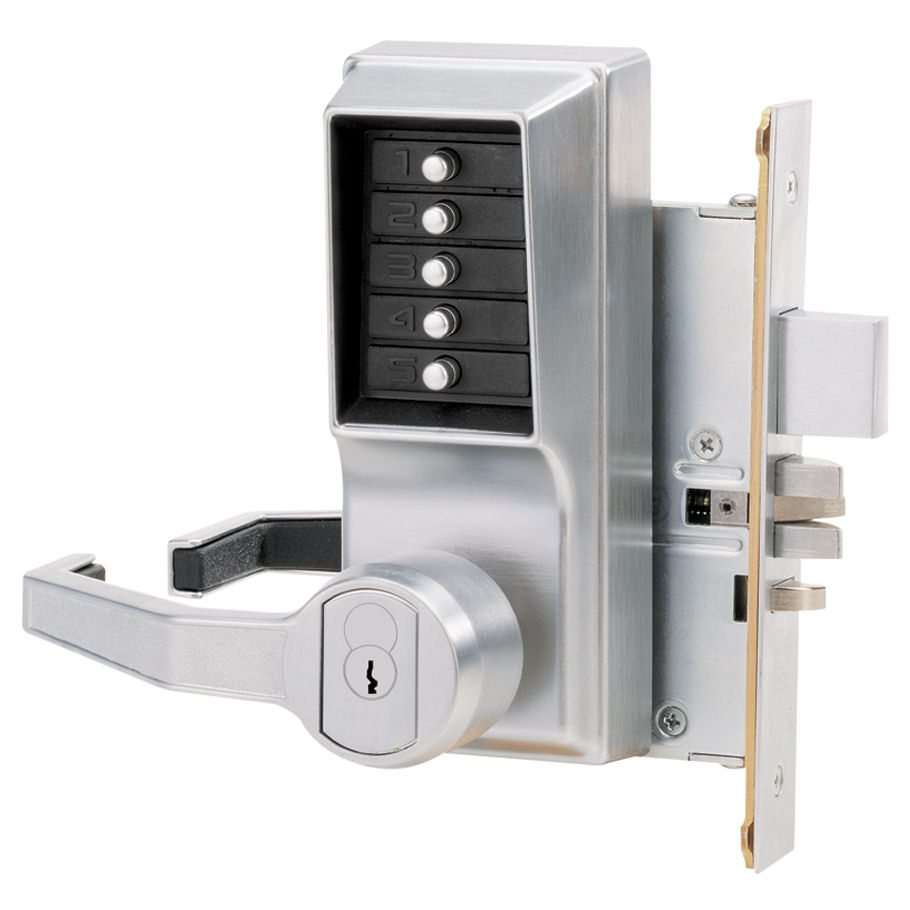

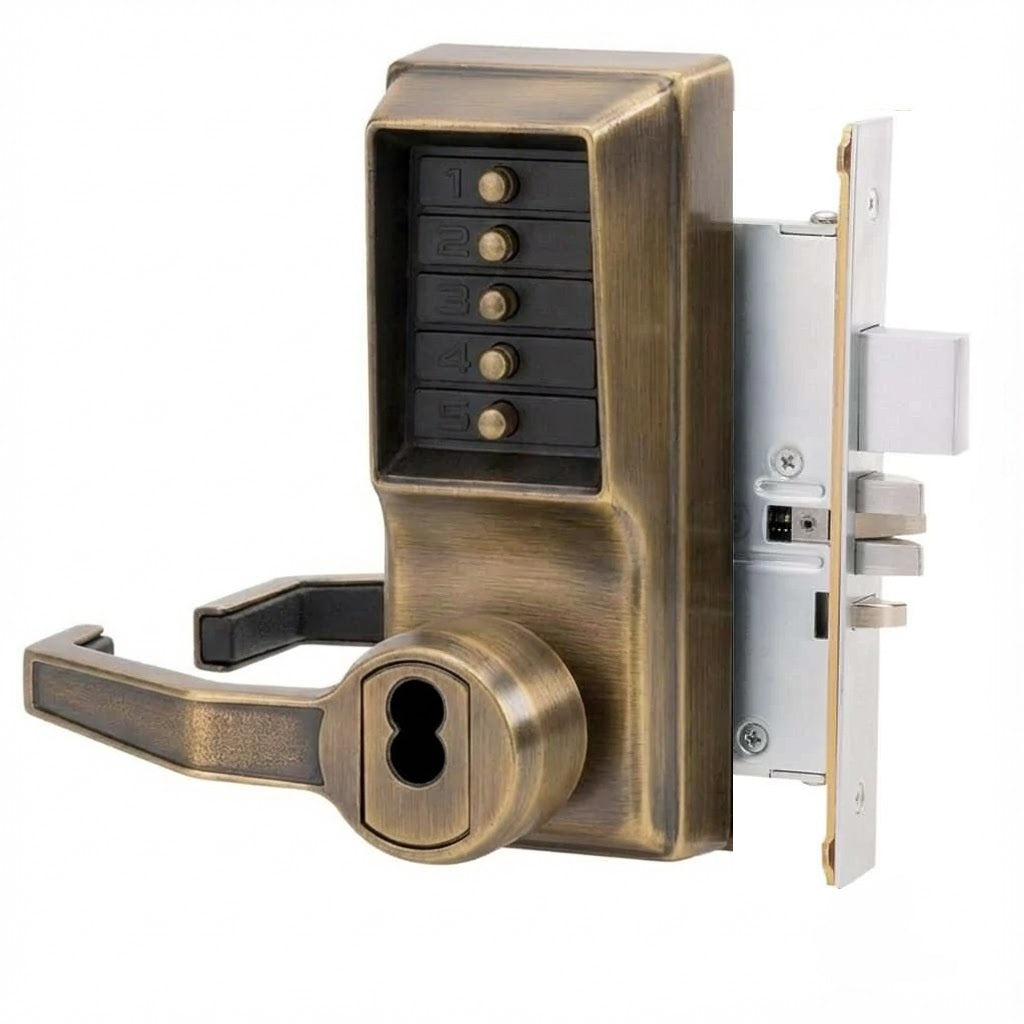

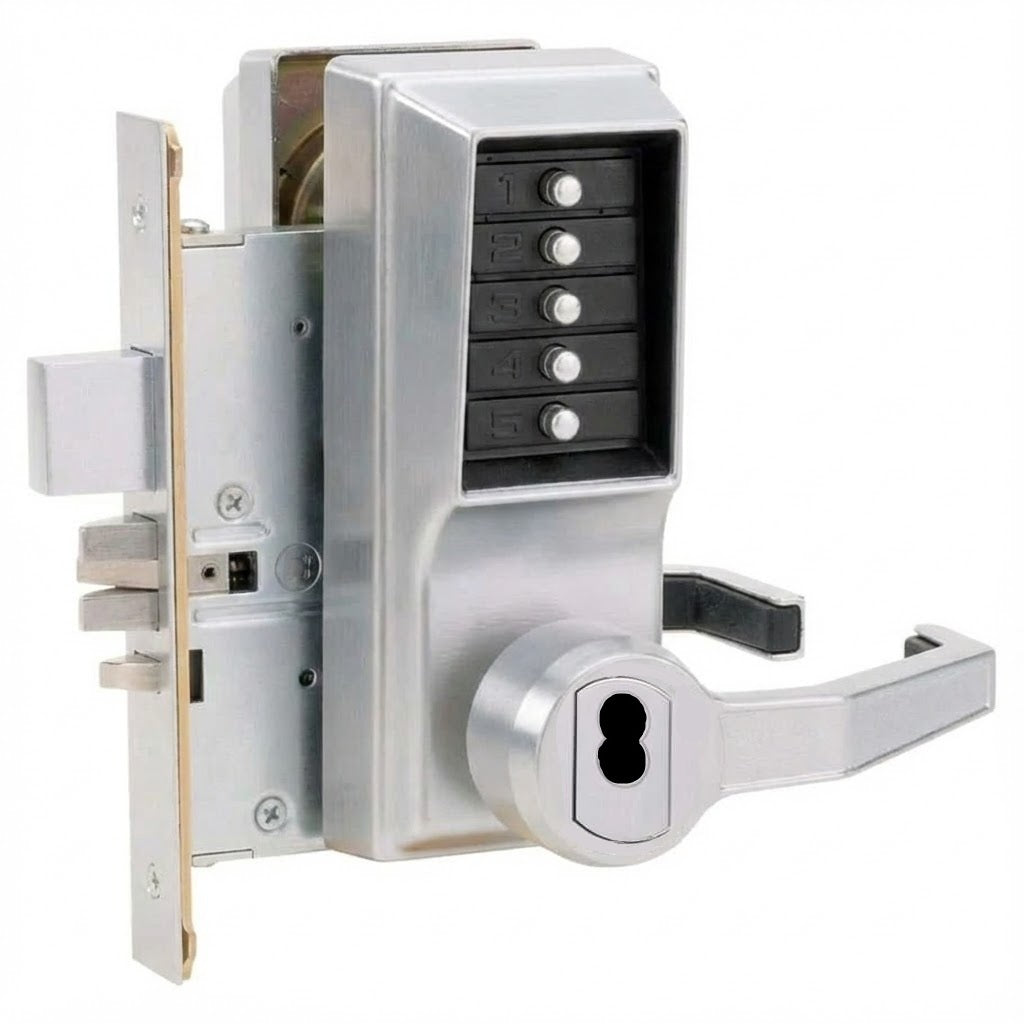

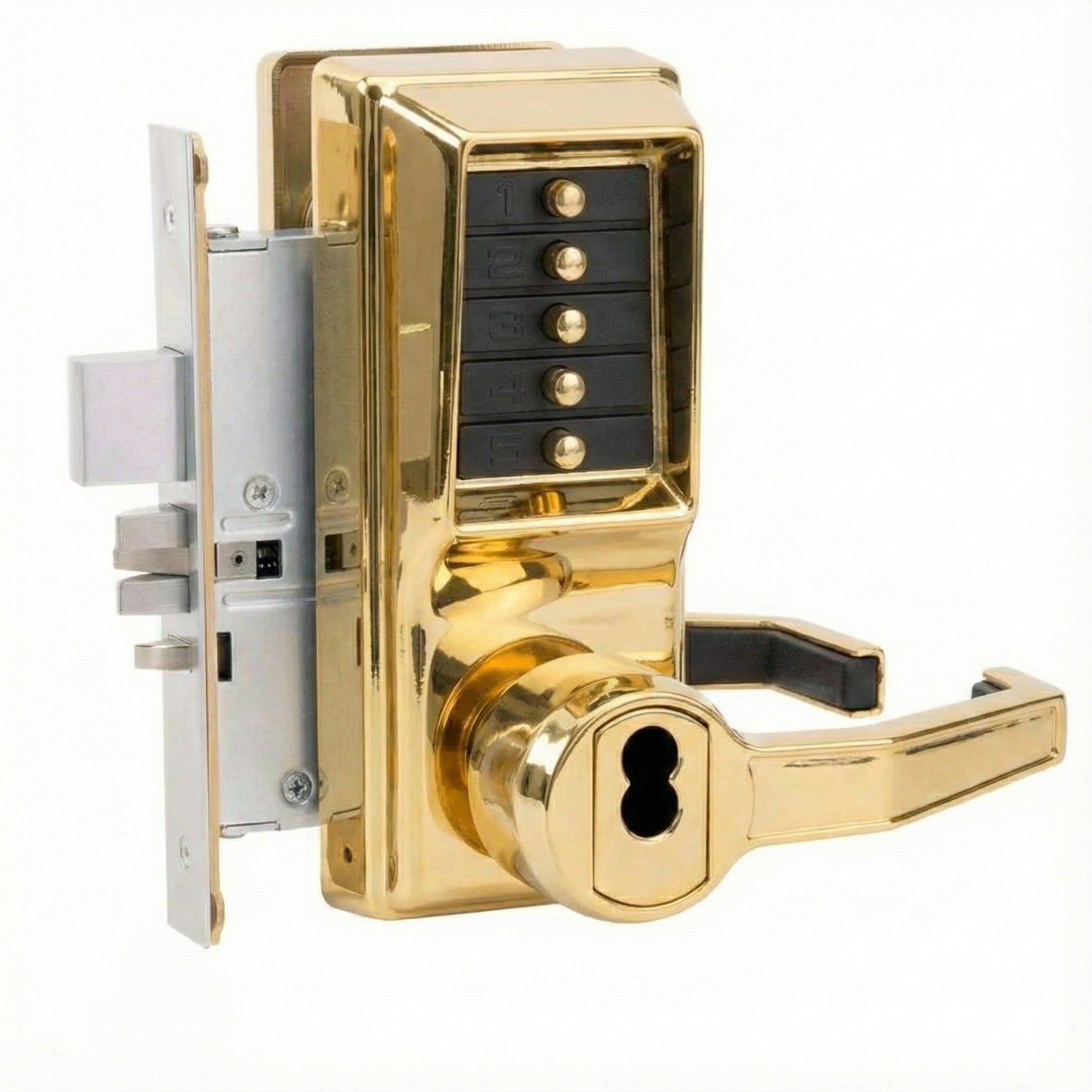

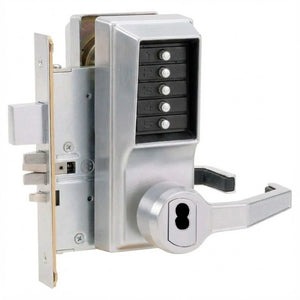

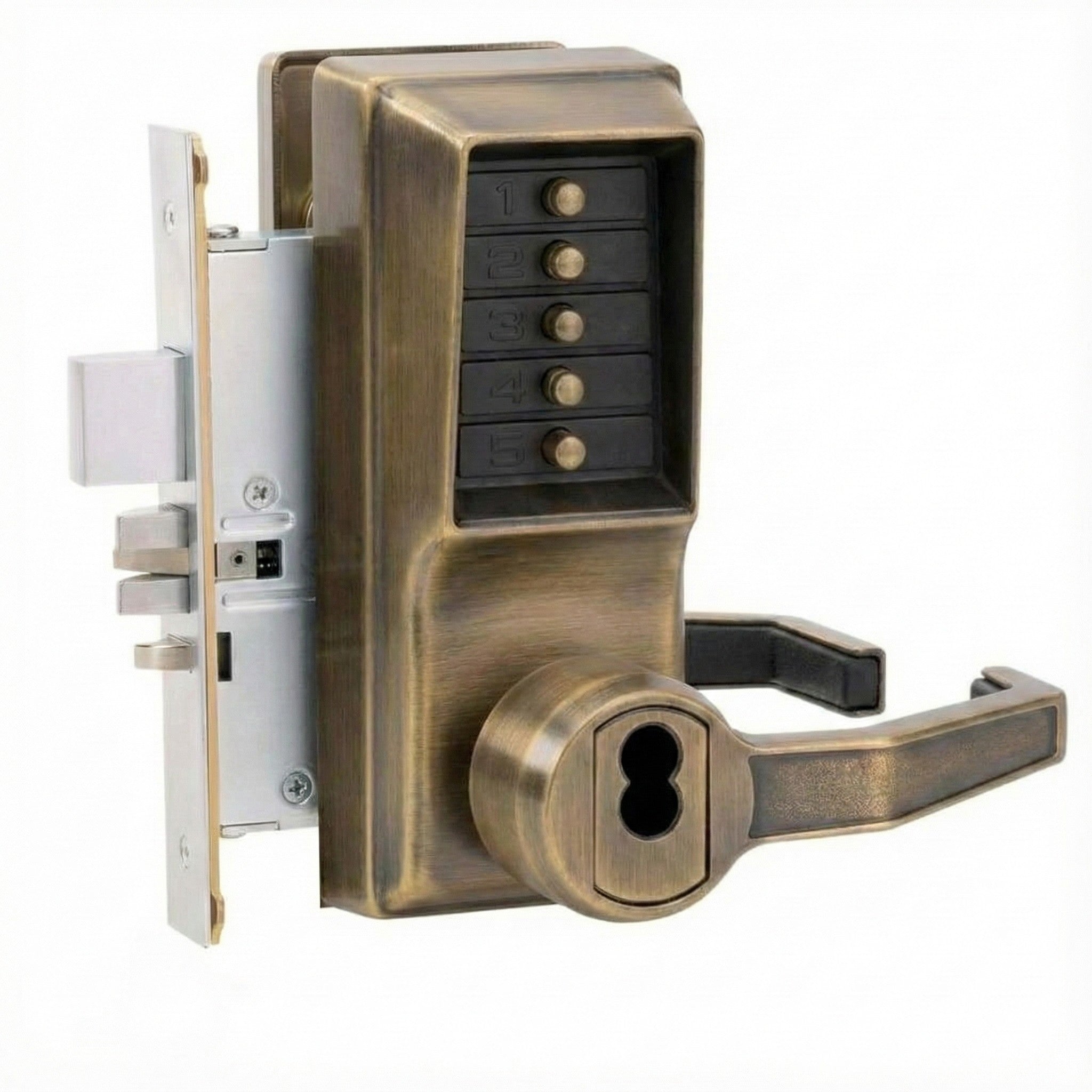

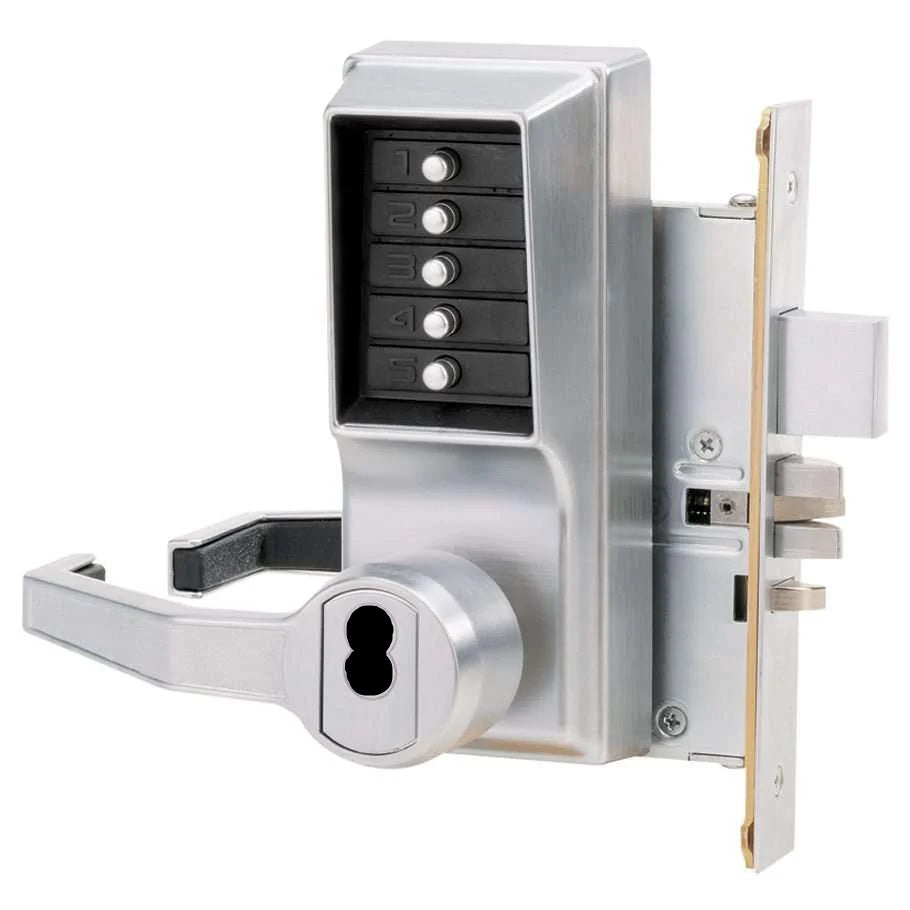

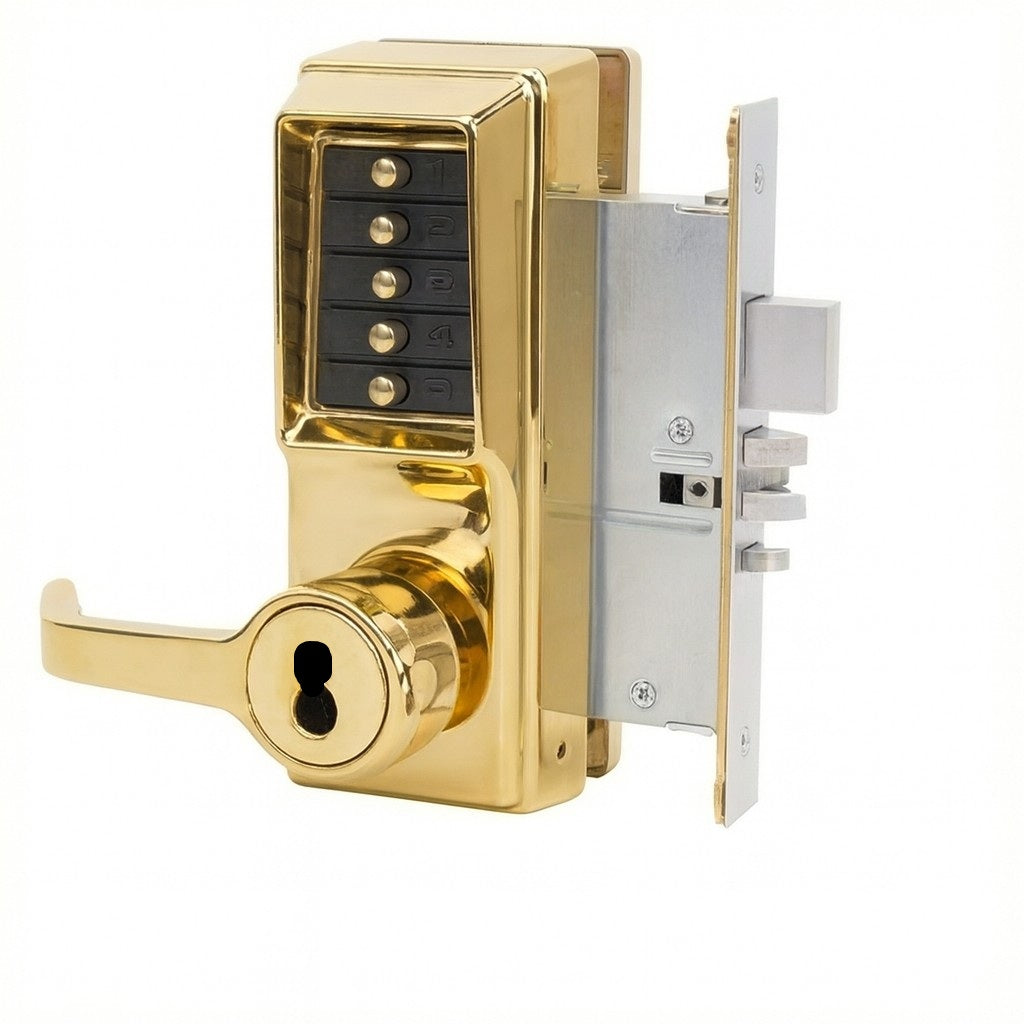

    Simplex 8148

    Mechanical Pushbutton Mortise Lock w/ Deadbolt

    SKU: L8148C-3

    Simplex



    Door Handing
    Finish
    Key Override

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $158.40

    Call For Price
    • ADA compliant mortise lock with manual deadbolt
    • 100% Mechanical push button mortise lock
    • Thousands of possible codes combinations
    • Auto-locking with passage mode and lockout feature – activated from inside
    • Covers existing standard 86 mortise preps – mortise locking mechanism is 1 1/4″ wide by 8″ tall
    • Lock mechanism is two-piece 3/4″ latch with a 1″ deadbolt
    • Fits left and right swinging doors
    • All hardware and instructions included with order
    • Low maintenance, no batteries or wires
    • Fits nearly all hinged doors
    • Key override feature using an IC core – cores sold separately at checkout
    • Warranty:  1-year manufacturer

    GoKeyless™ is a factory trained and authorized Kaba Simplex® dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Simplex 8148 Combination Entry & Key Override (Less core - key cores sold separately at checkout) Tough-as-nails combination mortise lock with 1" deadbolt from the leader in top of the line security solutions, dormakaba.  dormakaba has been making high quality security products for over 100 years.  The Simplex 8100 Series is a fully mechanical pushbutton lock designed to retrofit standardmortise setups.  The 8100 is highly weather resistant and simple to operate.  Entry is gained via a 1 to 5 digit code that is sequential.  Vandal resistant, the Simplex combination locks have found widespread acceptance in high-traffic commercial, institutional, and government buildings.

    GoKeyless™ is a factory trained and authorized dormakaba Simplex® dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Basic

    Finish Satin Chrome, Bright Brass, Antique Brass
    Lock Features Old Passage Mode
    Warranty 3 Year Manufacturer
    Brand Simplex

    Door requirements

    Security

    Code Length 1 to 5 Digits
    Code Capacity 1
    Fire Rating 3-hour UL/ULC fire rating for A labeled doors
    Key Override Best IC, Corbin IC, Medeco/Yale IC, Sargent IC, Schlage IC

    Dimensions

    Door Thickness Minimum 1 3/8 in.
    Door Thickness Maximum 2 1/4 in.
    Dimensions 7 3/8 (H) x 3 1/8 (W) x 3 3/16 (D) in.
    Door Stile Width Minimum 5 in.
    Height 4
    Weight 9.8 lbs
