  • dormakaba Simplex 5021

    Extra Heavy-Duty Combination Door Lock

    SKU: 5021XSWL26D41

    dormakaba Simplex



    Keep it simple. The Simplex 5021 hits the top of the charts for security and reliability with easy keyless access. This heavy duty and fully mechanical keyless lock reduces the costs and problems associated with electronic maintenance, managing keys, and labor.

    Finish

    In Stock

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $94.28

    Call For Price
    • ADA compliant lock
    • 100% mechanical push-button lock

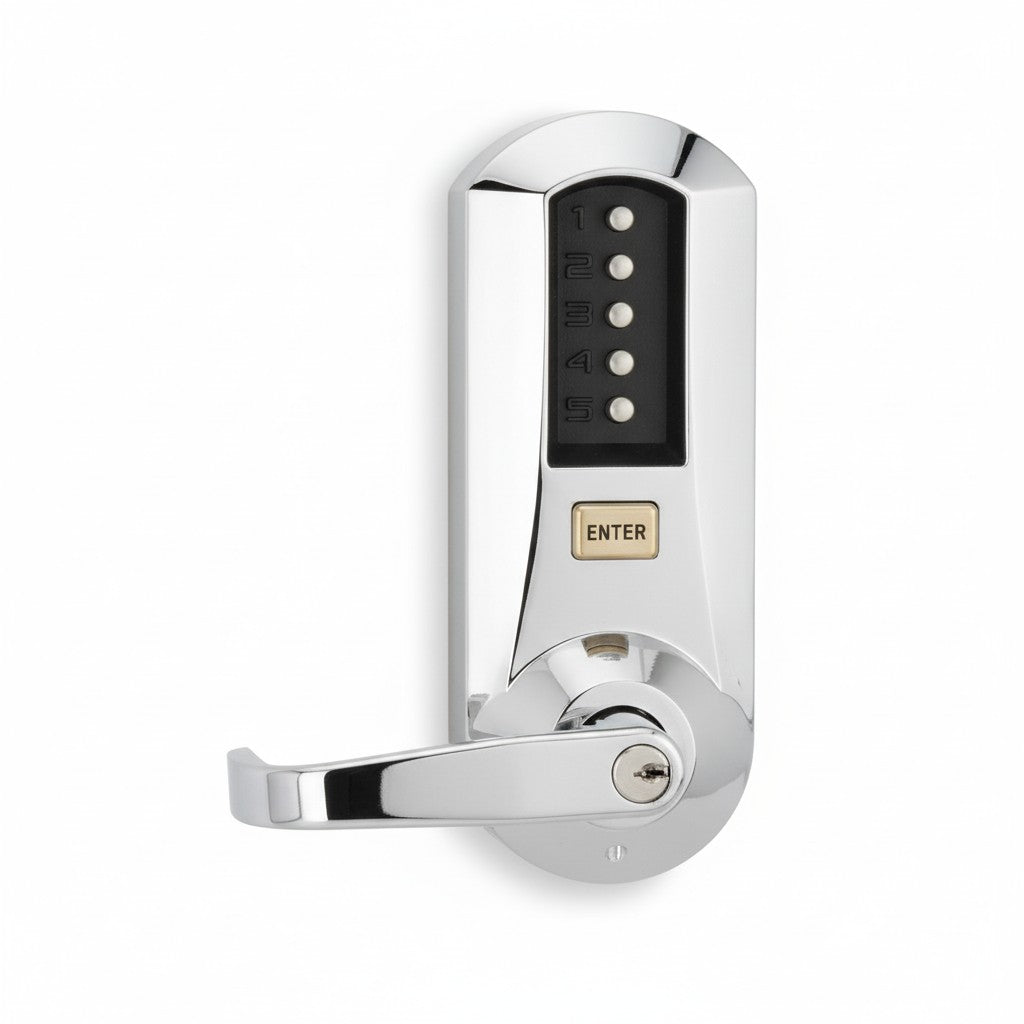

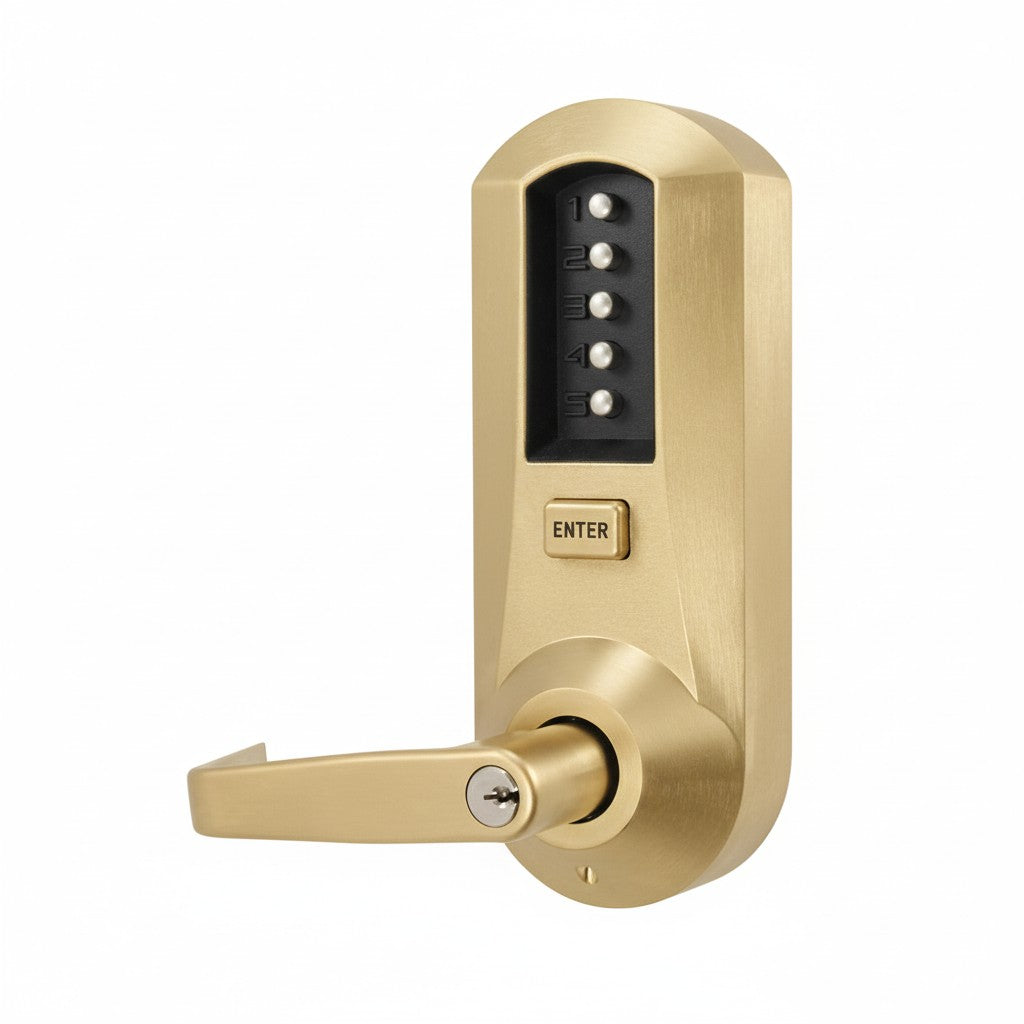

    • 6 decorative finishes.  Bright brass and satin brass are PVD finishes.  The black finish features satin chrome levers and accents.  The dark bronze PVD finish is a simulated 10B/613 finish and features brass accents.  Premium finish (bright chrome) may result in a small delivery lead time – please call (877) 439-5377 to verify
    • Thousands of possible codes combinations

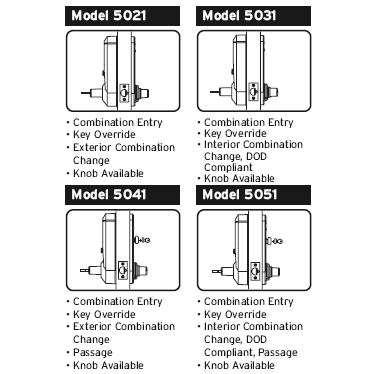

    • Change code with change tool (provided) from exterior side on 5021 and 5041 models, interior side on 5031 and 5051 model to meet Dept. of Defense standards
    • Auto-locking; available for order with passage mode feature in 5041 model
    • Covers existing standard ASA 161 door hole
    • dormakaba 5000 Extra heavy duty latchbolt with deadlocking plunger
    • Fits left and right swinging doors
    • All hardware and instructions included
    • Backset:  2 3/4″ included (2 3/8″ available at checkout)  How do I measure?
    • Low maintenance, no batteries or wires
    • Fits nearly all hinged doors
    • Key override – lock comes furnished with a 6 pin conventional Schlage cylinder with Schlage C keyway for emergency access

    Simplex 5021XSWL - Combination Entry (change codes from exterior) & Key Override Industrial strength combination lock from the leader in top of the line security solutions, Kaba Ilco.  Kaba has been making high quality security products for over 100 years.  For a security lock, the highly weather resistant Simplex 5000 Series earns a Grade 1 rating from ANSI. (American National Standards Institute)  This marks the highest rating they give out for quality.  Your Simplex 5000 grants entry upon successful validation of a 1 to 5 digit sequential code which you pre-program into the lock.  Vandal protected, the Simplex series of PIN based locks find widespread acceptance in high-traffic commercial, institutional, and government buildings. Don’t need heavy duty? Order Simplex LD470 light duty and take advantage of limited time, special, low pricing.



    GoKeyless™ is a factory trained and authorized dormakaba Simplex® dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Basic

    Manufacturer dormakaba USA Inc.
    ANSI Rating A156.2, Grade 1 (Best)
    BHMA Rating Grade 1 (Best)
    Keyway Schlage C
    Lock Features Auto Relocking
    Solution Mechanical
    Warranty 3 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits
    Locking Device Cylindrical Latch
    Brand dormakaba Simplex

    Door requirements

    Door Handing Reversible
    Door Prep Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s)

    Security

    Code Length 1 to 5 Digits
    Code Capacity 1
    Fire Rating 3-hour UL/ULC fire rating for A labeled doors

    Dimensions

    Exterior Dimensions 8 7/8 (H) x 3 3/8 (W) x 3 3/16 (D) in.
    Inside Dimensions ["8 7/8 (H) x 3 3/16 (W) x 2 1/8 (D) in."]
    Door Thickness Minimum 1 3/8 in.
    Door Thickness Maximum 2 1/4 in.
    Backset 2 3/4 in.
    Door Stile Width Minimum 5 in.
    Exterior Dimensions 8 7/8 (H) x 3 3/8 (W) x 3 3/16 (D) in.
    Weight 9.25 lbs
