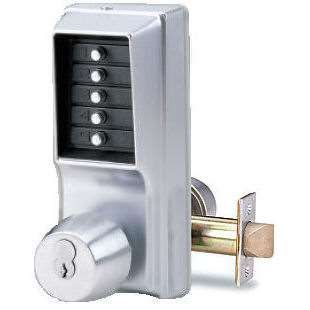

dormakaba Simplex 1041B
Pushbutton Knob Handle Door Lock
SKU: GKIT-1041B26D41
Kaba Simplex
$500.00 - $541.11
- 100% Mechanical HEAVY DUTY push button lock
- Thousands of possible codes combinations
- Auto-locking; however can be set to pass-thru mode using control key. Set pass-thru on interior side of lock
- HEAVY DUTY Latch bolt with deadlocking plunger
- Covers existing standard ASA 161 door hole
- Fits left and right swinging doors
- All hardware and instructions included with order
- Low maintenance, no batteries or wires
- Fits nearly all hinged doors
- Backset: 2 3/4" included (2 3/8" available at checkout) How do I measure?
- Key override; furnished with a combinated (keyed up) Falcon brand 6-pin IC key core. Includes one IC core change key, and two operating keys. (Falcon is the widely used industry standard for IC cores, and the one we use here)
- 3-year manufacturer warranty
Simplex 1041B - Combination Entry with Key Override & Passage (Best compatibleIC core included) Tough-as-nails combination lock from the leader in top of the line security solutions, Kaba Ilco. Kaba has been making high quality security products for over 100 years. The Simplex 1000 Series is a stand-alone security lock that is highly weather resistant. Entry is gained via a 1 to 5 digit code that is sequential. Vandal resistant, the Simplex locks have found widespread acceptance in high-traffic commercial, institutional, and government buildings. Need this lock with a lever handle instead? Click here
GoKeyless™ is a factory trained and authorized dormakaba Simplex® dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.
Basic
| Manufacturer | AlarmLock |
|---|---|
| Lock Features Old | Passage Mode |
| Solution | Mechanical |
| Warranty | 3 Year Manufacturer |
| Handle Type | Knob |
| Access Type | Key Keypad - Digits |
| Locking Device | Cylindrical Latch |
| Brand | Kaba Simplex |
Door requirements
| Door Handing | Non-Handed |
|---|---|
| Door Prep | Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s) |
Security
| Code Length | 1 to 5 Digits |
|---|---|
| Code Capacity | 1 |
| Fire Rating | 3-hour UL/ULC fire rating for A labeled doors |
Dimensions
| Exterior Dimensions | 7 3/8 (H) x 3 1/8 (W) x 3 3/16 (D) in. |
|---|---|
| Inside Dimensions | ["9 (H) x 3 1/4 (W) in."] |
| Door Thickness Minimum | 1 3/8 in. |
| Door Thickness Maximum | 2 1/4 in. |
| Backset | 2 3/4 in. |
| Door Stile Width | Minimum 4 in. |
| Exterior Dimensions | 7 3/8 (H) x 3 1/8 (W) x 3 3/16 (D) in. |
| Weight | 7.25 lbs |
