SDC 350V

Name: SDC 350V
Brand: GoKeyless
SKU: 350V
Price: 294.65 USD
Availability: InStock

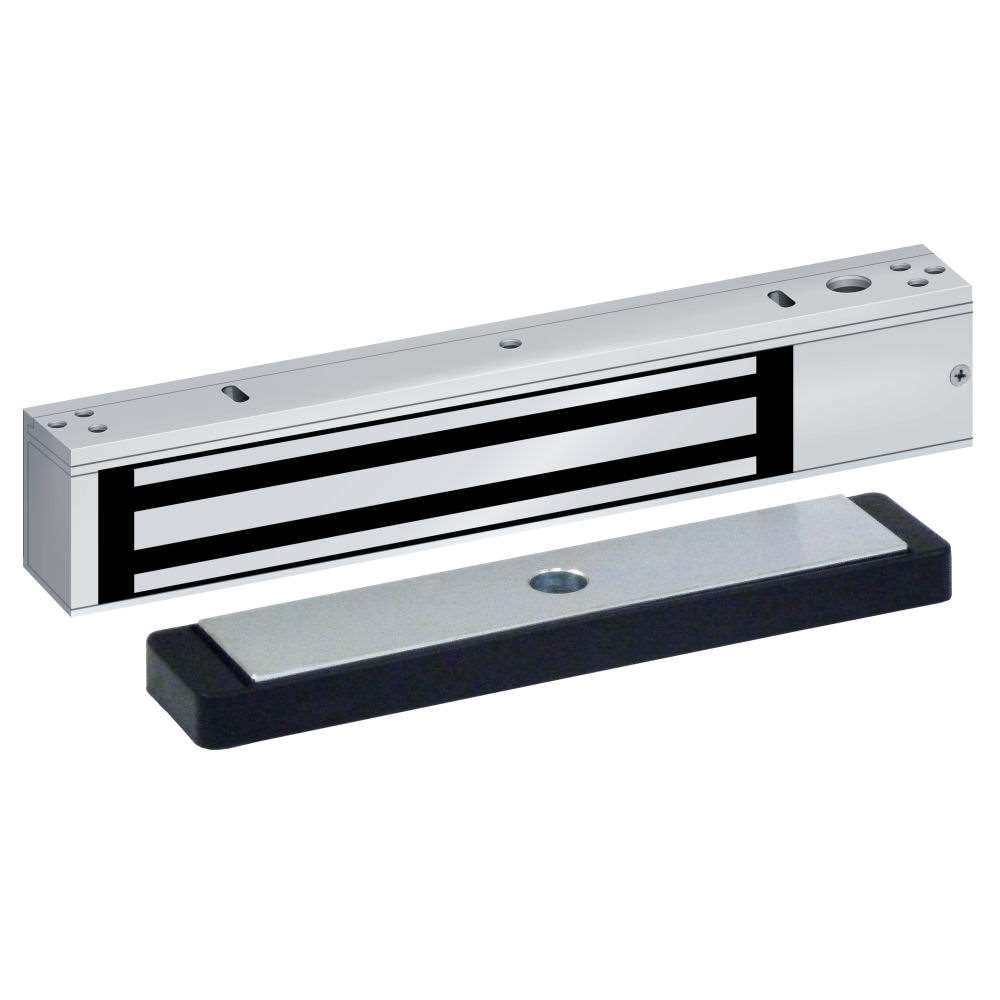

Single Narrow Line Magnetic Lock

SKU: 350V

SDC

Strength without compromise equates to a superior architectural appearance! Conventional magnetic locks cover up part of the glass door, making them an eye-sore. The SDC 350 is slim enough it fits within the frame, blending in for a seamless look. When you consider bond and status sensors are included, this is the best commercial door maglock for the money you'll find.

$401.00 $294.65 SAVE 27%

Features
Description
Specifications

Narrow frame single door maglock
Fail-safe access control for perimeter and interior doors
1200lbs holding force with Dual 12/24VDC input
Magnetic Bond Sensor, Door Status Sensor and LED Status indicator
Internal wire chamber with PC board mounted terminal blocks permits wiring before or after lock mounting
Interlocking Quick Mount Bracket leaves hands free for fast, easy screw fastening and wiring
Captive lock mounting screws provide additional convenience and speed. Interlocking bracket holds lock in place, leaving installers hands
free, eliminating awkward simultaneous holding and fastening of lock
Armature housing prevents sagging, provides quieter operation and superior appearance
Clear anodized aluminum standard
ANSI/BHMA A156.23 Grade 1 compliant
Current consumption: 309mA @ 24VDC / 560mA @ 12VDC
Retrofits existing Locknetics 350+ installation without replacing the original armature or additional modifications

The 350 Narrow Line EmLock provides 1200 lbs holding force and failsafe access control for perimeter and interior doors that meets building security and fire life safety code requirements. The 350 series is specifically designed for high profile openings that require less obtrusive surface mount lock with architecturally superior appearance. Unlike typical surface mount magnetic locks that project 3 to 3-1/2
inches into openings, the SDC 350 Narrow Line magnetic lock projects only 2-11/16 into the opening, enabling it to blend in exceptionally well with virtually any narrow frame. The SDC Narrow Line EmLock is the best solution available to maintain the architectural aesthetics of high profile door entrances.

RETROFITS DISCONTINUED LOCKNETICS 350+

The 350 EmLock retrofits the discontinued Locknetics 350+ magnetic lock without modifications. Since the Locknetics manufacturing facility is now closed, the SDC 350 EmLock has been designed to utilize the same mounting template, physical dimensions and features. Plus, the SDC 350 EmLock includes additional features such as full monitoring and EmLock Quick Interlocking Quick Mount Bracket for faster installation.

FULL MONITORING STANDARD

Standard features include Magnetic Bond (locked) Status, Door Status Sensor, wire chamber and integrated PC board with wiring terminal block, dual 12/24VDC input designed to ensure trouble free interface with electronic access control systems, automatic door operators, peripheral equipment and fire life safety systems for emergency release.

Basic

Manufacturer	Security Door Controls
Holding Force	1200lb
Input Voltage	12/24 VDC
Warranty	5 Year Manufacturer
Brand	SDC

Door requirements

Security

Dimensions

Dimensions	12-1/2 (L) x 2-1/8 (H) x 1-11/16 (W) in.
Weight	6 lbs
