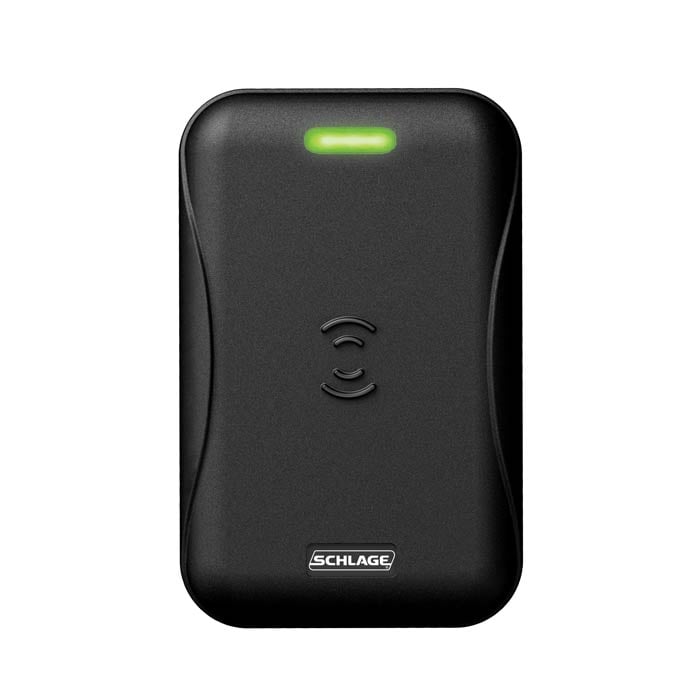

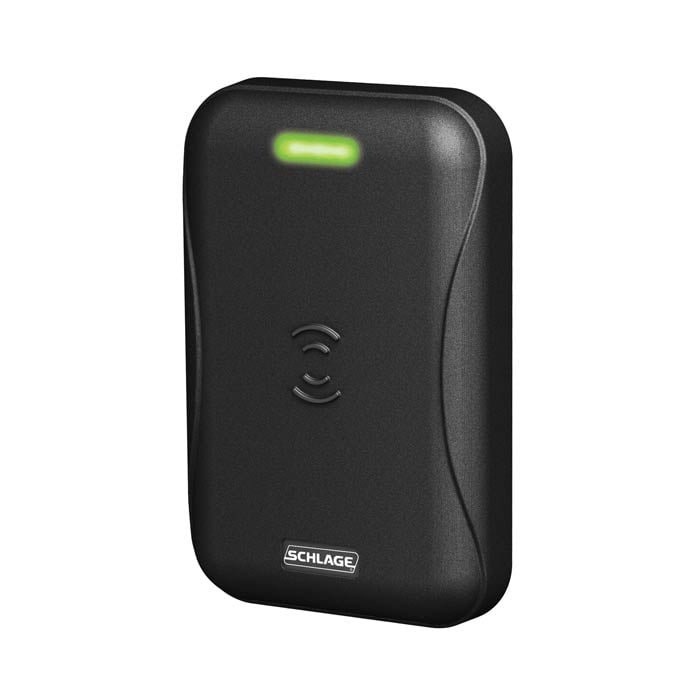

Schlage MT15

• Accommodates interior, exterior, metal, and non-metal installation environments
• Recognizes most proximity credentials, and Schlage smart credentials (MIFARE classic and MIFARE DESFire EV1)
• Reads CSN (card serial numbers) of HID iCLASS, Inside Technologies PicoTag, ST Microelectronics, Texas Instruments Tag-It, and Phillips I-Code
• FIPS 201-1 Compliant
• NFC Compatible
• Quick-connect design for easy installation
• Simple wiring – color scheme is identical to most readers in the market
• Easy-to-install mounting bracket
• Tri-state LED (red, green, amber) visual indicator and audio feedback representing status and activity information, easily discernible for the audibly or visually impaired.
• Rounded corners, flush fit to wall
• Wiegand output for simple interface with most access control panels
• Standard color is black.  Multiple reader cover color options including gray, brown, and cream may be specially ordered
• Limited Lifetime Warranty
• Multi-technology readers may also be specially ordered with RS-485 capability
• The MT15 reader is a replacement for (S)XF1500, (S)XF1550 , (S)XF1560, (S)XF2100, and (S)XF2200 legacy reader products

Specs

• Physical Dimensions (HWD):  5.1″ x 3.25″ x 0.76″
• Frequency:  13.56 MHz and 125 kHz
• Standard Default PIV Output:  75 bit†
• Standards:  ISO 14443A, 14443B, 15693
• Power:  5-16 VDC
• Wiring:  18 or 20 AWG 12 shielded wire, depending on distance to panel
• Read Range:  Proximity: Up to 5” (12.7 cm), MIFARE: Up to 4” (10 cm), DESFire EV1: Up to 2” (5.1 cm), PIV Credential: Up to 2.5” (6.5 cm)
• Operating Temperatures:  -40 to 158F (-40 to 70C)
• Material:  PBT Polymer

† Configurable to other output formats. Check with access control provider for specific support.
