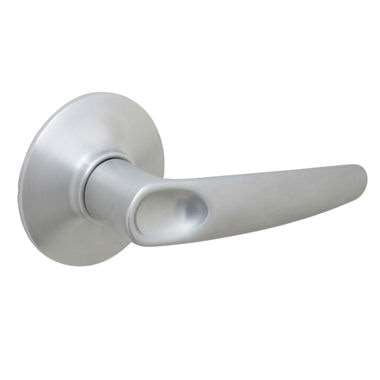

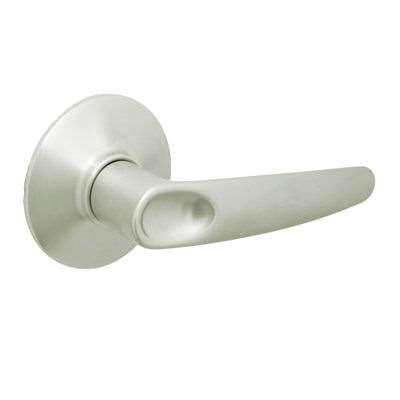

  • Schlage F10 Jazz

    Passage Lever

    SKU: F10JAZ626

    Schlage



    Finish

    Quantity left : 0

    Call For Price
    • Non-locking - ideal for closets and rooms where locking is not needed
    • Easy 3-step installation, only a screwdriver needed
    • Quality materials and construction for exceptional security
    • Lifetime finish and mechanical guarantee
    • Quality finishes coordinate with plumbing and lighting
    • Applications: Residential single- and multi-family doors

    Schlage F51 entry locks, Schlage F40 privacy locks, and Schlage F170 dummy trim, compliment your new Schlage F10 by giving you the unique styling of Schlage throughout your home. A complete collection of Schlage F Series locks is offered.

    Bold and beautifully crafted Grade 2 passage lever set by Schlage makes itself right at home in your dwelling.  With an anti-tarnish finish on all exterior parts, the Schlage F10 Jazz door lever lasts for a lifetime, and portrays a contemporary design.  Schlage non-locking F10 levers provide a free entry & exit on residential single and multi-family hall/closet doors.  You can also use this lever as your grip handle on a door with an existing deadbolt, or new Schlage BE365 keypad deadbolt.  In this setup, the F10 resides 2-1/4" inches below the lock on your door. (typically replace door knob or lever) Schlage F10 Jazz levers come with a triple-option universal fit for nearly every hinged door, and feature a lever on both the inside and the outside. The handle is reversible, so it works on either a left or right handed door.  Easy setup, using an adjustable cylindrical latch.  Step-by-step instructions included. Frequently purchased with Schlage F40 Jazz privacy bed/bath door lock, and Schlage F170 Jazz dummy trim.

    Basic

    Manufacturer Allegion
    ANSI Rating A156.2, Grade 2 (Better)
    Finish Satin Chrome, Satin Nickel, Bright Brass, Antique Brass
    Function Passage
    Handle Type Lever Handle Door Locks
    Locking Device Cylindrical Latch
    Brand Schlage

    Door requirements

    Door Prep Standard 2 1/8 in. Cross-Bore

    Security

    Dimensions

    Door Thickness Minimum 1 3/8 in.
    Door Thickness Maximum 1 3/4 in.
    Backset 2 3/8 to 2 3/4 in. adjustable
    Certifications ADA, UL/cUL Listed
