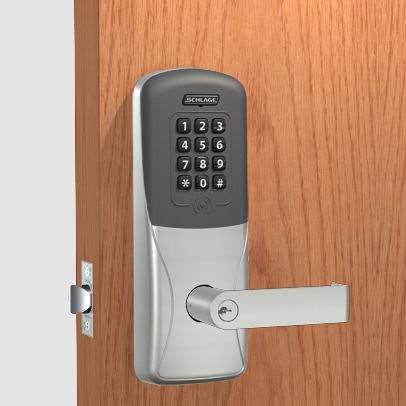

    Prox/Keypad Privacy Card Lock

    SKU: CO-200-CY40-PRK-RHO-626-PD-C

    Schlage

    Panic bar/exit device sold separately.



    The Schlage CO-200 series offers offline PC programmable stand-alone access control for your door. Manage users instantly, and save money when someone moves on because you won't be forced to cut new keys or re-key your cylinders. Well-suited for higher security openings, access points with larger amounts of user traffic, and applications where you need to track who goes in and out.

    Key Override

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $241.02

    Call For Price

    This page is for the stocked model. We accept custom orders! To see the options, download ordering guide, then contact us for a quote.

    • ANSI/BHMA Grade 1 Dual Security Cylindrical Lock; leads in independent third party testing for quality
    • Proximity + Keypad Two-Factor Controlled Access System On the Door
    • Program at the Keypad, or via your Computer
    • Auto-locking PRIVACY Function
    • Accommodates 500 Users standalone; 2000 Users with Software (sold separately); PIN codes may be 3-6 digits in length
    • Reads 125kHz cards/fobs, and is compatible with a range of Schlage prox credentials, as well as XceedID, HID, GE/CASI ProxLite and AWID
    • 3 Methods for Restricting Access:  PIN only, Card only, PIN + Card for highest security
    • User Rights Maintained on the Lock; Instantly changeable at any time using the Handheld Device (HHD) in conjunction with your Schlage access control software (Schlage SMS Express, Select, Premier, and Enterprise)
    • Retrieve Audit Trails; Prior 2000 events with time/date stamp
    • Review who requested access and when
    • Battery Operation: Up to 2 yrs with 4AA (std. off the shelf; included)
    • Visual/Audible Communications: Tri-colored LED’s & audible indicators
    • Report on mechanical key usage and battery status
    • Scheduling:  Set up to 8 unlock, and time zone schedules, as well as 32 holiday
    • 1st Person-in:  Restricts users from gaining access — even if door is set on timed unlock — prior to entry of an individual (typically supervisor/manager) with the 1st person-admittance rights
    • Satin Chrome with Rhodes lever design
    • Fits left and right swing doors
    • Step-by-step easy to follow installation and operating manual included
    • Mechanical key override using 6-Pin Schlage standard cylinder (compatible with multiple cylinder types).  You may select a different lever cylinder type, including less standard Schlage cylinder, or IC (Inter-changeable Core) cylinder prep
    • Backset:  Commercial 2-3/4″ supplied
    • Credential Verification Time: = 1 second
    • Certifications: ANSI/BHMA A156.25 Grade 1, UL 294, UL 10 C, FCC Part 15, ADA

    †Auditing, scheduling, and access control features require software

    GoKeyless is a trained and authorized Schlage® dealer. Sales, service, and support. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.Anyone who knows security will tell you Schlage does it as well or better than anyone.  A history dating back 90 years for developing lines of security solutions you can trust, Schlage continues this tradition with their Schlage CO-200 computer programmable dual security keypad/prox privacy locks.  Well-suited for higher security openings, access points with larger amounts of user traffic, and applications where you need to track who goes in and out, Schlage CO-200 prox card privacy locks alleviate the complications caused by lost keys and turnover, offer a solution which is harder to duplicate than using a strictly PIN code system, and protect someone from another user with basic or mid-level access rights from walking in on them.  The additional benefit of 'prox' is it's more durable than magstripe.  This extends the life of your lock and credentials, and lets you use these locks for a wide array of environmental conditions.  With Schlage CO 200 card locks you create a wall of protection around your business, substantially improve security for spaces containing sensitive information (Ideal for Healthcare environments in order to meet HIPAA regulations for instance!), and gain real-time oversight with time/date stamped records of access.  By switching to these locks you'll be able to easily add and delete users instantly, and you'll save your money when someone moves on because you won't be forced to cut new keys or re-key your cylinders.  Schlage CO200 prox locks replace the immensely popular and now legacy Schlage King Cobra and Schlage Pro Series locks.  Features you've enjoyed in these locks including the VandlGuard lever protection are built-in to the CO-200 series, along with new innovations such as integrated intelligence, and a key-in-lever design which is compatible with most brands of IC core cylinders. Schlage didn't stop there though, what we really like is they've created the CO-200 locks to fit a wider variety of door conditions and credentialing requirements, as well as made these locks backwards compatible with the Schlage legacy products.  This means if you have an installed base of iButton locks, you can integrate the Schlage CO-200 privacy lock into your existing system, and manage everything with the Schlage HHD hand-held device.  New combo Prox/iButton fobs are now available which replace the traditional iButton fobs and let you manage both Proximity and iButton technology within the same facility.  Versatile, compatible, and reliable, Schlage CO locks provide you a maze of possibilities.

    Did You Know? Schlage CO and AD locks are the first electronic locks to be UL (Underwriter's Laboratory) 294 certified.  This is a tougher certification to obtain, as it tests the electronics, not just the mechanical components.  Tests for accelerated aging, corrosion resistance, destructive attack, temperature, humidity, and rain are performed.  By meeting UL 294 standards, Schlage locks give you more reliability, and preserve your investment.

    GoKeyless™ is a trained and authorized Schlage® dealer. Sales, service, and support. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Basic

    Manufacturer Allegion
    ANSI Rating Grade 1 (Best)
    Battery Type AA
    BHMA Rating A156.25, Grade 1 (Best)
    Event Scheduling 8, Automated Unlock/Lock
    Finish Satin Chrome
    Lock Features Audit Trail, Passage Mode, Privacy, Scheduling, Timed Codes, Lockdown
    Radio Frequency 125 kHz
    Solution Electronic
    Warranty 2 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Reader Type Prox Card/Fob
    RFID
    Access Type Key
    Keypad - Digits
    Proximity Card/Fob
    Locking Device Cylindrical Latch
    Brand Schlage

    Door requirements

    Door Handing Universal
    Battery Life 2 Years
    Door Prep Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s)

    Security

    Code Length 3 to 6 Digits
    Timed Entry Allowance 1 sec.
    Users 2,000

    Dimensions

    Exterior Dimensions 3.44 (W) x 9.46 (H) x 3.67 (D) in.
    Inside Dimensions ["3.44 (W) x 10.10 (H) x 2.96 (D) in."]
    Door Thickness Minimum 1 3/4 in.
    Backset 2 3/4 in.
    Certifications ADA, FCC Part 15, RoHS, UL 10C, UL 294, UL Canada
    Door Stile Width Minimum 5 in.
    Exterior Dimensions 3.44 (W) x 9.46 (H) x 3.67 (D) in.
    Weight 8 lbs
