  • Schlage CO-100 Gate Kit

    Electronic Keyless Lock and Gate Box

    SKU: KIT-SCH-CO-100-CY70-KP-RHO-626-PD-C

    Schlage and Schlage CO



    Give your gate the best. The Schlage CO-100 Gate Kit provides convenient keyless access to fences and gates. Includes the durable Keedex gate box to mount this powerful keyless lock to your gate. Suitable for use where lever operated locks are preferred.

    Key Override

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $173.28

    Call For Price

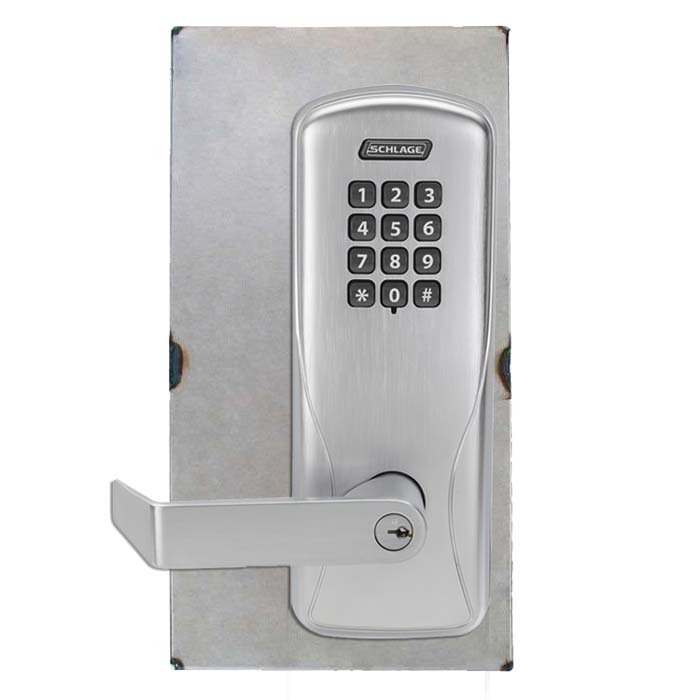

    This kit includes (1) Schlage CO-100 Keyless Lock and (1) Keedex Gate Box

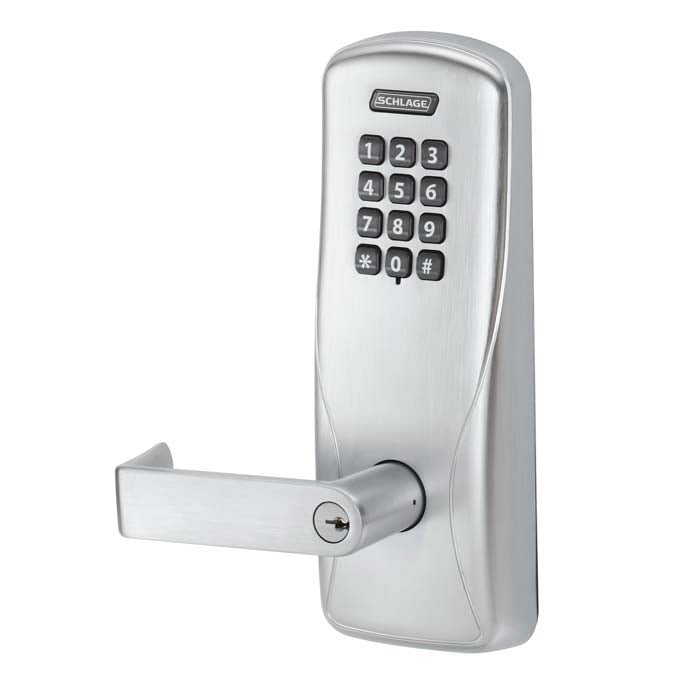

    Schlage CO-100

    • Satin Chrome finish
    • Added security and convenience of electronic access control without the cost or complexity of a fully networked system
    • Tested to highest industry standards to ensure quality and reliability
    • Manually programmable auto-locking classroom/storeroom cylindrical lockset; Lockset is normally secure. Inside lever always allows free egress. Valid toggle credentials on the exterior may be used to change to a passage or secured status
    • Battery Powered: Up to 2 yrs with 4AA (std. off the shelf; included)
    • Assign unique, sequential PIN codes (3-6 digits) to each user (up to 500), minimizing the number of mechanical keys issued which protects the integrity of your key system
    • Keypad Programming:  Update users at the lock
    • Straight-forward, easy to follow installation and operating manual included
    • Mechanical key override using 6-Pin Schlage standard cylinder
    • Commercial 2 3/4 in. backset (supplied)
    • Latch Length 1/2 in.
    • Visual/Audible Communications: Tri-colored LED’s and audible indicators
    • Certifications: ANSI/BHMA A156.25 Grade 1, UL 294, UL 10 C, FCC Part 15, ADA

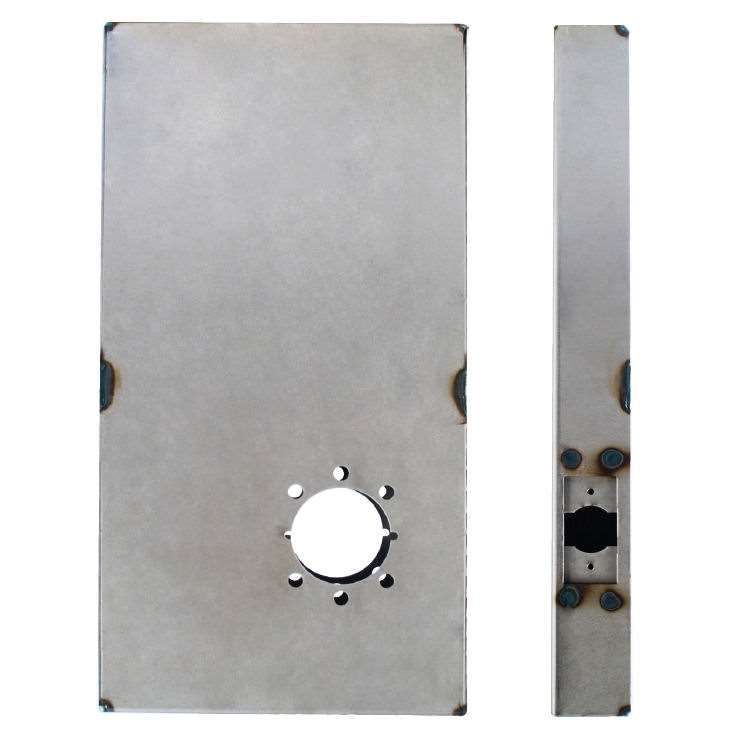

    Keedex Gate Box

    • Weldable steel gate box
    • Compatible with cylindrical latch locking devices
    • Dimensions:  15 1/2 (H) x 8 (W) x 1 3/4 (D) in.
    • Fits 2 3/4 in. backset

    This page is for the stocked model. We accept custom orders! To see the options, download ordering guide, then contact us for a quote.


    GoKeyless is a trained and authorized Schlage® dealer. Sales, service, and support. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Viewed by observers in the industry as the benchmark for stand-alone keyless access, the Schlage CO-100 series of manually programmable keyless locks let you handle your day’s business without worrying about keys. A cost effective solution and leader in independent third party testing, Schlage CO-100 electronic locks allow you to easily transition from mechanical security and secure your peace of mind. With Schlage CO-100 locks you won’t spend your day arranging to get your locks replaced or re-keyed, you won’t waste time getting new keys made, and you won’t agonize over the expense of these events, ever again. Schlage CO-100 locks let you streamline, safeguard, and simplify for less. These locks are ideal for applications with a small to medium number of users, where convenience takes precedence, and where access if not properly controlled could create a risk. Even more, for facilities looking to improve overall security, one of the agreed upon methods by security experts is to reduce the number of keys in circulation, which this lock will do. With manually programmable pass-through, freeze, and normal-use lock command options built-in, the Schlage CO-100 keyless locks give you what you need to keep your place safe and secure. Nothing compares to the simplicity with which you install and use these locks too. Even if you consider yourself a novice when it comes to door hardware, you can handle the Schlage CO-100 lock. By drilling a few extra small mounting holes, you can retrofit your current knob/lever handle lock in minutes. Give Schlage CO-100 a shot at reducing your lock servicing costs, enhancing daily productivity, and protecting your business today, you won’t have any regrets.

    Did You Know?
    Schlage CO and AD locks are the first electronic locks to be UL (Underwriter’s Laboratory) 294 certified.  This is a tougher certification to obtain, as it tests the electronics, not just the mechanical components.  Tests for accelerated aging, corrosion resistance, destructive attack, temperature, humidity, and rain are performed.  By meeting UL 294 standards, Schlage locks give you more reliability, and preserve your investment.

    Basic

    Manufacturer Allegion
    ANSI Rating A156.25, Grade 1 (Best)
    Battery Type AA
    BHMA Rating Grade 1 (Best)
    Lock Features Passage Mode
    Solution Electronic
    Warranty 2 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits
    Locking Device Cylindrical Latch
    Brand Schlage
    Schlage CO

    Door requirements

    Battery Life 2 Years

    Security

    Code Length 3 to 6 Digits
    Code Capacity 500
    Scanning Time ≤ 1 sec.

    Dimensions

    Exterior Dimensions 3.44 (W) x 9.46 (H) x 3.67 (D) in.
    Inside Dimensions ["3.44 (W) x 10.10 (H) x 2.96 (D) in."]
    Certifications ADA
    Exterior Dimensions 3.44 (W) x 9.46 (H) x 3.67 (D) in.
    Weight 8 lbs
