Schlage AD-400 993

Name: Schlage AD-400 993
Brand: GoKeyless
SKU: AD-400-993R-70-MTK-ATH-626
Price: 2821.85 USD
Availability: InStock

Networked Wireless Exit Trim

SKU: AD-400-993R-70-MTK-ATH-626

Schlage and Schlage AD Products

This lock requires a compatible PACS system for operation.

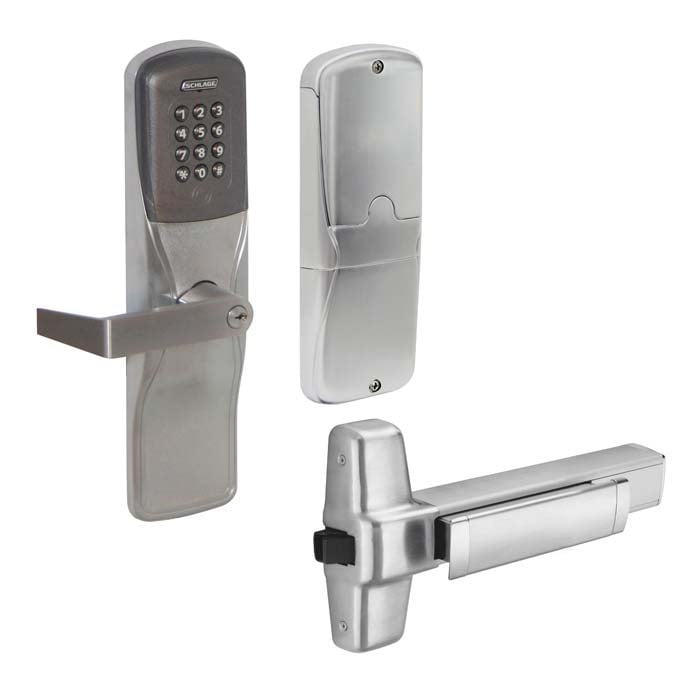

Install now, upgrade forever! The Schlage AD-400 Networked Wireless Exit Trim provides an adaptable solution to openings that require exit devices for either retrofit or new construction applications. Upgrade to new technologies without taking the lock off the door. This lock features a built-in credential reader and access control sensors for simplified installation.

$2,821.85

Features
Description
Specifications

Please note: A compatible PACS system is required to use this lock, Includes One Time License for use in PremiSys

Security

Electronic access control brings more visibility and control to the opening
Modular design allows reader upgrade to fit changing credential needs without changing the lock
Real-time communication with centralized lockdown capability
Unique communication protocols that has a longer range and won’t interfere with other wireless networks
Wireless range up to 200 ft with obstructions (normal building construction), 1,000 ft clear line of sight
Read range, Proximity: up to 1.25 in., Smart card: up to .75 in., NFC mobile: mobile device dependent
Secure encrypted data transmission
Weather-resistant for interior and perimeter applications

Efficiency

Open architecture platform is compatible with most major access control systems
Flexible connectivity options to fit building infrastructure

Convenience

Integrated design combines electrified lock, credential reader, request-to-exit and request-to-enter sensors, door position switch and tamper switch
Smart credentials can be used for vending and other applications
Non-invasive installation

Standard model

Networked Wireless Exit Trim
Satin Chrome Finish
Athens handle
Classroom/Storeroom function
Multi-technology with keypad (MTK) reader
Additional handles, readers and finishes available
Includes One Time License for use in PremiSys

Get the key benefits of a hardwired access control system, without the wires! The Schlage AD-400 Networked Wireless Exit Trim provides an adaptable solution to openings that require exit devices for either retrofit or new construction applications. This lock features a built-in credential reader and access control sensors for simplified installation. With its modular design and multiple reader options to choose from, you can customize the AD-400 to fit the needs of an application now, and update any future needs without removing it from the door. This allows you to secure doors that were traditionally difficult to run wires to in the past while increasing the security throughout your property.

Offering a wide range of credential options such as smart card, proximity card, NFC mobile, and more, you will be able to use this lock in most any access control setting. AD-400 wireless locks can work in the same access control system as other wireless devices including Schlage NDE, LE, and the WRI400. Features and capabilities will vary by system.

Available in cylindrical, mortise, mortise deadbolt and exit trim chassis options.*

*Please note: A compatible PACS system is required to use this lock

Basic

Manufacturer	Allegion
ANSI Rating	A156.25, Grade 1 (Best)
Battery Type	4 AA
BHMA Rating	A156.25, Grade 1 (Best)
Finish	Satin Chrome
Keyway	6 pin C
Lock Features	Audit Trail, Auto Relocking, Lockdown, Remote Control
Radio Frequency	902 MHz up to 928 MHz
Smartphone Compatibility	Android 4.1 or later, iOS 10 or later
Solution	Electronic
Warranty	2 Year Limited Manufacturer
Handle Type	Lever Handle Door Locks
Access Type	Key Keypad - Digits Smart Card/Fob Smartphone/App
Locking Device	Panic/Exit
Brand	Schlage Schlage AD Products

Door requirements

Door Handing	Non-Handed
Battery Life	2 Years
Door Prep	Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in.
Latch Bolt	1/2 in. throw

Security

Credential Format	125 kHz Proximity, 13.56 MHz Smart Technology, MIFARE Classic, MIFARE Desfire, MIFARE Plus
Credential Type	125 kHz Prox, Card, Fob, MIFARE
Wireless Protocol	Advanced Encryption Standard (AES), 128-bit
Wireless Range	1000 ft.

Dimensions

Exterior Dimensions	9.46 (H) x 3.44 (W) x 3.67 (D) in.
Door Thickness Minimum	1 3/8 in.
Door Thickness Maximum	2 3/4 in.
Certifications	ADA, FCC Part 15, UL 10C, UL 294
Exterior Dimensions	9.46 (H) x 3.44 (W) x 3.67 (D) in.
