Schlage AD-201

Name: Schlage AD-201
Brand: GoKeyless
SKU: AD-201-993R-70-FMK-RHO-626
Price: 2319.26 USD
Availability: InStock

FIPS 201-1 Compliant Standalone Electronic Exit Trim

SKU: AD-201-993R-70-FMK-RHO-626

Schlage AD

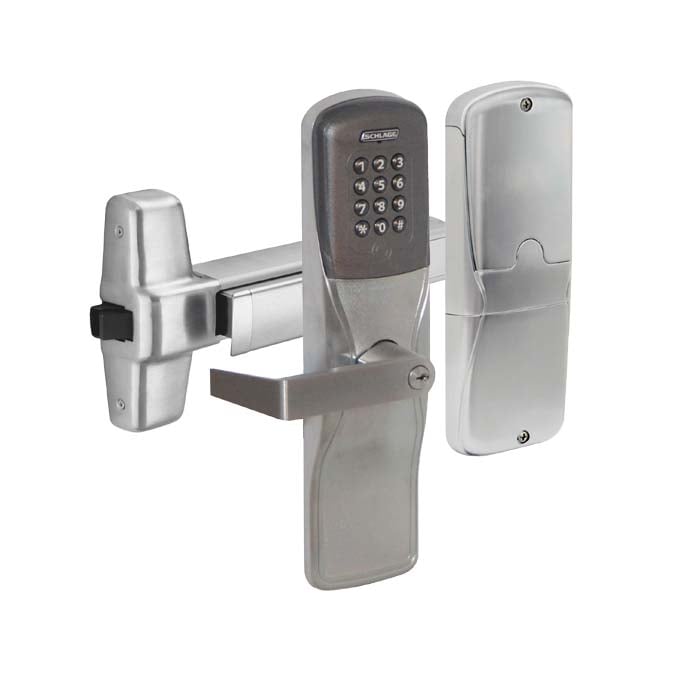

A lock that follows the rules. The Schlage AD-201 FIPS 201-1 Exit Trim provides standalone keyless access for government facilities requiring FIPS 201-1 compliance. Easily upgrade reader and communication modules with AD-201's modular design without removing the lock from the door.

$2,753.00 $2,319.26 SAVE 16%

Features
Description
Specifications

Exit Trim model (exit device sold separately) – Cylindrical and Mortise models available
Satin Chrome with Rhodes Lever Standard
MTK multi-technology + keypad | proximity and smart card model
FIPS 201 compliant multi-technology reader for use with PIV and PIV-I credentials
Upgradable to an AD-401 FIPS 201-1 compliant wireless lock
Legal entry by PIN code; codes may be 3-6 digits in length
Supports up to 2000 users/audits with 50 locks or 1000 users/audits with 100 locks
Eliminates functional deficits of traditional mechanical lock systems
PC Programming – Computer programming requires Schlage SMS Express software, and Handheld Device (HHD) (sold separately)
User data, lock configuration files upload to lock via HHD
Audit Trail – Connect HHD to the lock to report on prior 5,000 events that allow you to track usage and events using Schlage SMS access control software
Report on mechanical key usage and battery status
Auto-locking classroom/storeroom lockset – Lockset is normally secure, inside lever always allows free egress
Valid toggle credentials on the exterior may be used to change to a passage or secured status
Set up to 8 unlock, and time zone schedules, as well as 32 holiday
Fits left and right swing doors
Step-by-step easy to follow installation and operating manual included
UL 294 listed, ANSI/BHMA A156.25 and ANSI/BHMA Grade 1 certified

Compatible Models

Von Duprin 98/99 and 98/99XP rim/SVR
Von Duprin 22/22F rim/SVR
Falcon 25 rim
Sargent 80 rim (Narrow design and reversible rim exits not compatible)
Precision 21 rim
Yale 7000 rim
Corbin Russwin 5000 rim
Dorma 9300 rim

The Schlage AD-201 FIPS 201-1 Compliant Electronic Lock provides a standalone solution for applications requiring approval by the U.S. Federal Government under HSPD-12 for FIPS 201-1 compliance. AD-201’s modular design allows reader and communication modules to easily be upgraded without even taking it off the door. With a built-in multi-technology reader and keypad module, you can use FIPS 201 compliant PIV and PIV-I credentials. PIN code entry allows for access if you forgot or misplaced your card. Programming requires Schlage Express offline software and handheld device (HHD) (sold separately). Using the handheld, you can upload user data and lock configuration files to the lock as well as track usage and battery status. Set up to 8 unlock, time zone and 32 holiday schedules.

Basic

Manufacturer	SCHLAGE
ANSI Rating	A156.25, Grade 1 (Best)
Battery Type	4 AA
BHMA Rating	A156.25, Grade 1 (Best)
Finish	Satin Chrome
Lock Features	Audit Trail, Passage Mode, Scheduling
Solution	Electronic
Warranty	1 Year Limited Manufacturer
Function	Classroom/Storeroom
Handle Type	Lever Handle Door Locks
Access Type	Keypad - Digits Smart Card/Fob
Locking Device	Panic/Exit
Brand	Schlage AD

Door requirements

Door Handing	Reversible
Battery Life	2 Years

Security

Code Length	3 to 6 Digits
Credential Format	125 kHz Proximity, 13.56 MHz Smart Technology
Credential Type	Card
Scanning Time	≤ 1 sec.
Users	2,000 with Software

Dimensions

Exterior Dimensions	13.62 (H) x 3.44 (W) x 3.69 (D) in.
Door Thickness Minimum	1 3/4 in.
Door Thickness Maximum	2 3/4 in.
Exterior Dimensions	13.62 (H) x 3.44 (W) x 3.69 (D) in.

Schlage AD-201

Basic

Door requirements

Security

Dimensions
