Saflok QuantumIV RFID RCU/ECU

• BLE options
• Contactless QTM II smart card reader uses industry-standard Mifare ISO 14443A communication platform and high-security protocol
• Contactless communication between the keycard and the reader via RF waves
• Keycards are programmed using a contactless encoder
• Restricts access to guest keys after check-out date
• Selectable master key access
• Auditable entries/attempts
• Ability to easily integrate into any System 6000™ design and Ambiance access management software
• Configurable credential expiration

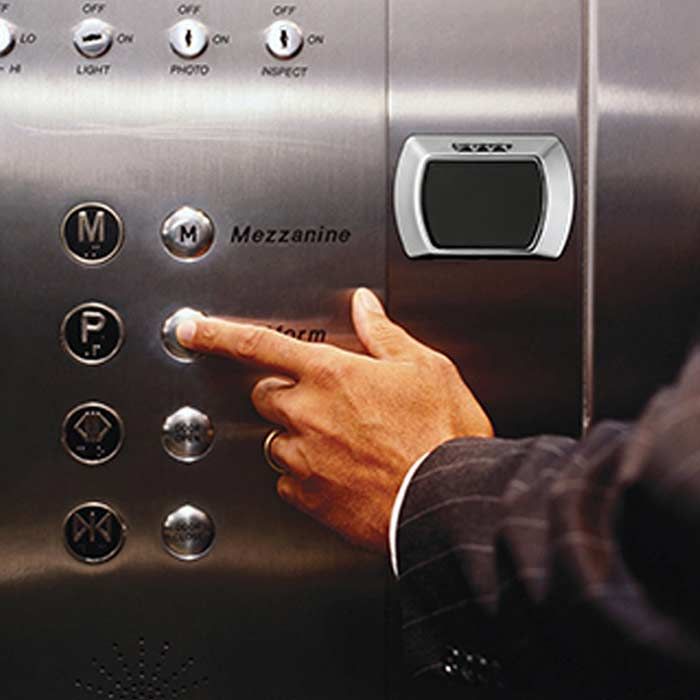

• Option: choose the Saflok Multi-Floor Controller to secure access to multiple floors for your elevator

Technical Data

• Diagnostics: LED lights displayed behind high-impact polycarbonate reader lens
• USB connectivity to LPI probe
• Optionally equipped with the Messenger LENS transceiver for centralized access control
• Environmentally sealed contactless smart card reader protects against climate extremes
• Programmable auto latch/unlatch feature eliminates need for manual dogging

Applications

• Remote access points – elevator, parking entrance, outdoor swimming pool
• Locking devices – electric strike, magnetic lock
• RCU switch works with electrified locking devices
• Fits into double-gang switch box
• Controls electric locking devices up to 24 volts AC/DC
• Configurable for normally closed circuits (magnet latches) and normally open circuits (electric strikes)
