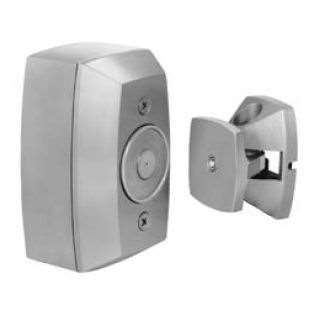

    Wall Mounted Electromagnetic Door Release

    SKU: 996M-689

    Rixson



    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $46.29

    Call For Price
    • Application:  Wall mount, surface wiring.  Use on doors where distance from Wall to Door is 4-1/8″
    • 25 to 40 pounds holding power
    • Fail-safe operation; power failure releases door to close
    • Positive release button initiates closing motion
    • Tri-volt coils on most models
    • Easy Installation; Spotting template included
    • For stronger holding forces (50-55 lbs.) must specify model and voltage. Not available in tri-volt coils. Contact us for a quote
    • Mounting Requirements:  1-1/2″ (38mm) deep adapter housing
    • Wall must be properly reinforced
    • Sprayed aluminum finish

    Specs

    • Single coil to accommodate 12VDC, 24VAC, 24VDC and 120VAC. Coils independently wound, employing a fuse. Armatures have positive release button

    Certifications

    • ANSI/BHMA 156.15 Standards. ANSI/C00011
    • UL/ULC listed
    • Listed by California State Fire Marshal

    Warranty

    • Limited Warranty: Rixson electromagnetic door holder/releases are warranted for 2 years for defect
    No need to spend thousands outfitting your fire barrier doors with automatic door closers when you can simply combine a standard mechanical closer with this Rixson 996 electromagnetic door holder & door release.  With the Rixson 996 door release, any time the fire alarm goes off, power will be cut to this door holder, releasing the door so it can be shut with the mechanical door closer.  When you start adding up the number of smoke and fire barrier openings in your church, theater, or office building, you can easily see how this is a more economical way of ensuring you meet code. The Rixson 996 door release is only to be used in conjunction with a mechanical non hold-open door closer. We offer several to choose from at checkout. Most of your meeting rooms, congregation areas, or spaces within a building where people gather, will contain many of these openings where fire and smoke is contained by the door.  The Rixson 996 electromagnetic door holder and door release is also quite frequently used on private office doors, or any other entrances into areas where people come and go throughout the day, but that in the event of a break-in, or emergency, must be secured. The burglar alarm can be wired to the Rixson 996 to release the door on the alarm being tripped. This way the door to the IT room, supply closet, conference room, and manager office(s) will be locked, possibly preventing sensitive equipment from being vandalized, or critical and private information from being stolen.

    Basic

    Manufacturer ASSA ABLOY / Rixson
    Product Headline Wall Mounted Electromagnetic Door Release
    Brand Rixson

    Door requirements

    Security

    Dimensions
