  • PDQ XGT 182 Spirit

    Extreme Heavy Duty Grade 1 Office/Entry Lock

    SKU: XGT 182 PHL 613

    PDQ



    Finish
    Key Override

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $49.16

    Call For Price

    2 Day (biz.) Shipping Lead-time

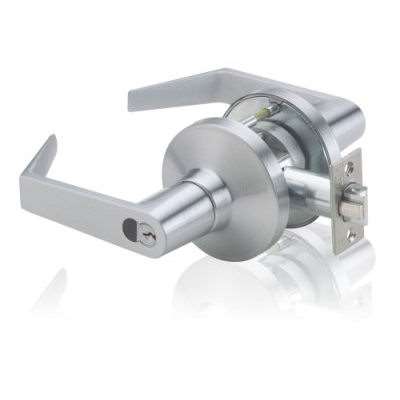

    • ANSI Grade 1 Extremely Heavy Duty cylindrical door lock
    • Exceeds 3,000 in lbs. of torque resistance
    • Office/Entry Function (F82) — Latchbolt operated by lever from either side or key in outside lever, outside lever locked by push button on inside, outside lever unlocked by key from outside, or rotating inside lever, kick off feature on latch
    • High Strength stainless steel investment cast spindle.  Heavy gauge steel mounting plates.
    • Backset:  2-3/4″
    • Handing:  Field Reversible
    • Door Situation:  Fits left, right wood/metal swing doors

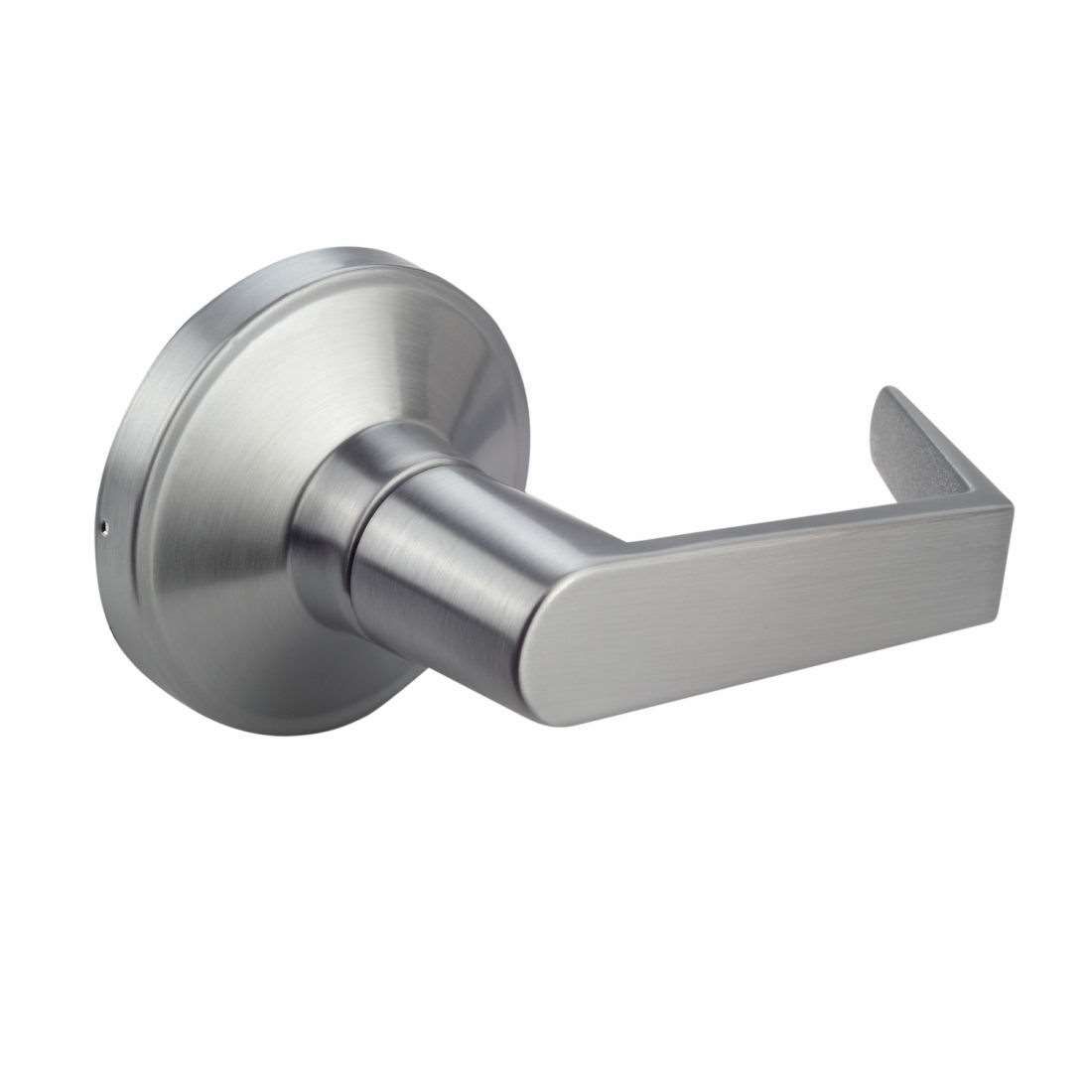

    • Lever Style — Philadelphia. Miami & Boston designs available upon request
    • Architectural Finish
    • Door Thickness:  1-3/4″ ~ 2-1/4″
    • Keys:  Two (2) keys provided per lock
    • Keyway — Schlage / SCC.  May be custom ordered in keyways of most major manufacturers.
    • Cylinder:  Brass 6-pin cylinder, keyed to 5 pins.
    • Interchangeable Core (6 or 7 pin):  Available in Best IC – less core (SFIC) and Schlage Large Format LFIC (PHL lever only).  IC models sold less core, IC cores sold separate if you’re not using your own
    • Strike:  4-7/8″ ASA strike included.  Full lip strike, and T strike available upon request
    • U.L. LISTED:  U.L., U.L.C. listed for “A” label (3 hour) single swing doors (4′ x 8′) / UL 10C / UBC 7-2 (1997) positive pressure, for single doors up to 4’0” x 8’0”
    • CERTIFICATIONS:  ANSI A156.2, Series 4000, Grade 1. Meets all applicable accessibility requirements of the ADA. U. L. Listed. BHMA.
    • WARRANTY:  Lifetime manufacturer limited warranty for all functions
    • COUNTRY OF ORIGIN:  Assembled in the USA using US and Foreign material.  This product meets the requirements of the Buy American Act.

    At the core of any grade 1 lock buying decision, beyond what/who you are protecting, is durability, and cost. Many times you must sacrifice durability for cost, or vice versa.  Not so with ANSI grade 1 locks by PDQ.  US made, this line of grade 1 door locks gives you the best in security, durability, and cost.  The XGT Spirit is the extremely heavy duty model, able to withstand over 3,000 in. lbs. of torque resistance on its lever trim.  This is simply unheard of for grade 1 cylindrical door locks, just ask any locksmith or trade professional in this industry.  PDQ has also solved the lever issue.  Up to now, manufacturers have touted their break away clutch levers as the end all be all way to head off damage to the lock.  Typically an attack on a lock is from applying physical leverage on the handle.  The problem with this, is many of the clutch designed door locks rotate to an angle which actually increases the ability to apply force, snapping off the trim and busting the latch which makes the lock inoperable.  PDQ's grade 1 door locks feature an industry leading chassis, spindle, and trim design which cannot be matched.  The lever on the XGT doesn't budge or sag when locked, and should anyone attempt to compromise this lock by forcing the lever, they would need in excess of 3000 in. lbs to move it.  In a challenging, or abusive door setting, you can run through several replacements of locks in a month, sometimes a week.  This is unnecessary, costly, and can be prevented by choosing the PDQ ANSI grade 1 XGT.  When someone goes to the door to grab this lock's handle, they will know 100% the door is locked, and because of the genius in engineering, the lever only needs to be rotated a mere 41° for full retraction of the latch.  Again, totally unheard of.

    Independent testing confirms 3000 in. lbs. of torque resistance. Additionally, XGT tests to more than 4 Million cycles (more than 5 times the BHMA Grade 1 requirement) with virtually no lever sag Download XGT Series Spec Sheet

    Basic

    Manufacturer PDQ Manufacturing
    Finish Satin Chrome, Oil Rubbed Bronze, Bright Brass, Satin Brass, Satin Bronze, Bright Chrome
    Product Headline Extreme Heavy Duty Grade 1 Office/Entry Lock
    Function Office/Entry
    Handle Type Lever Handle Door Locks
    Locking Device Cylindrical Latch
    Brand PDQ

    Door requirements

    Door Prep Standard 2 1/8 in. Cross-Bore

    Security

    Key Override Best IC, Standard Cylinder, Schlage IC

    Dimensions
