PDQ GT 115 Spirit

2 Day (biz.) Shipping Lead-time

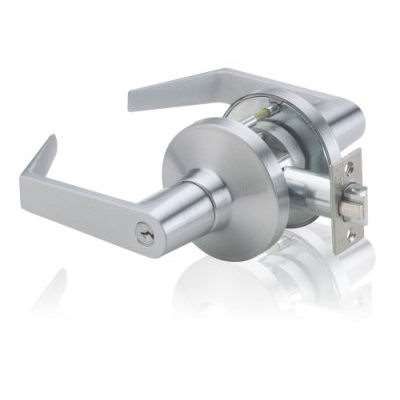

• ANSI Grade 1 Extra Heavy Duty cylindrical door lock
• Exceeds 2,100 in lbs. of torque resistance
• Storeroom Function (F86) — Latchbolt operated by inside lever or key in outside lever, outside lever always fixed
• Backset:  2-3/4″
• Handing:  Field Reversible
• Door Situation:  Fits left, right wood/metal swing doors
• Lever Style — Philadelphia. Miami & Boston designs available upon request
• Architectural Finish
• Door Thickness:  1-3/4″ ~ 2-1/4″
• Keys:  Two (2) keys provided per lock
• Keyway — Schlage / SCC.  May be custom ordered in keyways of most major manufacturers.
• Cylinder:  Brass 6-pin cylinder, keyed to 5 pins.
• Interchangeable Core (6 or 7 pin):  Available in Best IC – less core (SFIC) and Schlage Large Format LFIC (PHL lever only).  IC models sold less core, IC cores sold separate if you’re not using your own
• Strike:  4-7/8″ ASA strike included.  Full lip strike, and T strike available upon request
• U.L. LISTED:  U.L., U.L.C. listed for “A” label (3 hour) single swing doors (4′ x 8′) / UL 10C / UBC 7-2 (1997) positive pressure, for single doors up to 4’0” x 8’0”
• CERTIFICATIONS:  ANSI A156.2-2003, Series 4000, Grade 1. Meets all applicable accessibility requirements of the ADA. U. L. Listed. BHMA.
• WARRANTY:  Twenty-Five (25) year manufacturer limited warranty
• COUNTRY OF ORIGIN:  Assembled in the USA using US and Foreign material.  This product meets the requirements of the Buy American Act.
