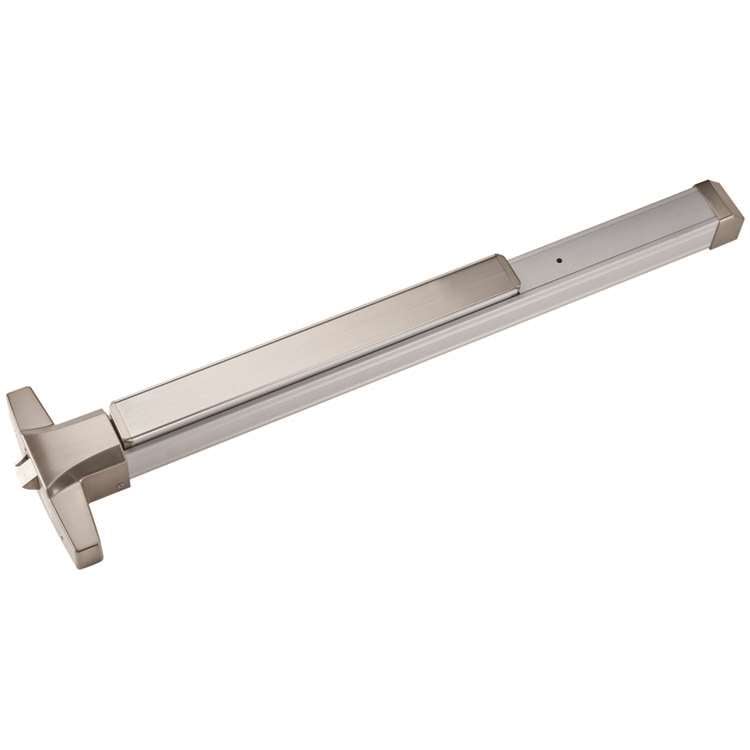

    PDQ American Eagle 6202R

    Narrow Stile Exit Only Rim Touchbar

    SKU: 6202RF-613

    PDQ



    Door Opening Width
    Finish
    Fire Rating

    Quantity left : 1

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $107.32

    Call For Price
    • Chassis: Corrosion resistant plated steel
    • Rail: Extruded aluminum
    • Touch Pad: Stainless steel
    • Latch: Pullman with dead latching, stainless steel – 3/4 in throw Rim
    • Projection: 3-1/8 in – 2-5/8 in when dogged
    • Hand: Device and trim are non-handed
    • Dogging: Hex key dogging standard – No dogging available on Fire Listed Devices
    • Fasteners: Device supplied with sex nuts, wood screws and machine screws
    • Certifications, Listings, Compliances: UL/ULC 305 listed for “Panic”, UL10C Listed for “Fire Exit Hardware” labeled for up to 3 hours for 4’0″ x 8’0″ maximum single, 8’0″ x 8’0″ maximum pairs – Certified to ANSI/BHMA 156.3-2001, Grade 1

    GoKeyless™ is a factory trained and authorized PDQ dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    For Narrow Stile storefront doors, this Grade 1 exit bar can't be beat for it's price. Quality built with the highest rating possible but at a fraction of the cost of most other Narrow Stile panic bars. Pair with our mechanical push button narrow stile locks, or our electronic narrow stile locks for access control on the external side of the door.  Or if your application requires a hard-wired keypad or card reader, you can pair with our Trine all-in-one rim strike.

    GoKeyless™ is a factory trained and authorized PDQ dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Basic

    Manufacturer PDQ Manufacturing
    ANSI Rating Grade 1 (Best)
    BHMA Rating Grade 1 (Best)
    Warranty 10 Year Limited Mechanical Manufacturer
    Brand PDQ

    Door requirements

    Door Handing Non-Handed

    Security

    Dimensions

    Door Thickness Minimum 1 3/4 in.
    Door Opening Width 36 in., 48 in.
    Door Stile Width 2 5/8 in.
