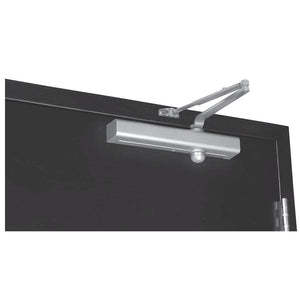

Norton 8301H

Multi-Sized Architectural Hold Open Door Closer

SKU: 8301H689

Features
Description
Specifications

Commercial grade, architectural non-handed door closer for interior/exterior use on non-fire rated doors
8301H Hold Open Model; Hold open achieved by means of friction or ball and detent/ roller. Friction hold open has a range of 90° to 180° using template location and mechanical adjustment. Ball and detent or roller hold open is effective in a range of 85° to 110°
Full Power Range Closer with adjustable sizes 1 through 6 to accommodate virtually any door opening width, and interior/exterior applications
Staked valves to prevent closer fluid leaks
Standard, separate and independent, latch, sweep and backcheck intensity valves. Provides for adjustment of door speed, and backcheck delivers extra cushioning when door is forcibly opened beyond its pre-adjusted limits
Cast aluminum body to accommodate interactive steel components and operating conditions

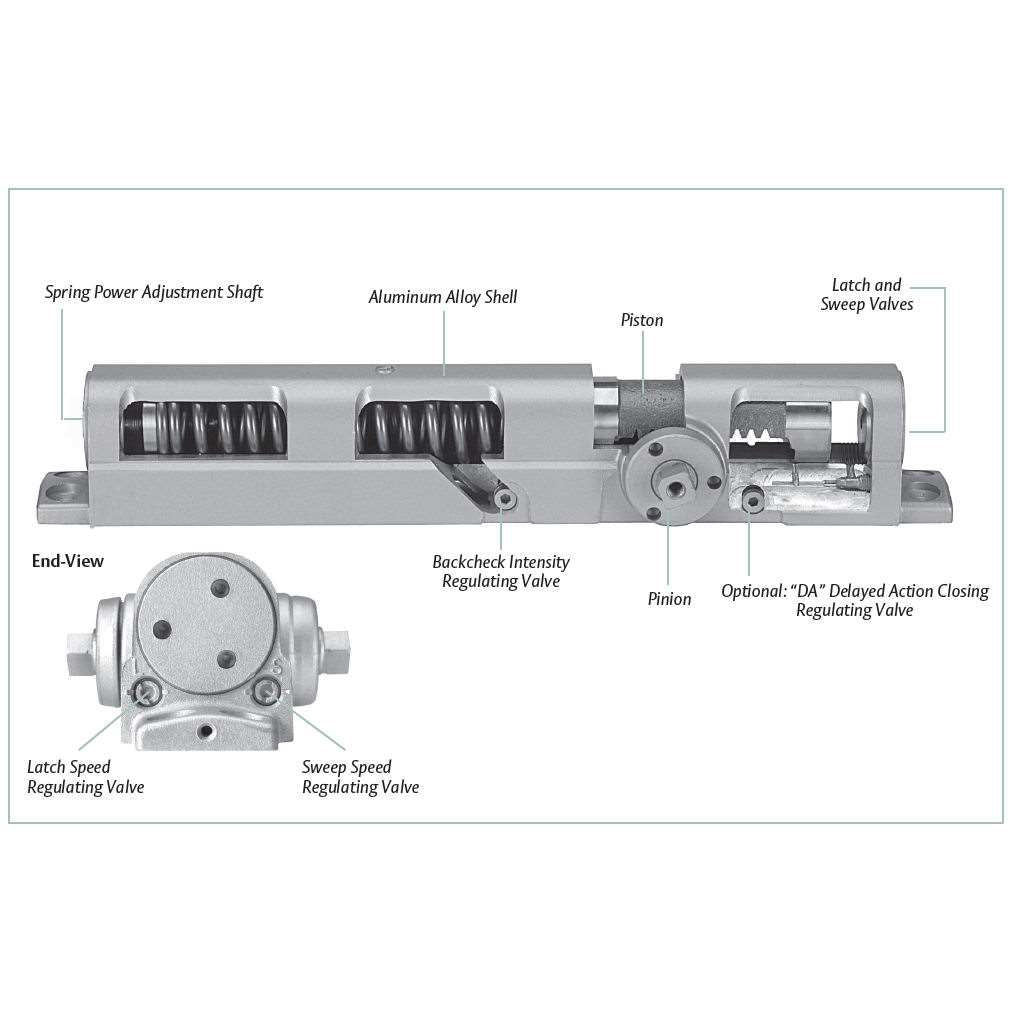

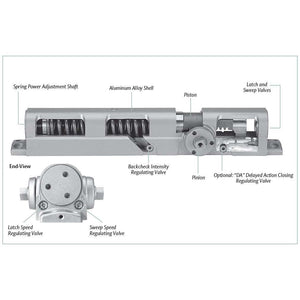

Rack-and-pinion design for smooth constant control of the door through its full opening and closing cycle
All standard arm applications, allow doors to swing 180 degrees, conditions permitting
Includes slim-line plastic cover
Full size template for fast, easy mounting
10-year limited warranty

Compliance Standards

ANSI/BHMA A156.4, Grade 1 certified
UL listed
UL10C compliant for positive pressure
ADA compliant

Specifications

Housing Dimensions: — 2-1/2″ (H) x 2-1/8″ (W) x 13″ (L)
Weight: Appx. 8lbs
1-1/4″ (32mm) diameter piston
5/8″ (16mm) diameter pinion journals
2-1/8″ (54mm) projection (standard covers)

Ask any security expert, or industry insider which brand of door closers are the best, and you will unanimously hear the name Norton. Norton is the father of design for the door closer in America, dating back to 1880. In fact, other closer brands, are directly modeled after Lewis C. Norton's creation. Along with all of their lines of traditional surface, commercial, security, and electrified door closers, this 8000 series hold open door closer is made right here in the USA at the Norton factory in Monroe, NC. What separates Norton from the rest of the pack is the quality of their rack and pinion construction, valve and spring design, and closer fluid composition. The Norton door closer is the best selling closer, and the door closer chosen by the professionals. Think of Norton door closers as the Titleist of closer hardware. Yes, there are other options, many in fact, just as in golf balls, but when you want performance, reliability, and the mental comfort your door is going to close, every time, without fail, even in conditions where there's a spike in traffic, kids are running furiously in and out the door, or the weather takes a turn for the worst, you want the Norton 8301H door closer. The Norton 8301H hold open door closer employs a double-arm assembly, and is designed to be installed on the pull-side of the door, making it the most power-efficient application for a door closer. Please note the Norton 8301 door closer arm projects directly out from frame. You'll want to ensure safe clearance for door/frame, and/or ceiling before installing.

Basic

Manufacturer	ASSA ABLOY / Norton
Finish	Aluminum, Dull Bronze, Statuary Bronze, Gold
Holding Weight	250 lbs
Brand	Norton

Door requirements

Security

Dimensions

Door Size	30 to 48 in.

Norton 8301H

Basic

Door requirements

Security

Dimensions
