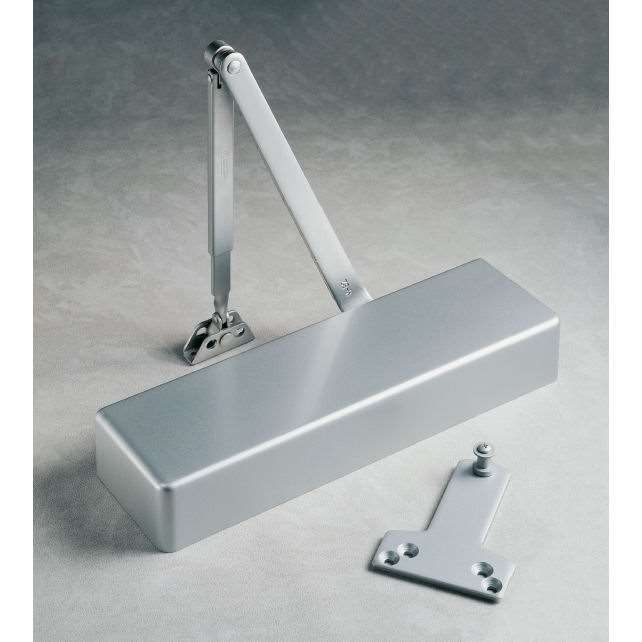

  • Norton 7500

    Multi-Sized Institutional Door Closer

    SKU: 7500689

    Norton



    Long - use closer, tested up to 10 million cycles.

    Finish

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $55.46

    Call For Price
    • Exceeds 10 million cycles (witnessed and verified by UL)
    • Tri-Style Packing; 7500 comes with screws, brackets and soffit plates to allow for regular, top jamb, and parallel arm installations
    • Low ceiling, top rail drop plates available
    • Non-handed
    • Rack-and-pinion design
    • Cast aluminum body
    • Spring Force Indicator (7500 Series only)
    • Staked valves
    • Standard, separate and independent, latch, sweep and backcheck intensity valves
    • Backcheck positioning valve
    • NorGlide
    • Molded plastic cover
    • All standard arm applications allow doors to swing 180°, conditions permitting
    • Self-drilling screws
    • Full-size template
    • 25-year limited warranty
    • Heavy-duty arms: Regular Rigid, Parallel Rigid, CloserPlus
    • CloserPlus Spring and Unitrol
    • Slide Tracks: push or pull side mounting

    Compliance Standards

    • ANSI/BHMA A156.4, Grade 1 certified
    • UL listed
    • UL10C compliant for positive pressure
    • ADA compliant
    • New York City, MEA 41-60-SM

    Specifications

    • Door Applications:  Interior doors 32″ to 54″ wide, Exterior doors 30″ to 48″ wide
    • Housing Dimensions: — 3-7/8″ (H) x 3-1/2″ (W) x 13-5/8″ (L)
    • Weight:  Appx. 12lbs
    • 2-3/16″ (56mm) projection
    • 1-1/2″ (38mm) diameter piston
    • 5/8″ (16mm) diameter pinion journals

    Talk to any school facilities manager about which door closers are the best, and you will hear the name Norton. Norton is the father of design for the door closer in America, dating back to 1880. In fact, other closer brands, are directly modeled after Lewis C. Norton's creation. Along with all of their lines of traditional surface, commercial, security, and electrified door closers, this 7500 series institutional door closer is made right here in the USA at the Norton factory in Monroe, NC. What separates Norton from the rest of the pack is the quality of their rack and pinion construction, valve and spring design, and closer fluid composition. The Norton 7500 door closer is the best selling closer for K-12, and colleges, and the door closer chosen by the professionals. Think of Norton door closers as the Titleist of closer hardware. Yes, there are other options, many in fact, just as in golf balls, but when you want performance, reliability, and the mental comfort your door is going to close, every time, without fail, even in conditions where there's a spike in traffic, kids are running furiously in and out the door, or the weather takes a turn for the worst, you want the Norton 7500. The Norton 7500 door closer employs a double-arm assembly, and is designed to be installed on the pull-side of the door, making it the most power-efficient application for a door closer. Please note the Norton 7500 door closer arm projects directly out from frame. You'll want to ensure safe clearance for door/frame, and/or ceiling before installing.

    Basic

    Manufacturer Norton
    Finish Aluminum, Black, Dull Bronze, Statuary Bronze, Gold
    Holding Weight 250 lbs
    Brand Norton

    Door requirements

    Security

    Dimensions

    Door Size 30 to 48 in. exterior, 32 to 54 in. interior
