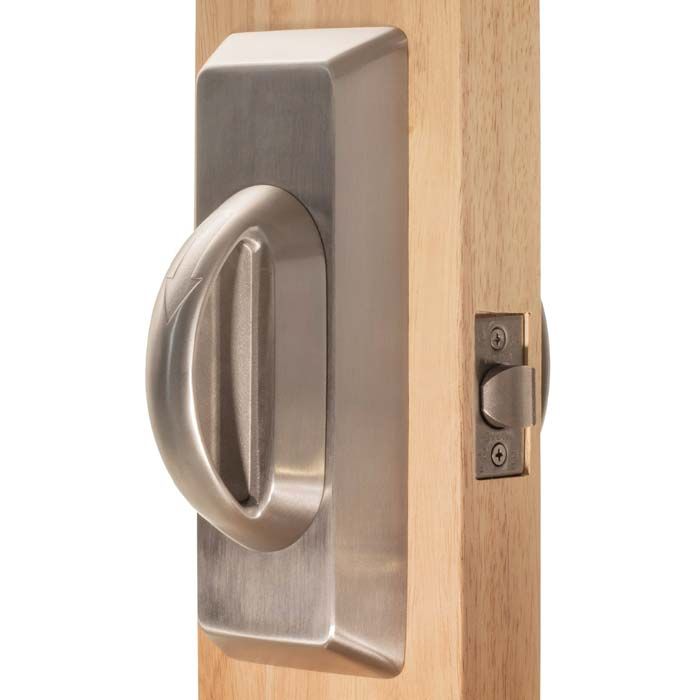

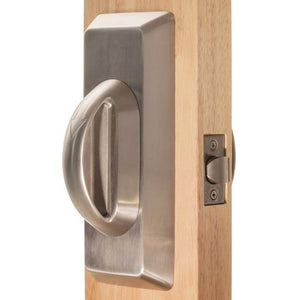

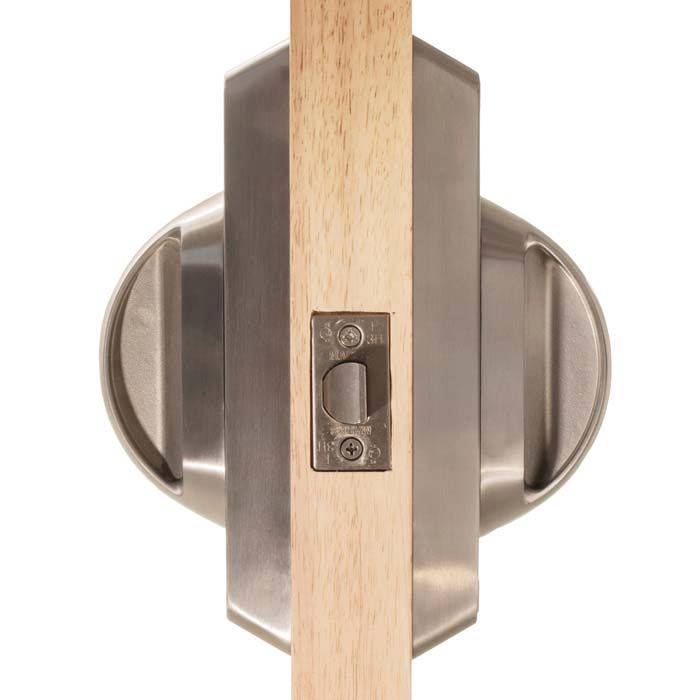

Marks LifeSaver 195BH Series D-Lig Slide
Behavioral Health Cylindrical Lockset
SKU: 195BHF/32D-G3
Marks
$1,300.00 $438.75 SAVE 66%
- 5- Point Ligature Resistant slide Trim
- Ergonomic solid cast Stainless Steel Slide, Slides down freely in the locked or unlocked position
- Escutcheon Plate solid cast Stainless Steel thru bolted for strength and easy installation
- Tamper Resistant mounting screws
- Backset: 2 3/4 in. Standard
- Latch: #1834, stainless Steel Nose
- Meets BHMA 156.34 Anti Ligature Trim Standard
- Strike: #1135, 4 7/8 in. ASA curved lip Strike
- Door Thickness: 1 3/4 in., consult factory for thicker doors
- Cylinder: Conventional Key n Knob Cylinder, Marks “C” Keyway, 6 pin w/2 keys – Available in IC and all OEM cylinder preps
- Marks Hi-Security Cylinder available
- Marks Stainless Steel Retractor - Long life 3X the BHMA Grade 1 cycle Standard
- Antimicrobial Finish available – Code AM
- Marks Lifetime Mechanical Warranty
- ANSI A156.2 Grade 1
- UL Listed 3Hr Fire Rating
- Available in Most BHMA ANSI Functions
Basic
| Manufacturer | MarksUSA |
|---|---|
| ANSI Rating | A156.2, Grade 1 (Best) |
| BHMA Rating | 156.34 Anti Ligature Trim Standard |
| Finish | Stainless Steel |
| Warranty | Lifetime Mechanical |
| Handle Type | Slide |
| Brand | Marks |
Door requirements
| Door Prep | Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s) |
|---|---|
| Strike | 4 7/8 in. |
Security
| Fire Rating | UL 3 hr. Latch |
|---|
Dimensions
| Door Thickness Minimum | 1 3/4 in. |
|---|---|
| Backset | 2 3/4 in. |
| Dimensions | 9 1/4 (H) x 5 1/4 (W) x 3 1/16 (D) in. |
