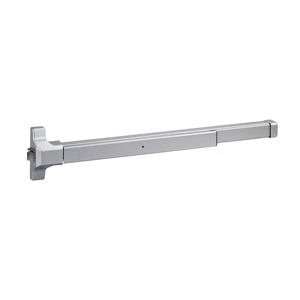

Lockey PB1100FR 3FT

• Complies with ANSI A117.a ADA requirements
• UL/cUL Listed
• Narrow Stile 2 1/2” – Door Thickness: 1 3/4” (standard)
• Device Length: 33” (36” doors)
• Field-sizable – Can be cut to 27”
• Latch Bolt: Stainless Steel powder metallurgy with 11/16” throw
• Deadlocking Latch: Stainless Steel powder metallurgy with 9/16” throw
• Weather resistant
• Materials: Plated Steel, Aluminum finish
• Fire-Rated (FR) – UL/cUL Listed 3 hr. fire-rated 10C, UBC 7-2 (1997)

Optional Trim

• 285-P Keyless Lever (Medium-Duty)
• 115-P Heavy-Duty Lever — Keyless Panic Trim
• 160-P Heavy-Duty Knob — Keyless Panic Trim

IMPORTANT: This panic bar works with most standard RIM mount locks – your lock must have a rotation of 42-55 degrees and a flat RIM tailpiece. If you are unsure if your lock will work with this panic bar, please contact our Sales department for more details.
