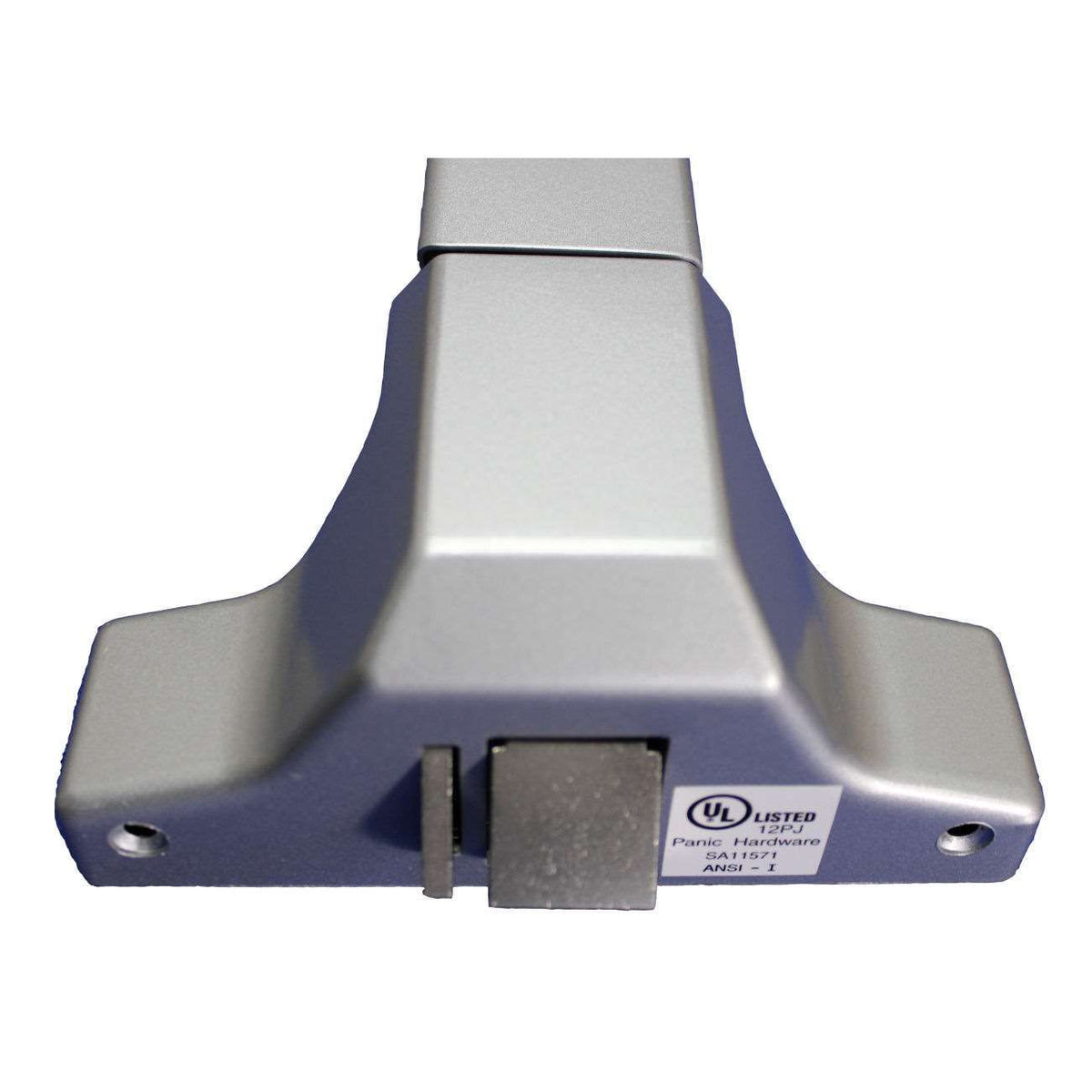

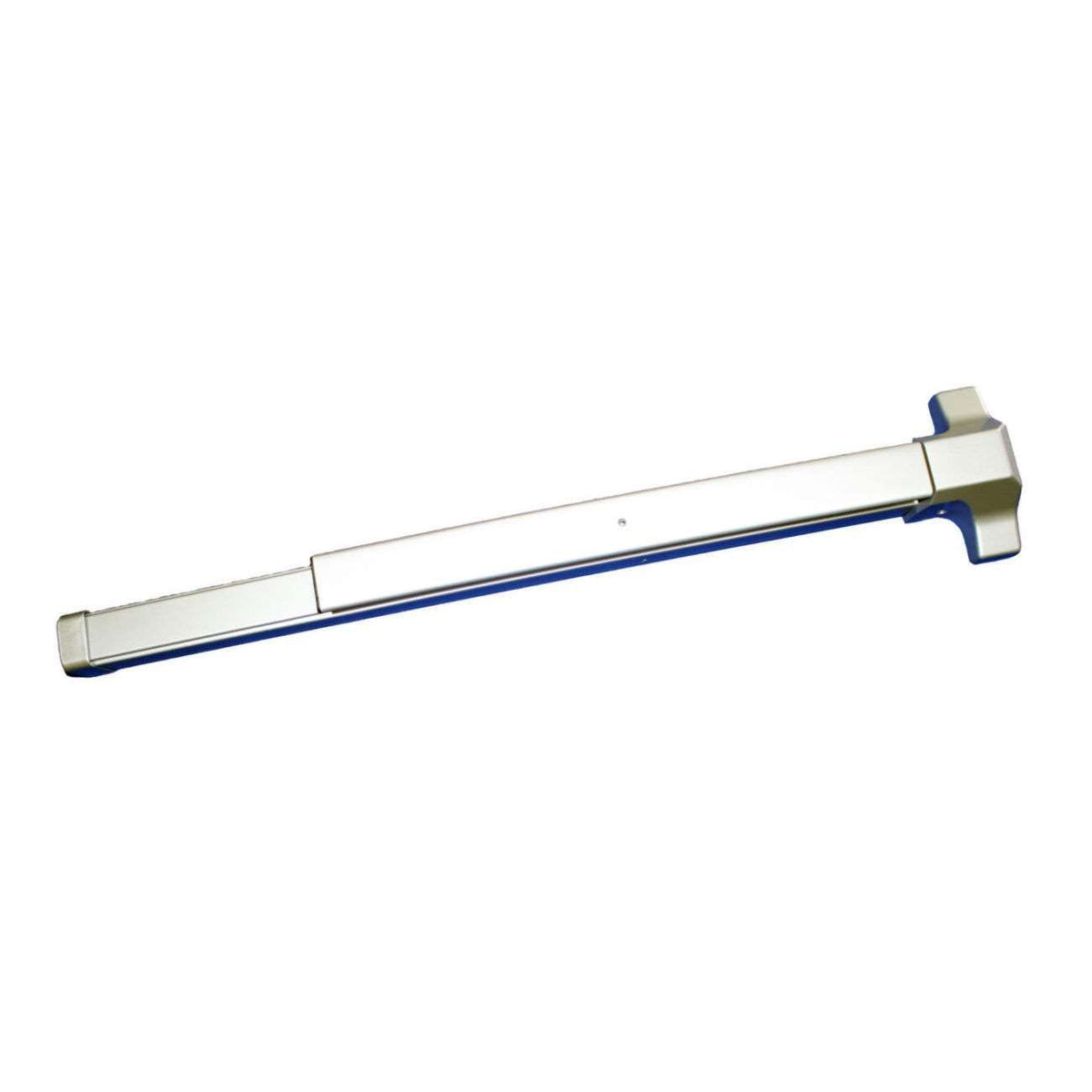

  • Lockey PB1100

    Grade 1, UL Listed Exit Touch Bar

    SKU: PB1100-AL-36

    Lockey



    Heavy duty keyless mechanical lock with passage.

    Door Opening Size
    Finish

    Quantity left : 2

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $33.07

    Call For Price
    • Complies with ANSI A117.a ADA requirements
    • UL/cUL Listed
    • Field-sizable – Can be cut to 27”
    • Device Length: 33 in. (36 in. doors), 42 in (48 in. doors)
    • Latch Bolt: Stainless Steel powder metallurgy with 11/16” throw
    • Deadlocking Latch: Stainless Steel powder metallurgy with 9/16” throw
    • Weather resistant
    • Materials: Plated Steel or Stainless Steel with Zinc or Stainless Steel head cover
    • Fire-Rated (FR) Available – UL/cUL Listed 3 hr. fire-rated 10C, UBC 7-2 (1997)

    Optional Trim

    • 285-P Keyless Lever (Medium-Duty)
    • 115-P Heavy-Duty Lever — Keyless Panic Trim
    • 160-P Heavy-Duty Knob — Keyless Panic Trim

    IMPORTANT: This panic bar works with most standard RIM mount locks – your lock must have a rotation of 42-55 degrees and a flat RIM tailpiece. If you are unsure if your lock will work with this panic bar, please contact our Sales department for more details.

    GoKeyless is a trained and authorized Lockey® dealer. Sales, service, and support. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.Does your old crash bar need replacing?  Are you looking for a compatible panic bar to finish off your new Lockey keyless exit locks?  The PB1100 is your answer.  With basic handyman tools, a little bit of time, and for a lot less money, you can install the PB1100 and have a new bar that is easy to use, and locks your doors tight.  The quality of the device, and operation of the push pad stacks up to bars going for double or triple the price.  A variety of keyless, and traditional exit trims are available below, and at checkout.

    GoKeyless™ is a trained and authorized Lockey® dealer. Sales, service, and support. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.


    Basic

    Manufacturer Lockey
    ANSI Rating A117.a, A156.3, Grade 1 (Best)
    BHMA Rating Grade 1 (Best)
    Warranty 5 Year Manufacturer
    Brand Lockey

    Door requirements

    Latch Bolt 11/16 in. throw

    Security

    Dimensions

    Door Thickness Minimum 1 3/4 in.
    Certifications ADA, UL/cUL Listed
    Door Opening Size 36 in., 48 in.
    Door Stile Width Minimum 2 1/2 in.
