Lockey ED61

Name: Lockey ED61
Brand: GoKeyless
SKU: ED61B
Price: 751.98 USD
Availability: InStock

Edge Panic Shield Security Kit with Panic Bar and Exit Trim

SKU: ED61B

Lockey

Fortify the exits. The Lockey ED61 Edge Panic Shield Security Kit with PB1100 Panic Bar and 285P Keyless Exit Trim provides a way to transform your gates into panic exits. Adjustable for installation on gates measuring from 28 up to 54 inches. Ideal for chain-link gates.

$1,079.45 $751.98 SAVE 30%

Features
Description
Specifications

Adds reliable panic/exit capability to gates
Shields from tampering and unwanted reach-through access
Edge Style Panic Shield, Silver and Black finish options
Edge Style Strike Bracket
PB1100 33 in. Panic Bar, upgrades available via special order
Panic Bar is field-sizable – Can be cut to 27 in.
285P Keyless Keypad Lock
Lock comes in matching Satin Chrome or Jet Black finish, other finishes available
Edge Style 285P Gate Box
Edge Style Max Guard
Edge Style Latch Protector
Jamb Stop
Ideal applications include pool gates, boat docks, oil fields, and more

Lockey 285P

100% mechanical, no wiring necessary
Takes the place of a keyed cylinder with a flat tailpiece
ADA lever for easy gripping
Features 2835 lock body
Weatherproof and affordable
Virtually indestructible components made of brass, stainless steel and die-cast zinc
Operates your current push bar program whether auto locking or passage
Fits left and right swinging doors
Installation is EASY – instructions included with order
Code can be 3-5 characters in length (a code with more or less characters requires a Tumbler Pack – sold separately at checkout)
Tens of thousands of codes to choose from

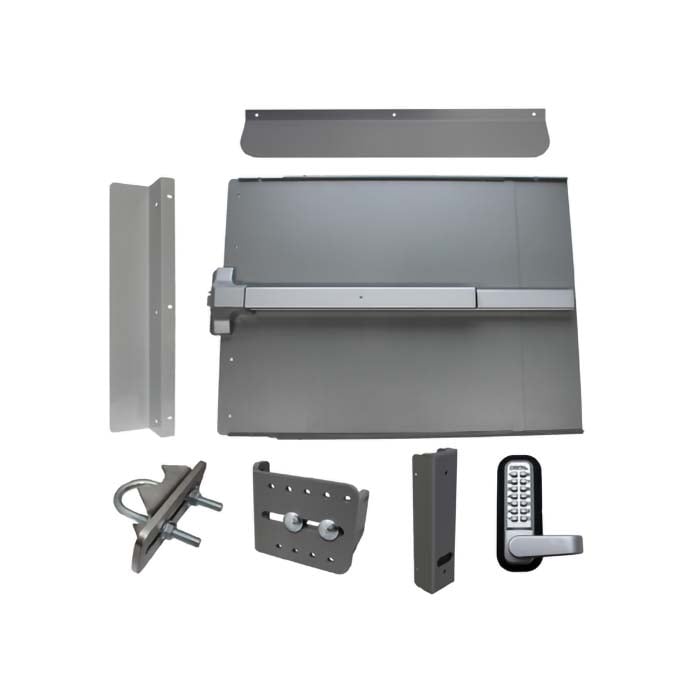

The Lockey ED61 Edge Panic Shield Security Kit with PB1100 Panic Bar and 285P Keyless Exit Trim provides a way to transform your gates into panic exits for quick egress. This kit includes Lockey’s edge style Panic Shield to prevent reach-through access, edge style strike bracket, PSGB200 lock gate box, edge style max guard, edge style latch protector, jamb stop, durable PB1100 33 in. panic bar, and 285P Keyless Exit Trim. The 285P adds keyless, pin code entry for easy exterior gate access. Adjustable for installation on gates measuring from 28 up to 54 inches. Ideal for gate applications in areas such as stadium concourses, airport perimeter access points, public pools and any other high traffic spaces that might need quick exits. When a gate latch and padlock just won’t cut it, Lockey has you covered!

Basic

Manufacturer	LockeyUSA
Color	Black\|Silver
Finish	Satin Chrome Marine Grade
Warranty	5 Year Mechanical Manufacturer
Locking Device	Panic/Exit
Brand	Lockey

Door requirements

Door Prep	Through-Bolt Hole(s)

Security

Dimensions

Dimensions	Gate Box: 7 (H) x 1 3/4 (W) x 1 1/2 (D) in.\|Guard: 26 (H) x 4 3/4 (W) x 3/4 (D) in.\|Jamb Stop: 5 (H) x 2 (W) x 1/4 (D) in.\|Latch Protector: 23 1/2 (H) x 6 (W) x 2 1/2 (D) in.\|Panic Shield: 24 (H) x 28-54 (W) x 1/2 (D) in.\|Strike Bracket: 4 1/2 (H) x 3 1/2 (W) x 1 1/4 (D) in.
Lock Dimensions	5 1/2 (H) x 1 5/8 (W) x 2 1/4 (D) in.
