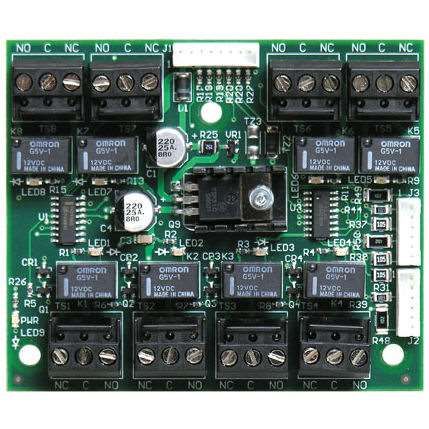

IEI M3-OM

• Adds 8 Form C Control relay outputs to a Max 3 Module
• Includes power LED and individual relay status LEDs
• Ability to specify a custom name and timer value for each of the 8 outputs
• Convenient "stackable" mounting to the Max 3 module
• Securely installs in Max 3 and MiniMax 3 cabinet
• Primary and back-up power from Max 3 or MiniMax 3 system
• Plug and play design

The Max 3 Output Module (M3-OM) adds 8 form C control relay outputs to a Max 3 Module. The module enables Secured Series customers to handle a greater number of applications such as elevator control, handicapped door control, and controlling or triggering a camera or DVR upon a card read or PIN code. Version 8.0 or higher of Hub Manager Professional Software is required for the Output Module. The Output Module is compatible with the Max 3 v2 or higher controller. Using the Max 3 Output Module will allow you to control multiple outputs for each Max 3 system user from any given reader or keypad. Hub Manager Professional Software will allow you to specify a custom name and timer value for each of the 8 outputs. Each output can be set to toggle or for timed operation. Any combination of these outputs can be assigned to user and the user will trigger these outputs when they gain access.
