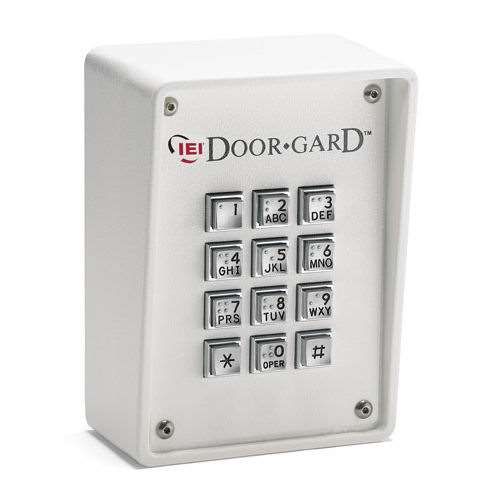

    Ruggedized Indoor/Outdoor Access Control Keypad

    SKU: 212R

    Linear



    Surface mount installation.

    Quantity left : 5

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $69.74

    Call For Price
    • Indoor/Outdoor weatherized keypad ideal for harsh settings
    • Cast aluminum one-piece housing and polyurethane treated metal face plate
    • Easy surface-mounting to wall, post, concrete walls, or gooseneck
    • 120 Users
    • Key press feedback via sounder and yellow LED
    • Built-in assignable sounder
    • Bi-color Red/Green LED indicates relay status
    • Non-volatile memory retains codes even if power is lost
    • 1-6 digit codes – digits can be repeated
    • Door relocks automatically
    • Two lever User Management
    • Durable metal Braille alpha-numeric keys
    • 4 on board programmable timed relays
    • Tamper loop functionality mode
    • Master Code must be entered to change user codes
    • Can program door to remain in unlocked position
    • Easy to program at the keypad
    • Functionality: Main relay controls any device requiring on/off switch — such as electric strike, or maglock. Request to exit input trigger
    • Accepts 10-30 Volts DC; 12-24 Volts AC – auto adjusting
    • Well written and easy to understand installation and programming instructions included
    • Optional printer interface

    Specs

    • Current draw: 108 mA maximum (add 30 mA for each additional relay)
    • Operation voltage: 12-24 VAC/VDC – auto adjusting
    • Dimensions: 3.75” (W) x 5.25” (H) x 2.5” (D)
    • Temperature tolerance: -20F to 130F

    Warranty

    • Linear IEI warrants its 212R products for two (2) years after the shipping date to be free from defects in material and workmanship, when they have been installed in accordance with the manufacturer’s instructions, and have not been modified or tampered with

    A common challenge organizations of all sizes face is ensuring only authorized individuals have access.  Once a business grows to more than a few employees in size, maintaining control over the number of keys in circulation can quickly become a nightmare.  It doesn't take long even for the smallest enterprises to experience the delays, costs, and headaches of a lockout caused by lost keys.  One of the best things you can do right now for your sales office, branch, or building is eliminate your reliance on keys.  Linear IEI makes this easy to do with their 212R R style ruggedized keypad.  The 212R can handle the elements in even the absolute worst places on the planet, is completely stand-alone for easy setup and programming, and lets you quickly manage adding and deleting personnel.  Its vandal resistant design takes abuse in a high crime area too.  With the Linear IEI 212R keypad, you can stay focused on growing your sales, instead of the growing problems you will get confronted with because of pilfered, copied, lost, or forgotten keys.  Supporting up to 120 users, the Linear IEI 212R provides scalability.  As you add staff, your cost per user for this keyless entry system continues to decline, saving you even more in the long run.

    Basic

    Manufacturer Nortek Security & Control
    Reader Type Keypad
    Brand Linear

    Door requirements

    Security

    Dimensions
