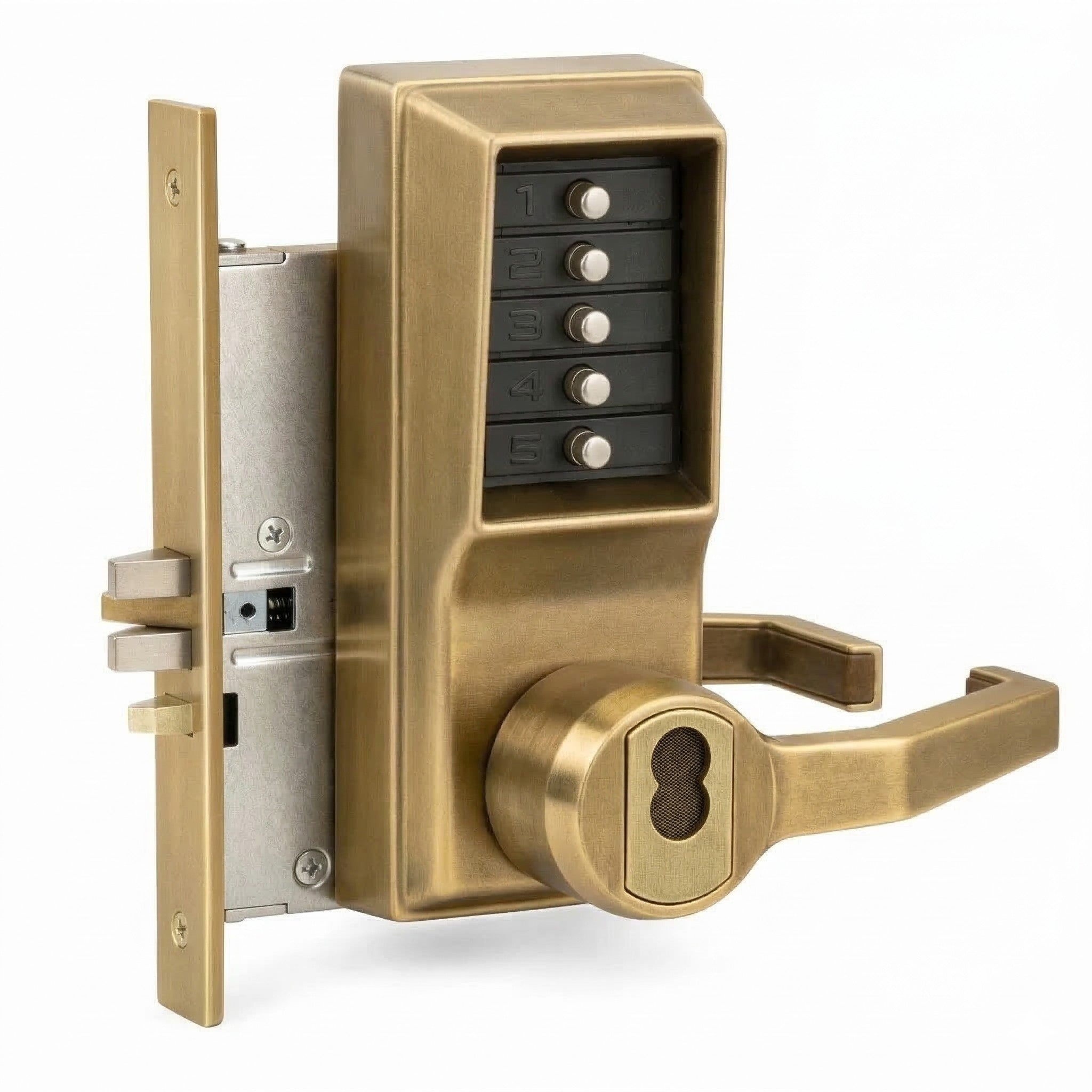

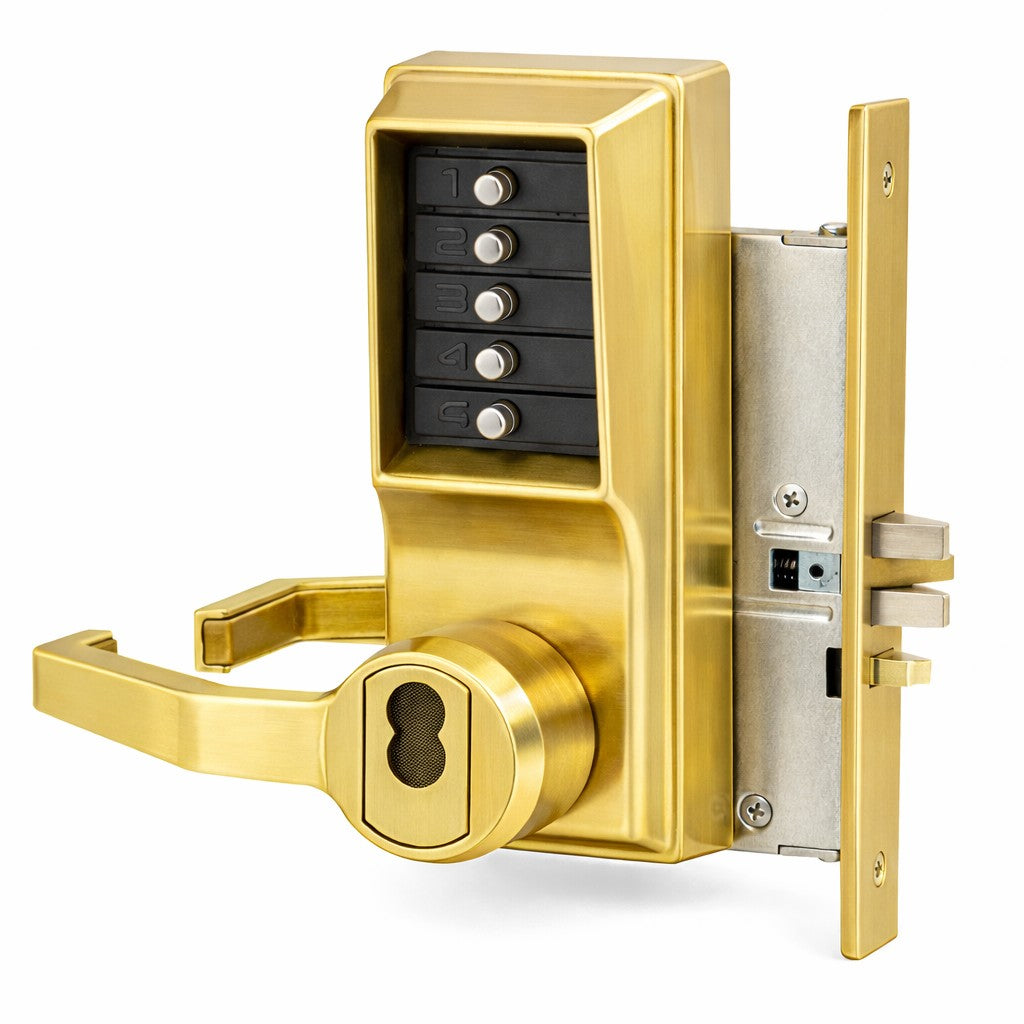

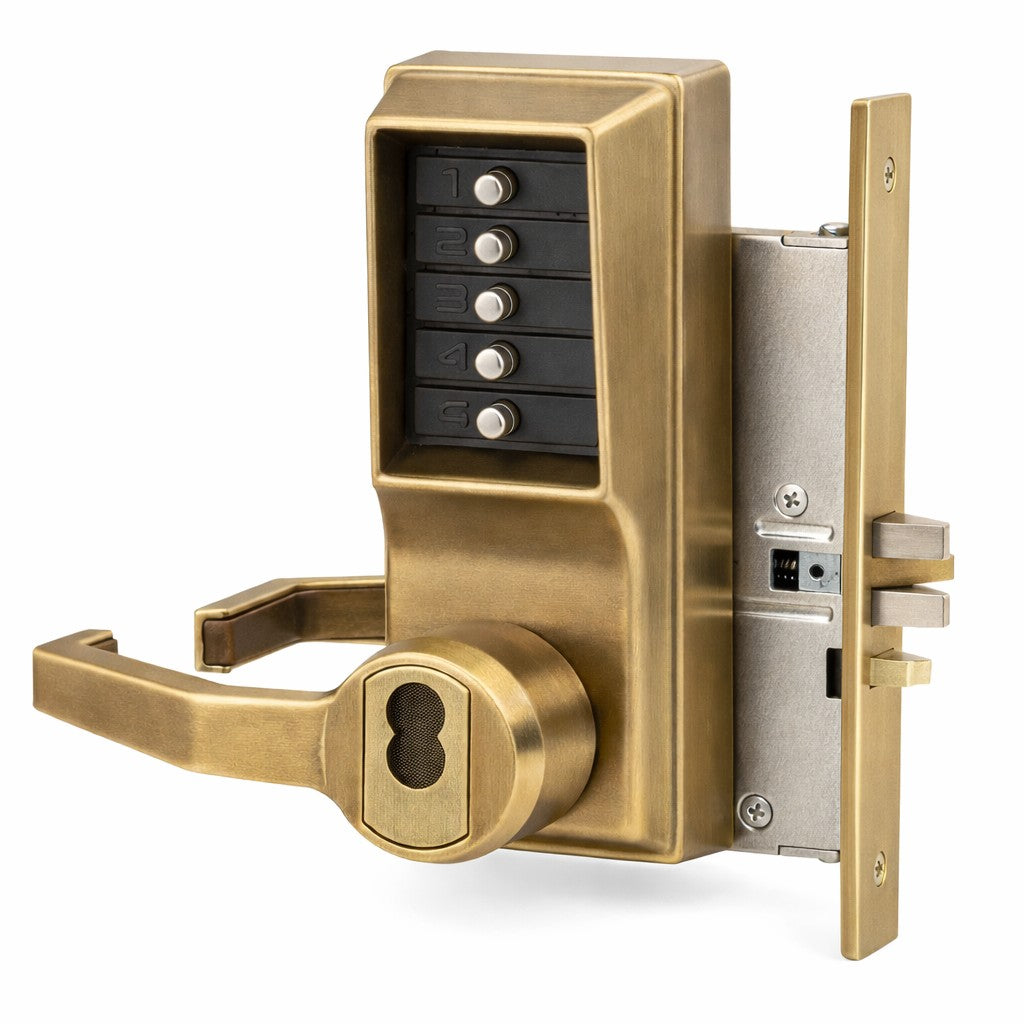

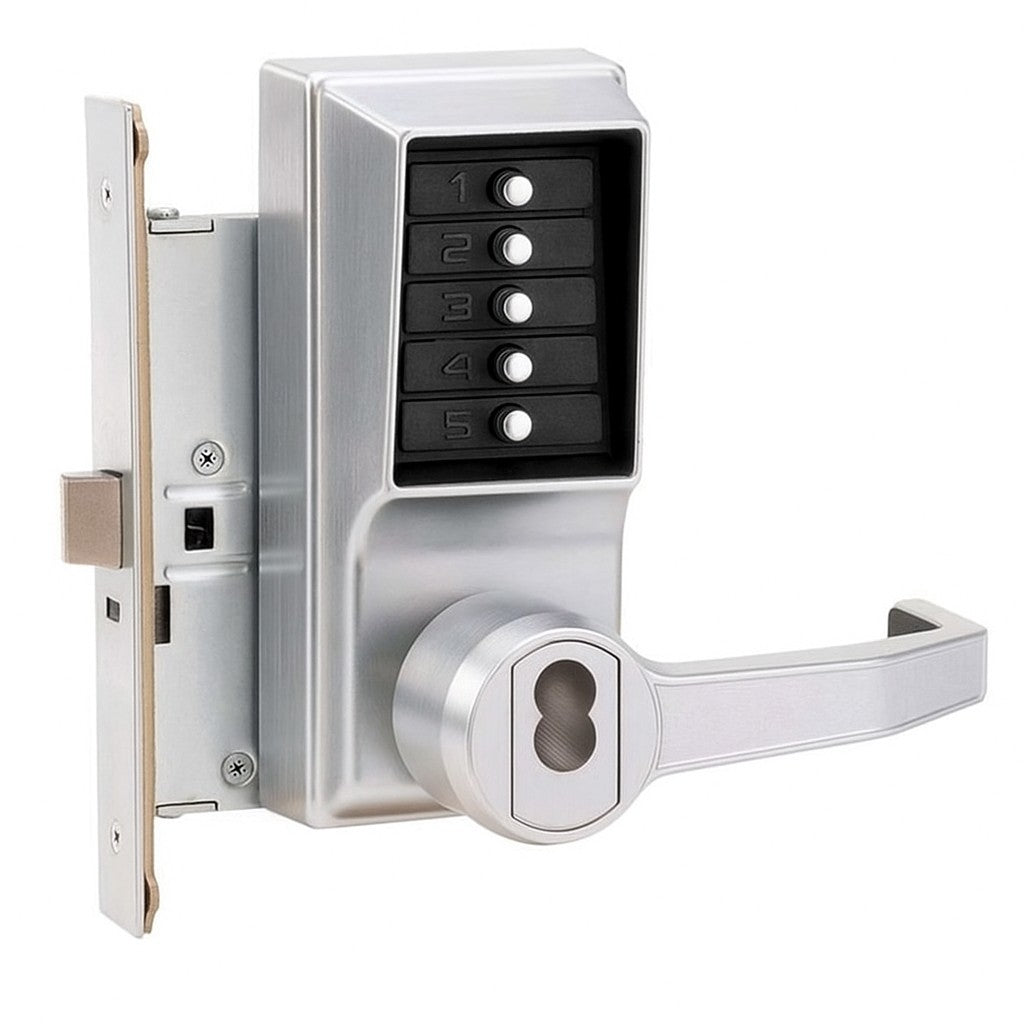

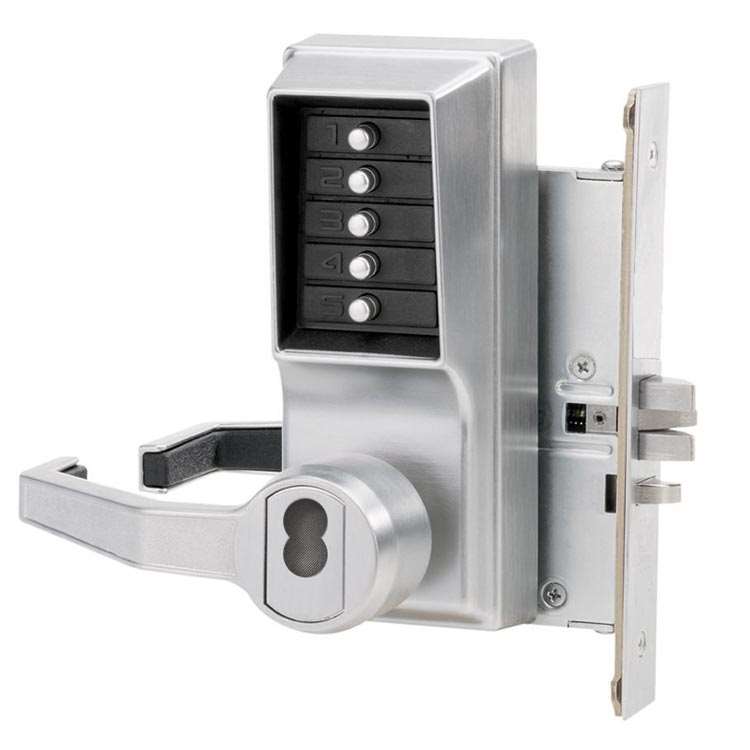

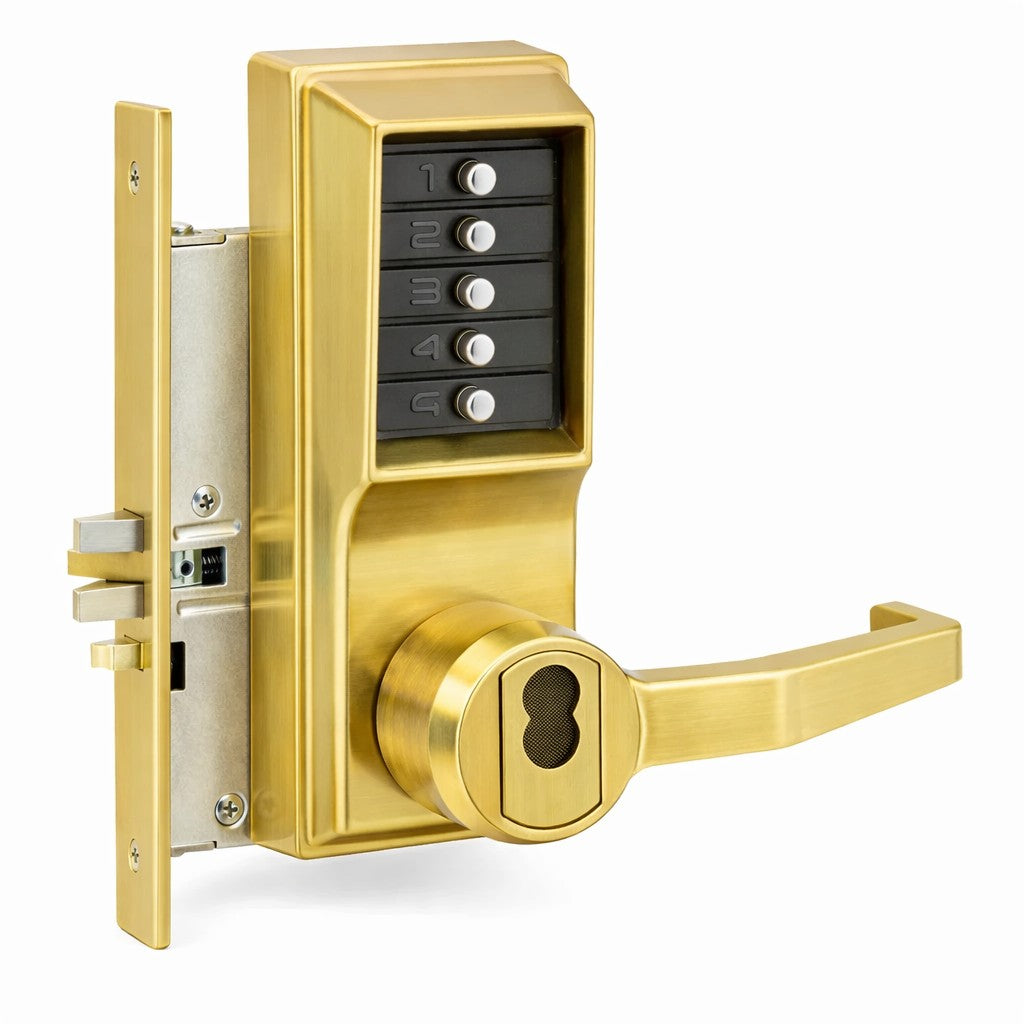

  • dormakaba Simplex 8146

    Push Button Grade 1 Mortise Lock

    SKU: R8146C-5

    dormakaba Simplex



    The Simplex 8146 is a stand-alone pushbutton lock designed to retrofit standard mortise setups. Highly weather resistant and simple to operate. Just enter your unique code. Vandal resistant and ideal for use in high-traffic commercial, institutional, and government buildings. Accepts removable inter-changeable key cores (sold separate).

    Door Handing
    Finish
    Key Override

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $97.27

    Call For Price
    • ADA compliant lock
    • 100% Mechanical push button access control lock
    • Thousands of possible codes combinations
    • Auto-locking with passage mode and lockout feature - activated from inside
    • Covers existing standard 86 mortise preps - mortise locking mechanism is 1 1/4" wide by 8" tall
    • Lock mechanism is two-piece 3/4" latch - can be ordered with a 1" deadbolt in 8148 model
    • Fits left and right swinging doors
    • All hardware and instructions included with order
    • Low maintenance, no batteries or wires
    • Fits nearly all hinged doors
    • Key override feature using an IC core
    • Warranty: 3-year manufacturer



    GoKeyless™ is a factory trained and authorized Kaba Simplex® dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Simplex 8146 - Combination Entry & Key Override (Less core - key cores sold separately at checkout) Ultra-reliable mortise combination lock from the leader in top of the line security solutions, Kaba Ilco.  Kaba has been making high quality security products for over 100 years.  The Simplex 8100 Series is a stand-alone pushbutton lock designed to retrofit standard mortise setups.  The 8100 is highly weather resistant and simple to operate.  Entry is gained via a 1 to 5 digit code that is sequential.  Vandal resistant, the Simplex combination locks have found widespread acceptance in high-traffic commercial, institutional, and government buildings.


    GoKeyless™ is a factory trained and authorized dormakaba Simplex® dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Basic

    Manufacturer dormakaba USA Inc.
    Lock Features Passage Mode
    Solution Mechanical
    Warranty 3 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits
    Locking Device Mortise
    Brand dormakaba Simplex

    Door requirements

    Door Handing Left Inswing, Left Outswing, Right Inswing, Right Outswing

    Security

    Code Length 1 to 5 Digits
    Code Capacity 1
    Fire Rating 3-hour UL/ULC fire rating for A labeled doors
    Key Override Best IC, Corbin IC, Medeco/Yale IC, Sargent IC, Schlage IC

    Dimensions

    Door Thickness Minimum 1 3/8 in.
    Door Thickness Maximum 2 1/4 in.
    Dimensions 7 3/8 (H) x 3 1/8 (W) x 3 3/16 (D) in.
    Door Stile Width Minimum 5 in.
    Weight 9.8 lbs
