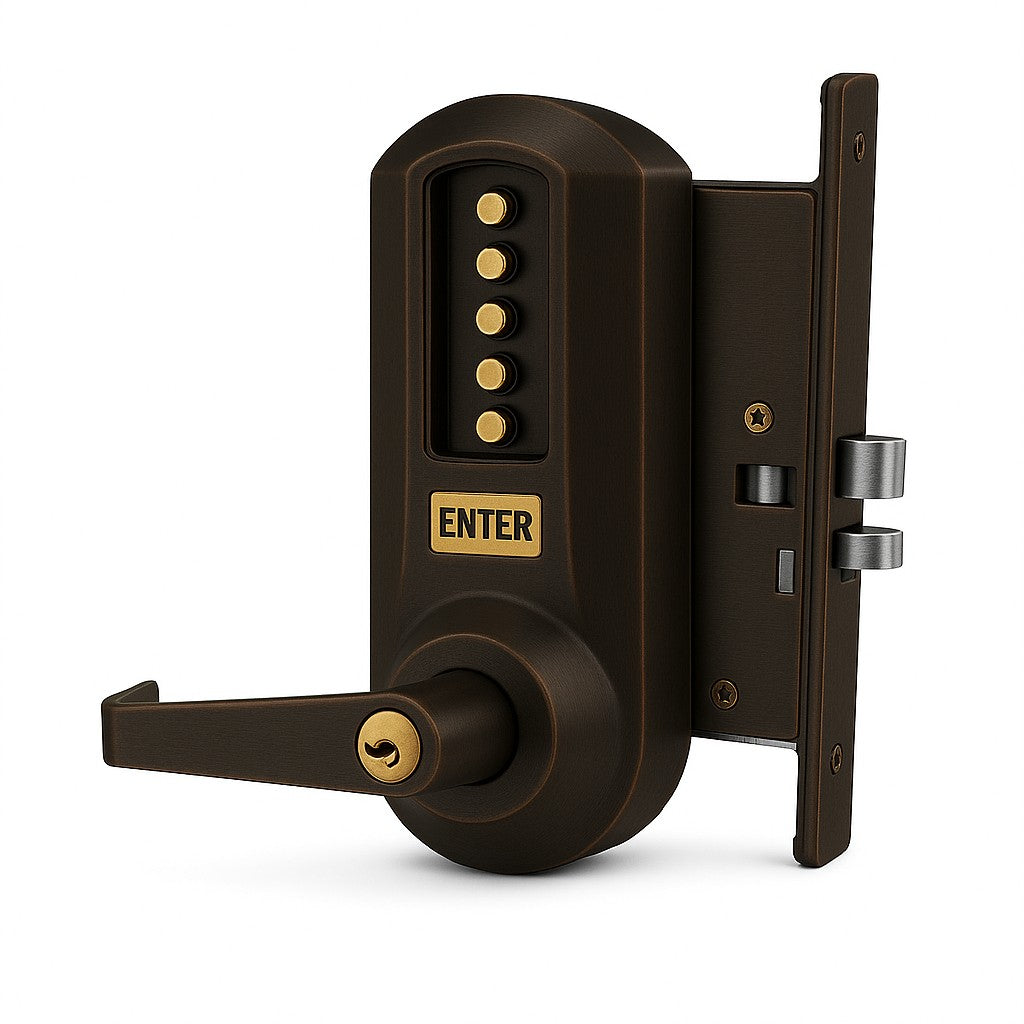

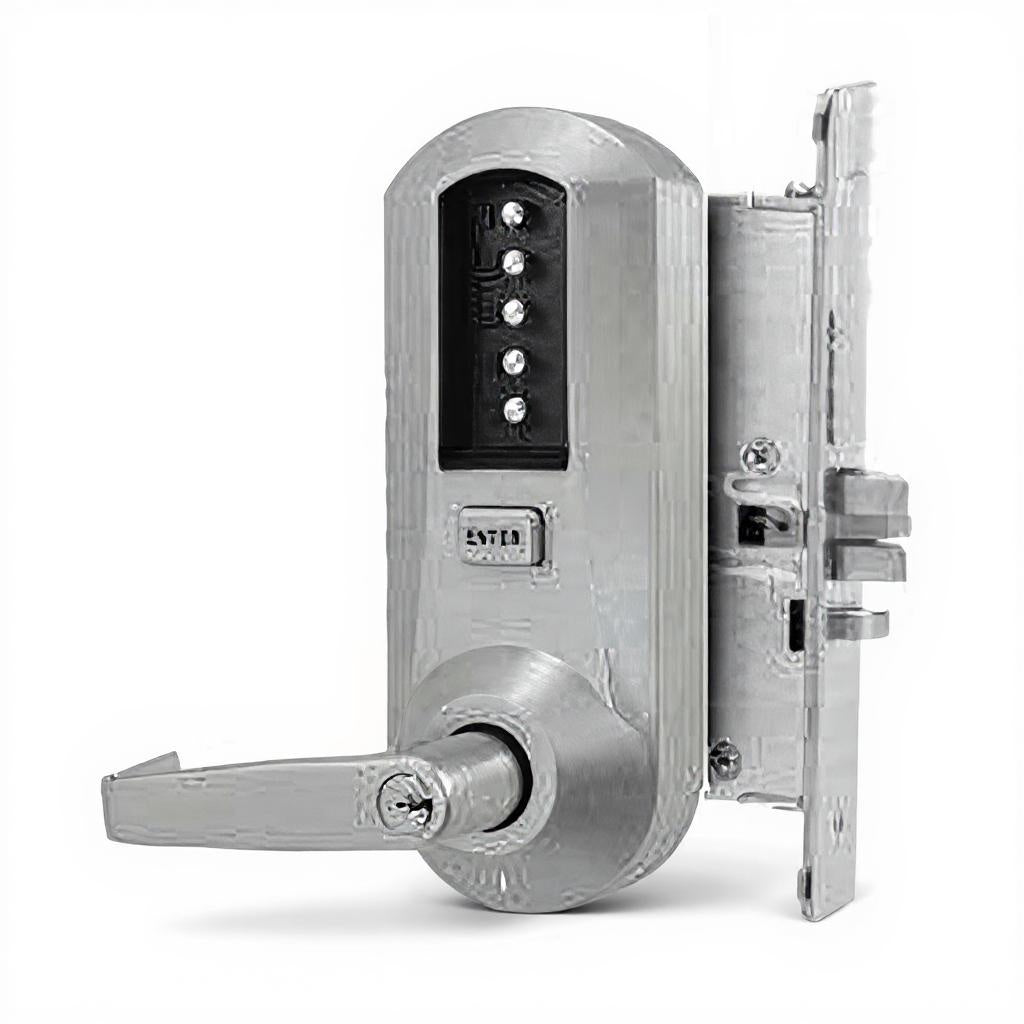

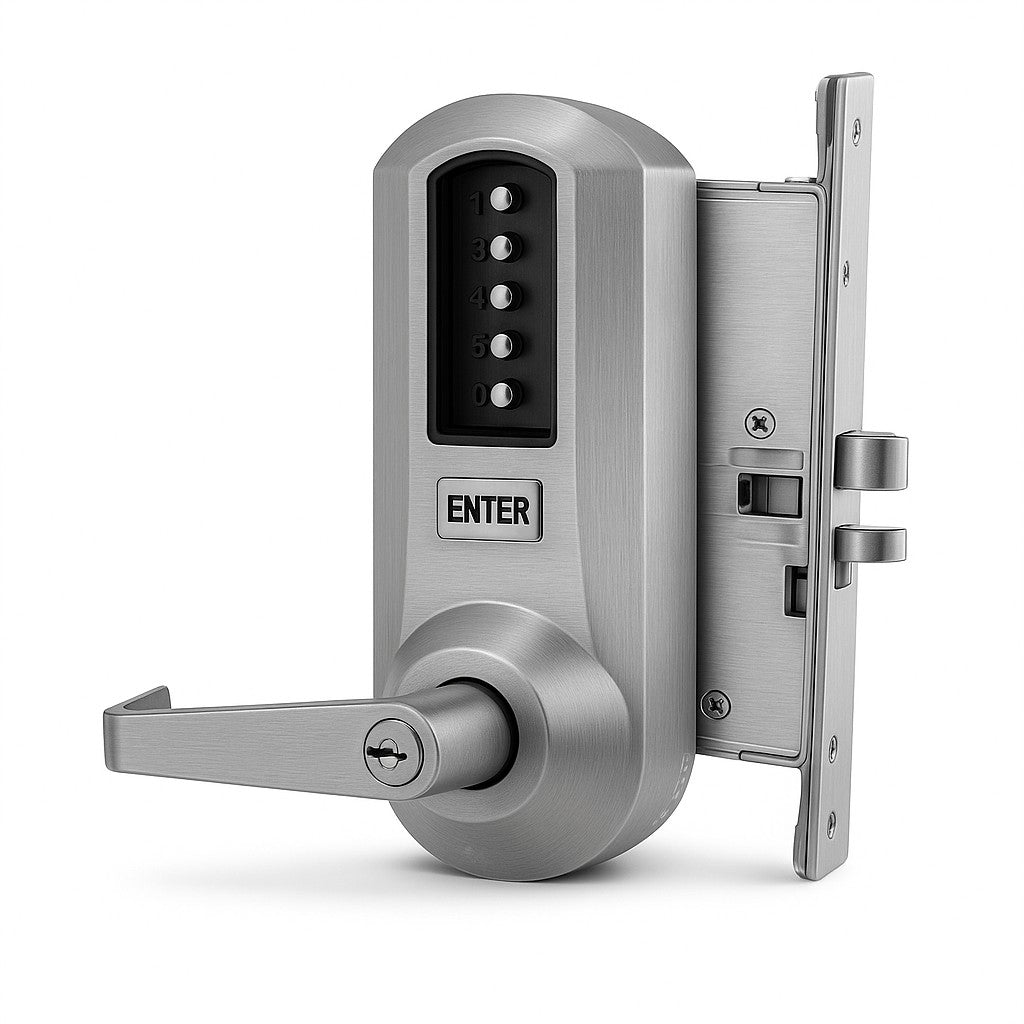

dormakaba Simplex 5066

Name: dormakaba Simplex 5066
Brand: GoKeyless
SKU: 5066XSWL26D41
Price: 545.23 USD
Availability: InStock

Extra Heavy-Duty Combination Mortise Lock

SKU: 5066XSWL26D41

dormakaba Simplex

Come and go without the burden of keys. The Simplex 5066 Extra Heavy-Duty Combination Mortise Lock allows you and your employees to ditch the keys. No more waiting for someone to show up, or for a locksmith to let you in. This lock is completely weatherproof, and is preferred for high-use, and harsh environments. Mounting hardware included.

$720.00 $545.23 SAVE 24%

Features
Description
Specifications

USA made in ISO 9001 Certified 150,000 square-foot factory located in Winston-Salem, NC
Extra heavy-duty American Steel Mortise (ASM) lock
ADA compliant
100% mechanical combination entry with free egress
Satin chrome finish
Thousands of possible codes combinations
Change code with change tool (provided) from exterior side
Auto-locking security
Covers existing standard 86 mortise preps
Lock mechanism is two-piece 3/4″ latch
Fits left and right swinging doors
All hardware and instructions included
Low maintenance, no batteries or wires
Fits nearly all hinged doors
Key override: Furnished with a 6 pin conventional Schlage cylinder with Schlage C keyway for emergency access
3-year manufacturer warranty

Improved Convenience & Protection for Your Business
5 buttons on this lock's keypad allow you and your employees to come and go without the burden of keys. No need to wait for what can seem like forever for someone to show up with the spare, or for a locksmith to let you in. You won't have to worry about keys being left in the keyhole, or an employee dropping the keys in the parking lot, only to be picked up by someone who could ransack your place and rob you. It replaces your current mortise lock in under 25 minutes time. The sturdy levers, buttons, and housing are made from long-lasting nickel alloy. Rated Grade 1 by ANSI/BHMA, the lock is completely weatherproof, and is preferred for high-use, and harsh environments. Mounting hardware included.

Basic

Manufacturer	dormakaba USA Inc.
ANSI Rating	A156.2\|Grade 1 (Best)
BHMA Rating	Grade 1 (Best)
Keyway	Schlage C
Lock Features	Auto Relocking
Solution	Mechanical
Warranty	3 Year Manufacturer
Handle Type	Lever Handle Door Locks
Access Type	Key Keypad - Digits
Locking Device	Mortise
Brand	dormakaba Simplex

Door requirements

Door Handing	Reversible
Door Prep	Mortise\|Through-Bolt Hole(s)

Security

Code Length	1 to 5 Digits
Code Capacity	1
Fire Rating	3-hour UL/ULC fire rating for A labeled doors

Dimensions

Exterior Dimensions	8 7/8 (H) x 3 3/8 (W) x 3 3/16 (D) in.
Inside Dimensions	["8 7/8 (H) x 3 3/16 (W) x 2 1/8 (D) in."]
Door Thickness Minimum	1 3/8 in.
Door Thickness Maximum	2 1/4 in.
Dimensions	Mortise Lock Casing: 5 7/8 (H) x 4 1/8 (W) in.\|Mortise Lock Faceplate 8 (H) x 1 1/4 (W) in.
Door Stile Width	Minimum 5 in.
Exterior Dimensions	8 7/8 (H) x 3 3/8 (W) x 3 3/16 (D) in.
Weight	12 lbs
