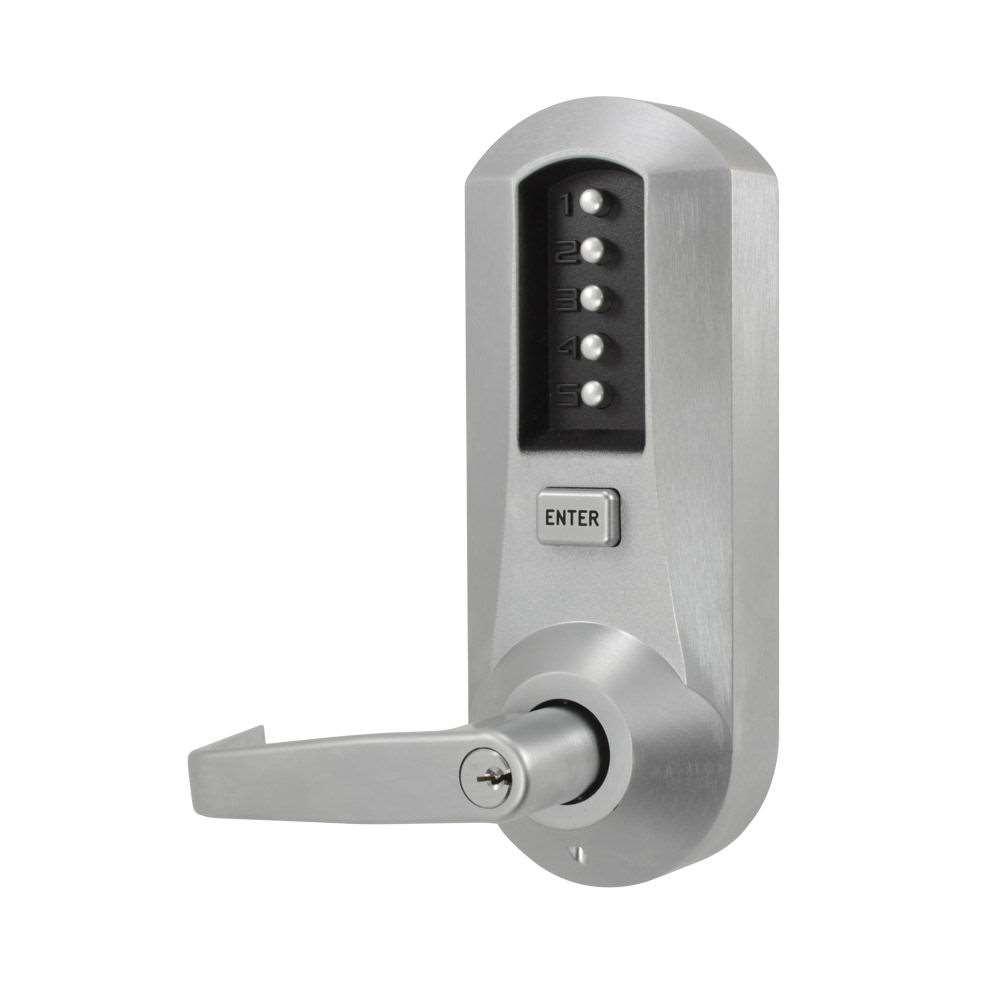

dormakaba Simplex 5051

Name: dormakaba Simplex 5051
SKU: 5051XSWL26D41
Price: 571.27 USD
Availability: InStock

Heavy-Duty Grade 1 Pushbutton Lock

SKU: 5051XSWL26D41

🔑 Standard key override models include a key cylinder. IC models require a removable core (IC core), sold separately or supplied by the customer.

Meets D.O.D. (Dept. of Defense) Specs

$571.27

Manufacturer List Price (MSRP): $967.00

New, genuine dormakaba Simplex product

Finish

Satin Chrome sold out

Dark Bronze sold out

Key Override

Standard Cylinder sold out

Best IC

Schlage IC sold out

Qty

⚠️ Low stock — order soon

EXTENDED PROTECTION PLAN

3 Years of SHIELD Coverage

Product Replacement | Extended Return Policy | Price Protection

Terms and Conditions

$114.25

Add shield product

Terms and Conditions

›

Call For Price

dormakaba Simplex 5051 - Satin Chrome / Standard Cylinder

- +

Features
Description
Specifications

ADA compliant lock
100% Mechanical push-button lock
Thousands of possible codes combinations
Change code with change tool (provided) from interior side - meets Dept. of Defense standards
Auto-locking with passage mode feature (in passage mode - set from inside - lock will latch shut but not lock, allowing for code-free entry)
Covers existing standard ASA 161 door hole
Extra Heavy Duty Latch-bolt with deadlocking plunger
Fits left and right swinging doors
All hardware and instructions included with order
Low maintenance, no batteries or wires
Fits nearly all hinged doors
Includes mechanical key override for emergency access in standard model. IC core models are shipped less core (you may use your own core, or order one from us at checkout)
Backset: 2 3/4" included (2 3/8" available at checkout) How do I measure?
3-year manufacturer's warranty

**Lock shipped standard with Schlage brand conventional cylinder for key override in 5021, 5031, and 5041 non-IC models.

Simplex 5051 - Combination Entry (change codes from interior; meets Dept. of Defense standards) with Passage Feature & Key Override
Industrial strength combination lock from the leader in top of the line security solutions, dormakaba. dormakaba has been making high quality security products for over 100 years. The Simplex 5000 Series is an ANSI rated Grade 1 security lock that is highly weather resistant. Entry is gained via a 1 to 5 digit code that is sequential. Vandal resistant, the Simplex series of PIN based locks have found widespread acceptance in high-traffic commercial, institutional, and government buildings.

Basic

Manufacturer	dormakaba USA Inc.
ANSI Rating	A156.2, Grade 1 (Best)
BHMA Rating	Grade 1 (Best)
Lock Features	Passage Mode
Solution	Mechanical
Warranty	3 Year Manufacturer
Handle Type	Lever Handle Door Locks
Access Type	Keypad - Digits
Locking Device	Cylindrical Latch
Brand	dormakaba Simplex

Door requirements

Door Handing	Reversible
Door Prep	Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s)
Door Opening	Standard
Door Thickness Minimum	1 3/8 in.
Door Thickness Maximum	2 1/4 in.
Backset	2 3/4 in.

Security

Code Length	1 to 5 Digits
Code Capacity	1
Fire Rating	3-hour UL/ULC fire rating for A labeled doors

Dimensions

Exterior Dimensions	8 7/8 (H) x 3 3/8 (W) x 3 3/16 (D) in.
Inside Dimensions	["8 7/8 (H) x 3 3/16 (W) x 2 1/8 (D) in."]
Door Stile Width	Minimum 5 in.
Exterior Dimensions	8 7/8 (H) x 3 3/8 (W) x 3 3/16 (D) in.
Weight	9.25 lbs
