dormakaba E-Plex EP-EPRISE3-SW

Purchase this "software only" when using a Windows Mobile Pocket PC HP Models iPAQ hx2490b, iPAQ hx2490c, or iPAQ hx4700. Otherwise, be sure to get the Implementation Kit

Package Includes

• Software Disc, p/n: EP-EPRISE3-SW

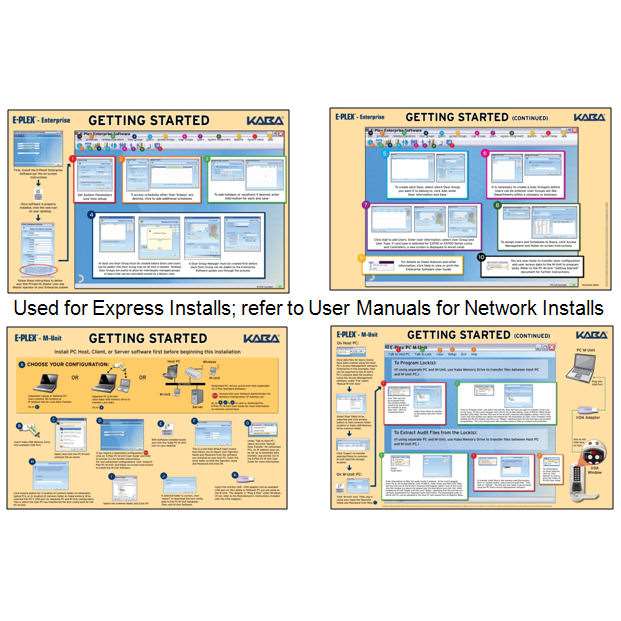

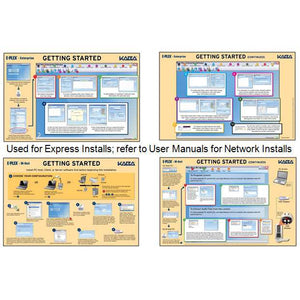

• Installation Instructions

Architecture & Database

• Server/Client based, runs either in Standalone mode on a single PC or in a networked environment on a server PC and multiple client PCs
• Robust SQL based database using encryption to protect and manage securely all E-Plex user-lock related system database

Capabilities

• Easily manages up to 3,000 users per lock; unlimited users in the database
• Maintains up to 30,000 audit events in each lock including emergency mechanical override key usage for tracking purposes
• 16 access schedules per lock; unlimited schedules in the database
• 32 holidays/vacations per lock; unlimited holidays in the database
• Guest/Visitor management with programmable expiry from 1 day to a year
• Very flexible management of Service users who have PIN only access—Service users can have either one time access only, or 1 through 96 hour expiry access, or access with no expiry
• Can quickly assign a new user to multiple doors, or assign multiple users to one door with the use of Access Groups concept, thus saving enormous data entry at the PC by the operator

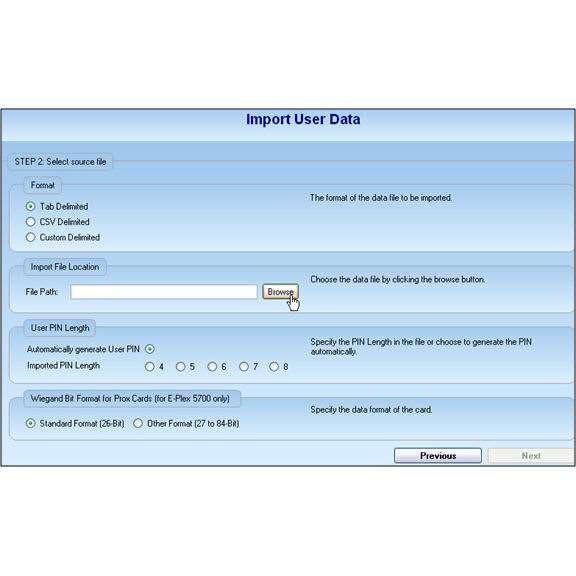

• Can import and export thousands (20,000) of user profile records (names, PROX card IDs and/or PINs) from/to an external database source for managing large user profiles
• Each customer site's computer database and that in the locks and the handheld programming/auditing unit (M-Unit) are all fully protected with the site's unique internal communications key, maintained by the software for utmost data integrity and security

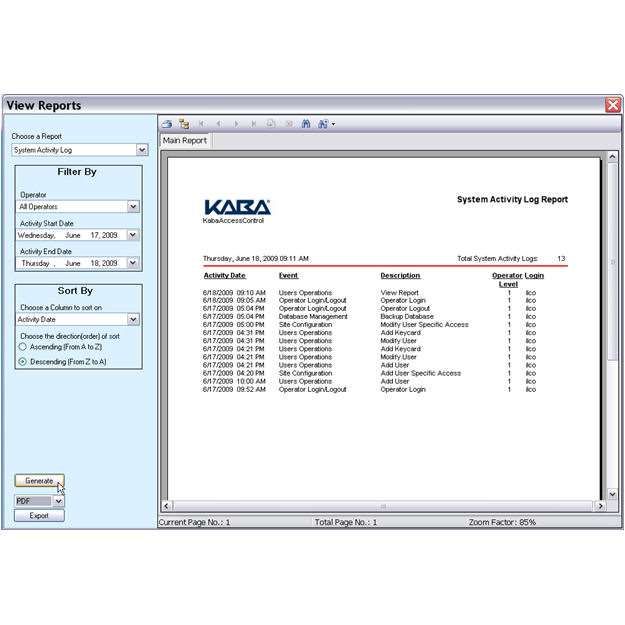

• Extensive Report (powered by Crystal Reports!) generation capability such as Lock Audits reports, Operator Activity at PC reports, Access Groups reports, Access Schedules reports, Users by a Door and Doors by a User reports, User ID cards reports, etc.
• Database backups can be set up to run every day at a preset time for a 7-day period as a buffer. In cases of data corruption where ‘when’ is not known, any of the previous 7-days’ files can be chosen

PC Requirements Stand Alone PC (for “Express” Install)

• MS Window’s compatible PC with minimum Pentium-III 500+MHz processor
• Minimum 1 GB of RAM
• Minimum of 4 GB of free hard disc space when using smaller SQL database
• SVGA Monitor with minimum resolution of 1024 x 768
• CD-ROM drive for software installation
• Minimum of 2 USB ports in PC to connect the Prox Enroller (for E-Plex card locks/controllers) and the M-Unit
• One of the Microsoft Operating Systems: Windows 7, MS Windows XP Professional (SP 2 or higher), or MS Windows VISTA Home Premium or Business – 32 bit version only MS SQL Express 2005 (SP2 or higher) – supplied with Enterprise software

Networked PCs (for “Custom” Install)

• Client PC: Same requirements as Stand Alone PC above, except the MS SQL
• Server PC: Same requirements as Stand Alone above, except: Recommended 2+GB of RAM when using larger SQL database; Recommended 10+GB free hard disc space for larger SQL database
• Monitor not required
• MS Windows Server 2003 Operating System (if not using XP or VISTA)
