dormakaba E-Plex E5766

Name: dormakaba E-Plex E5766
Brand: GoKeyless
SKU: E5766XSWL62641
Price: 1265.85 USD
Availability: InStock

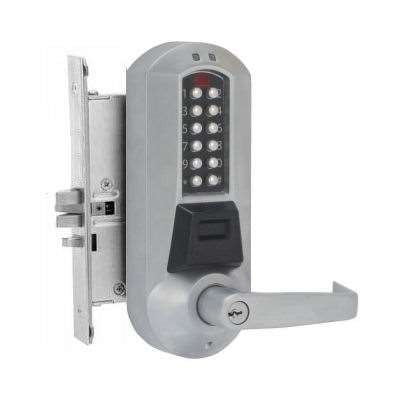

PIN/Prox Dual Credential Mortise Lock

SKU: E5766XSWL62641

dormakaba E-Plex

The Kaba E-Plex E5766 provides consolidated card access control system using single or multi-factor authentication to protect sensitive commercial spaces, or less susceptible areas where convenience is a priority. Programming from the keypad, a stand-alone PC, or your network simplifies access control management of doors and users.

$1,475.00 $1,265.85 SAVE 14%

Features
Description
Specifications

Extra Heavy-Duty ANSI/BHMA Grade 1 Dual Credential PIN/Prox lock
American Steel Mortise locking mechanism
Features LearnLok™ programming. New! Pull audit trails with Auditor Kit without needing to purchase software
Stand-alone advanced access control at one-fifth (1/5) the cost of primitive systems. A new standard in institutional facility management
Tested extensively in outdoor and marine environments; performed flawlessly
Supports Up to 3000 Users: Pass-codes can be 4-8 digits in length (high security with over 100 million possible combinations)
Program at keypad, card reader, or via PC
You determine what’s required for access; PIN only, PROX card only, or PIN + PROX card
Network and PC Programming (offline): Requires laptop/netbook (mini-laptop) and E-Plex Enterprise Implementation Kit (sold separately at checkout)
HID, and 125 kHz, 26 to 84-bit format type prox cards are supported (HID cards available at checkout) Have existing magstripe or ID badges you want to use? No problem, simply add the HID adhesive prox tags at checkout
Audible and Visual Programming Indicators; visual tamper indicator
Three Operating Modes: PIN/card access, passage (can be toggled on/off or pre-programmed to re-lock after certain number of hours), and lockout mode
Five authority levels lets you control who can do what
Time-Determined Access: Using software you can program up to 16 different access schedules, and up to 32 holiday/vacation time blocks (i.e., door auto-unlocks at 9am, and auto-locks at 6pm, or users in group 1 only have access from 10am to 4pm)
First Manager In Feature: Lock does not go to passage mode (enter without code) until the first privileged user’s credential is presented
Passage mode can be manually toggled at the lock
Track entries of who entered and when with built-in audit trail (unit stores last 30,000 events)
Battery Operation: Up to 120,000 cycles on 4 AA alkaline batteries, included. Batteries located in interior housing cover. Low battery indicator. Non-volatile memory; lock’s data preserved if batteries fail
Optional remote unlock feature
Fits virtually all left and right swing doors
Vandal resistant, solid metal push buttons
Patented LectroBolt ‘sandwich-fitting’ yields a 90% reduction in installation time over wired access control systems. Instructions and two-hole drilling template supplied
Multiple architectural finishes including standard satin chrome (626) and premium finishes
Emergency Key Override: Universal 6 pin cylinder (common for commercial applications) with Schlage C keyway provided. Two nickel silver keys, and 4 additional tailpieces (part that connects outside lock to inside lock) included. These tailpieces allow you to use other name brand cylinders in the lock should you choose
3-year manufacturer warranty from date of install; memory has a built-in warranty counter

The E-Plex 5700 HID mortise provides you a consolidated card access control system using single or multi-factor authentication to protect sensitive commercial spaces, or less susceptible areas where convenience is a priority. Programming from the lock's keypad, a stand-alone PC, or your network simplifies access control management of doors and users.

INDUSTRIES BENEFIT FROM E-PLEX ELECTRONIC CARD LOCKS

Achieving remarkable results is easy with E-Plex dual PIN/Prox locks. Companies from the banking, transportation, institutional, healthcare, education, and aviation industries rely on the unshakable confidence of having E-Plex protecting their openings and assets from unauthorized entry or access. Loss-prevention and access control challenges are met head-on at a fraction of the time and cost of primitive wired systems.

UNIQUE CARD LOCK DESIGN PROMOTES SAVINGS

Featuring E-Plex's Patented LectroBolt technology, the 5700 Series abolishes having to run wires to or through the door, while eliminating the risk of damage from pinched wires. The outcome is even more money saved on implementation and installation. Security professionals say this is one of the easiest card locks on the market to install.

CARD ACCESS CONTROL SOLUTION YOU CAN TRUST

From the 145 year old principal leader in security solutions and built on five decades of accomplished engineering success, the E-Plex prox is reassuringly sturdy, functionally comprehensive, and a true workhorse. There is nothing else like it. Want to make your workplace more secure without sacrificing any convenience? E-Plex prox locks help you figure it out.

GoKeyless™ is a factory trained and authorized Kaba dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

Basic

Manufacturer	dormakaba USA Inc.
ANSI Rating	Grade 1 (Best)
Battery Type	AA
BHMA Rating	Grade 1 (Best)
Keyway	Schlage C
Lock Features	Audit Trail, Scheduling, Timed Codes
Solution	Electronic
Warranty	3 Year Manufacturer
Handle Type	Lever Handle Door Locks
Reader Type	Prox Card/Fob RFID
Access Type	Key Keypad - Digits Proximity Card/Fob
Locking Device	Mortise
Brand	dormakaba E-Plex

Door requirements

Door Handing	Universal
Battery Life	180,000 Cycles
Door Prep	Mortise

Security

Code Length	4 to 8 Digits
Fire Rating	3-hour UL/ULC fire rating for A labeled doors
Users	3,000

Dimensions

Exterior Dimensions	8 7/8 (H) x 3 3/8 (W) x 3 3/16 (D) in.
Inside Dimensions	["8 7/8 (H) x 3 13/16 (W) x 2 1/8 (D) in."]
Door Thickness Minimum	1 3/8 in.
Door Thickness Maximum	2 1/4 in.
Door Stile Width	Minimum 5 in.
Exterior Dimensions	8 7/8 (H) x 3 3/8 (W) x 3 3/16 (D) in.
Weight	11.5 lbs
