dormakaba E-Plex E5751

Name: dormakaba E-Plex E5751
Brand: GoKeyless
SKU: E5751XSWL62641
Price: 1253.54 USD
Availability: InStock

Electronic Card Lock with Lockout

SKU: E5751XSWL62641

E-Plex Wireless and E-Plex

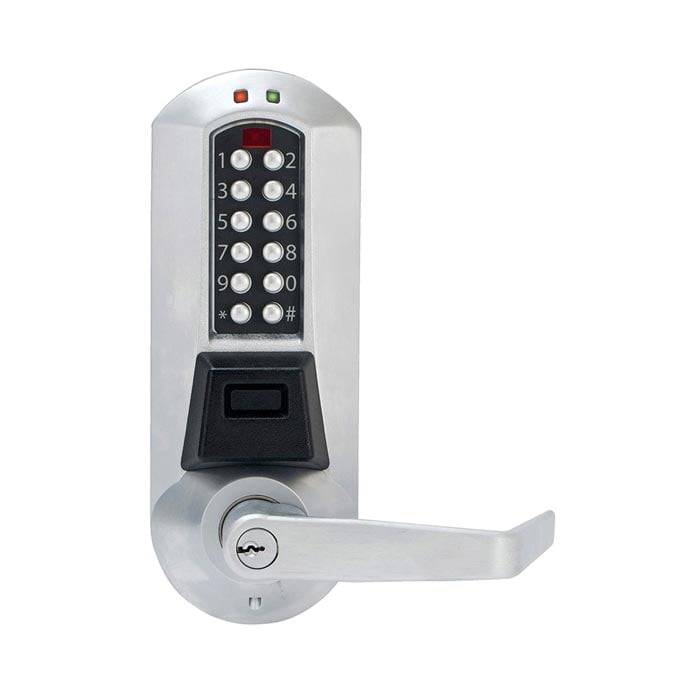

The Kaba E-Plex E5751 is a Extra Heavy-Duty PIN/Proximity lock featuring E-Plex's Patented LectroBolt technology. No more having to run wires at the door, eliminating the risk of damage from pinched wires. Loss-prevention and access control challenges are met head-on at a fraction of the time and cost of primitive wired systems.

$1,253.54$1,611.23

Features
Description
Specifications

Extra Heavy-Duty ANSI/BHMA Grade 1 Dual Credential PIN/Prox lock with privacy
Privacy/Lockout Feature: Set by rotating turn-piece on inside lock body
Stand-alone advanced access control at a one-fifth (1/5) the cost of primitive systems. A new standard in institutional facility management
Tested extensively in outdoor and marine environments – performed flawlessly
Cylindrical latchbolt locking mechanism (latch includes a 1/4″ deadlocking plunger bolt to prevent jimmying)
Supports Up to 3000 Users: Pass-codes can be 4-8 digits in length (high security with over 100 million possible combinations)
Program at keypad, card reader, or via PC
You determine what’s required for access; PIN only, PROX card only, or PIN + PROX card
Network and PC Programming (offline): Requires laptop/netbook (mini-laptop) and E-Plex Enterprise Implementation Kit (sold separately at checkout)
HID, and 125 kHz, 26 to 84-bit format type prox cards are supported (HID cards available at checkout) Have existing magstripe or ID badges you want to use? No problem, simply add the HID adhesive prox tags at checkout
Audible and Visual Programming Indicators: Visual tamper indicator
Three Operating Modes: PIN/card access, passage (can be toggled on/off or pre-programmed to re-lock after certain number of hours), and lockout mode
Five authority levels lets you control who can do what
Time-Determined Access: Using software you can program up to 16 different access schedules, and up to 32 holiday/vacation time blocks (i.e., door auto-unlocks at 9am, and auto-locks at 6pm, or users in group 1 only have access from 10am to 4pm)
First Manager In Feature: Lock does not go to passage mode (enter without code) until the first privileged user’s credential is presented
Passage mode can be manually toggled at the lock
Track entries of who entered and when with audit trail feature (unit stores last 30,000 events)
Fits virtually all left and right swing doors
Battery Operation: Up to 180,000 cycles on 4 AA alkaline batteries, included. Batteries located in interior housing cover. Low battery indicator. Non-volatile memory; lock’s data preserved if batteries fail
Vandal resistant, solid metal pushbuttons
Patented LectroBolt ‘sandwich-fitting’ yields a 90% reduction in installation time over wired access control systems. Instructions and two-hole drilling template supplied
Emergency Key Override: Universal 6 pin cylinder (common for commercial applications) with Schlage C keyway provided. Two nickel silver keys, and 4 additional tailpieces (part that connects outside lock to inside lock) included. These tailpieces allow you to use other name brand cylinders in the lock should you choose
3-year manufacturer warranty from date of install; memory has a built-in warranty counter

Achieving remarkable results is easy with E-Plex dual PIN/Prox Privacy locks. Industries across the board rely on the unshakable confidence of having E-Plex protecting their openings and assets from unauthorized entry or access. Loss-prevention and access control challenges are met head-on at a fraction of the time and cost of primitive wired systems. Featuring E-Plex's Patented LectroBolt technology, the 5700 Privacy lock abolishes having to run wires to or through the door, while eliminating the risk of damage from pinched wires. The outcome is even more money saved on implementation and installation. Built on five decades of accomplished engineering success, the E-Plex prox is reassuringly sturdy and a true workhorse. There is nothing else like it. Want to make your workplace more secure without sacrificing any convenience? E-Plex prox locks help you figure it out. Perfect for securing college and school classroom doors, single-occupancy restrooms, dressing rooms, darkrooms, hospital on-call/sleeping rooms, executive offices, confidential filing rooms, and more!

GoKeyless™ is a factory trained and authorized dormakaba dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

Basic

Manufacturer	dormakaba USA Inc.
ANSI Rating	Grade 1 (Best)
Battery Type	AA
BHMA Rating	Grade 1 (Best)
Keyway	Schlage C
Lock Features Old	Audit Trail, Passage Mode, Privacy, Scheduling, Timed Codes
Solution	Electronic
Warranty	3 Year Manufacturer
Handle Type	Lever Handle Door Locks
Access Type	Key Keypad - Digits Proximity Card/Fob
Brand	E-Plex Wireless E-Plex

Door requirements

Door Handing	Non-Handed
Battery Life	180,000 Cycles
Door Prep	Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s)

Security

Fire Rating	3-hour UL/ULC fire rating for A labeled doors
Users	3,000

Dimensions

Exterior Dimensions	8 7/8 (H) x 3 3/8 (W) x 3 13/16 (D) in.
Inside Dimensions	["8 7/8 (H) x 3 3/16 (W) x 2 1/8 (D) in."]
Door Thickness Minimum	1 3/8 in.
Door Thickness Maximum	2 1/4 in.
Door Stile Width	Minimum 5 in.
Exterior Dimensions	8 7/8 (H) x 3 3/8 (W) x 3 13/16 (D) in.
Weight	9.5 lbs
