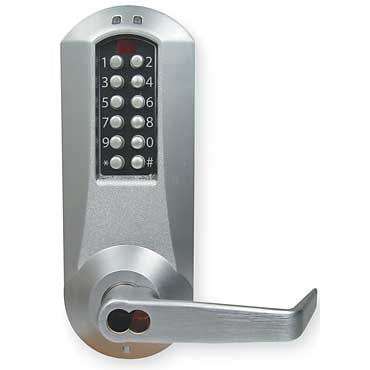

Name: dormakaba E-Plex E5231IC
Brand: GoKeyless
SKU: E5231CWL62641
Price: 909.54 USD
Availability: InStock

Features
Description
Specifications

Heavy Duty – ANSI/BHMA Grade 1, computer programmable access control lock prepped for IC core / Removable core key override (E5231B, E5231C, E5231M, E5231R, E5231S models available)
Cylindrical latchbolt locking mechanism (latch includes a 1/4″ deadlocking plunger bolt to prevent jimmying of door)
Supports 3000 users per door; 4-8 digit user access codes (100 million possible code combinations)
Network and PC Programming (offline): Requires laptop/netbook (mini-laptop) and E-Plex Enterprise Implementation Kit (sold separately at checkout)
Time-Determined Access: Via software, program up to 16 different access schedules, and up to 32 holiday/vacation time blocks (i.e., door auto-unlocks at 9am, and auto-locks at 6pm, or users in group 1 only have access from 10am to 4pm)
First Manager In Feature: Lock does not go to passage mode (enter without code) until the first privileged user’s credential is presented
Passage mode can be manually toggled at the lock
6 different authority access levels let you determine who has privileges to specific lock functions
Battery Operation: Up to 180,000 cycles on 4 AA alkaline batteries, included. Batteries located in interior housing cover. Low battery indicator. Non-volatile memory; lock’s data preserved if batteries fail
Tested extensively in outdoor and marine environments; performed flawlessly
Fits virtually all left and right swing doors
Track entries of who entered and when with audit trail feature (reader unit stores last 30,000 events)
Quick and Easy Installation: Patented electrobolt technology provides “sandwich” fitting. No wiring to or through door; no risk of pinched wires. Instructions and two-hole drilling template supplied
Out of the Box Ready: Programming and operating manuals provided
Optional remote unlock feature
Multiple architectural finishes including standard satin chrome (626) and premium finishes. Premium finishes may be subject to 2-3 week lead time
2 3/4″ backset included (2 3/8″ available at checkout) – How do I measure?
Key Override Options: Lock accepts I/C and Removable cores from Best, Best Equivalents (Arrow, Falcon, etc.), Corbin Russwin, Medeco/ASSA/Yale (5 or 6-pin length), Sargent, and Schlage (you may use your own core in the lock, or order a matching core for your prep)
3-year manufacturer warranty; built-in warranty counter

Note: This lock is programmable through Kaba E-Plex software only.

Simple. Smart. Scalable. Upgrading your traditional key locks or mechanical push-button locks is easier than ever with the E-Plex 5200 Series. This lock combines the strength, simplicity, and reliability of the distinguished Kaba Simplex, with the enhanced security and convenience of electronic access control. You and your staff can now use secure codes for access. And since this is auto-locking, you can be assured that doors will always be locked. This adds another layer of security to protect confidential and/or private information in the spaces behind those doors. Does this lock require AC/DC current? Nope. It's fully battery powered, saving you on the overall costs of implementation and installation. You can be up and running in less than hour time. "I've never heard of Kaba, who are they?" Glad you asked! dormakaba has been around since the 1800's making first-class locking technologies. They are the largest provider of access control products in the world.

GoKeyless™ is a factory trained and authorized dormakaba dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

Basic

Manufacturer	dormakaba USA Inc.
ANSI Rating	Grade 1 (Best)
Battery Type	AA
BHMA Rating	Grade 1 (Best)
Finish	Black, Satin Chrome, Bright Brass, Satin Brass, Bright Chrome, Dark Bronze
Lock Features Old	Audit Trail, Passage Mode, Scheduling, Timed Codes
Solution	Electronic
Warranty	3 Year Manufacturer
Handle Type	Lever Handle Door Locks
Access Type	Key Keypad - Digits
Locking Device	Cylindrical Latch
Brand	E-Plex Wireless E-Plex

Door requirements

Door Handing	Universal
Battery Life	180,000 Cycles
Door Prep	Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s)

Security

Code Length	4 to 8 Digits
Code Capacity	3,000
Fire Rating	3-hour UL/ULC fire rating for A labeled doors
Key Override	Best IC, Corbin IC, Medeco/ASSA/Yale IC, Sargent IC, Schlage IC

Dimensions

Exterior Dimensions	8 7/8 (H) x 3 3/8 (W) x 3 13/16 (D) in.
Inside Dimensions	["8 7/8 (H) x 3 13/16 (W) x 2 1/8 (D) in."]
Door Thickness Minimum	1 3/8 in.
Door Thickness Maximum	2 1/4 in.
Backset	2 3/4 in.
Door Stile Width	Minimum 5 in.
Exterior Dimensions	8 7/8 (H) x 3 3/8 (W) x 3 13/16 (D) in.
Weight	9.5 lbs
