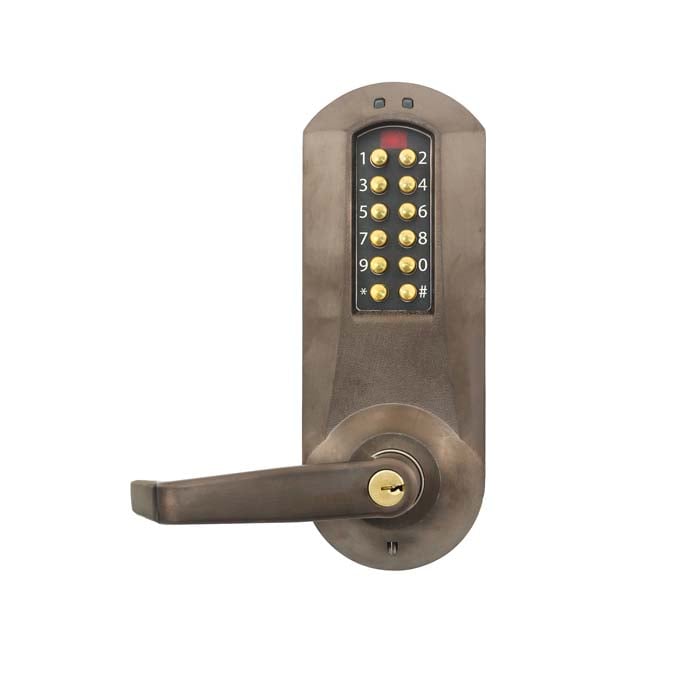

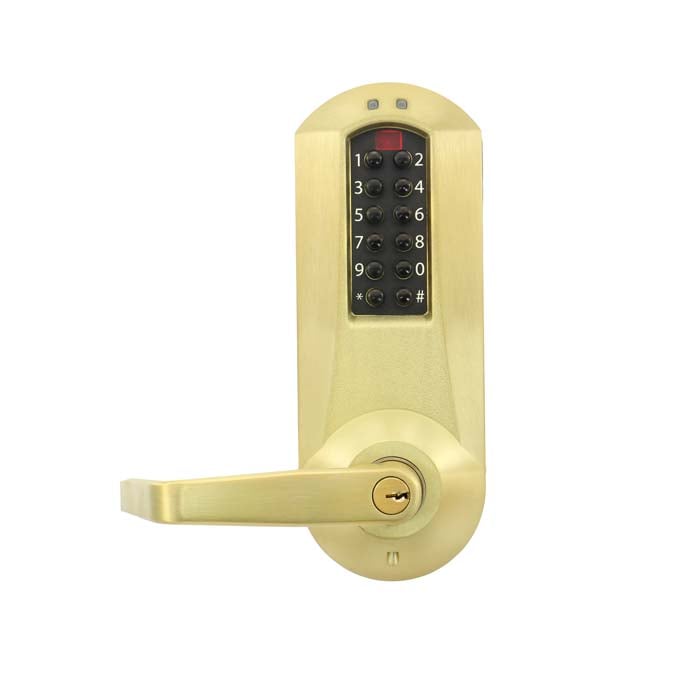

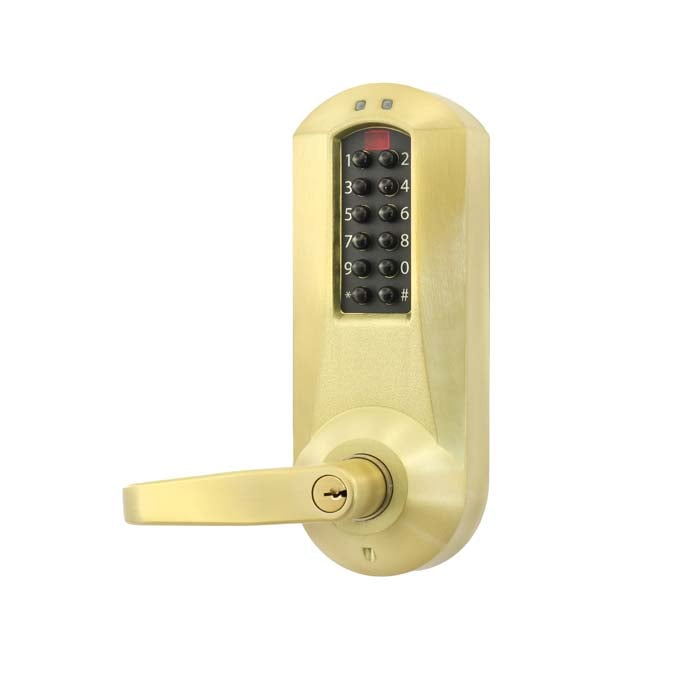

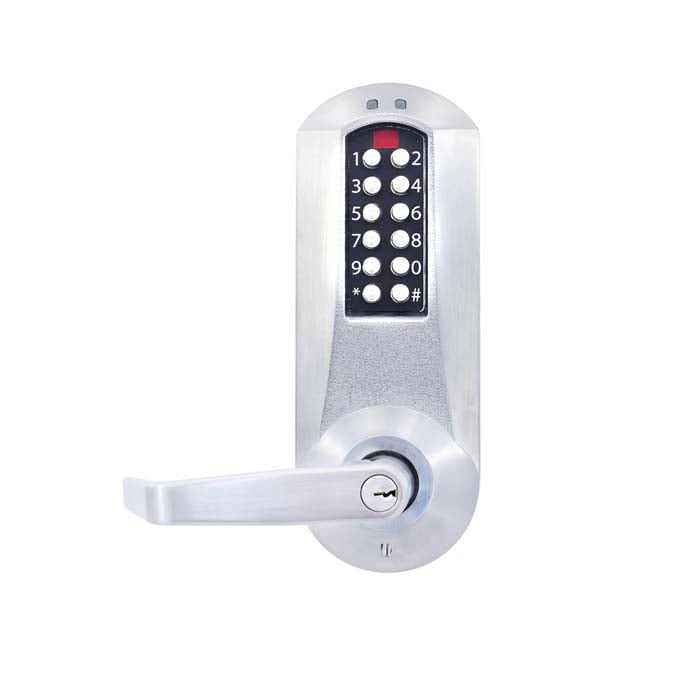

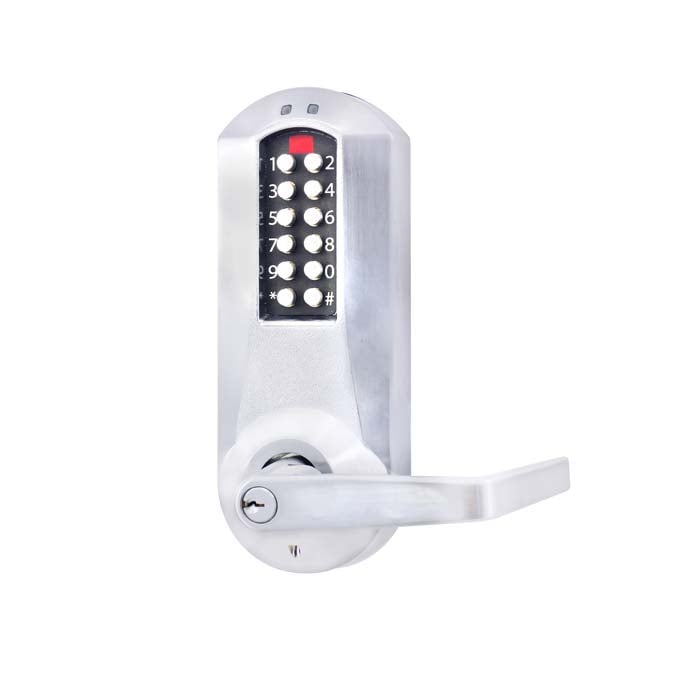

dormakaba E-Plex E5066/E5067

• Heavy Duty - ANSI/BHMA Grade 1, stand-alone access control lock

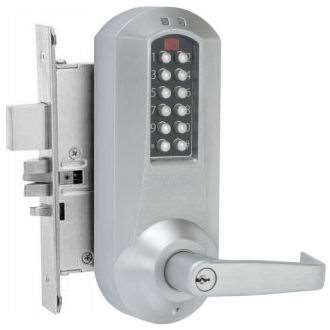

• American Steel Mortise locking mechanism
• Standard or with Deadbolt option
• Supports 100 users; 4-8 digit user access codes (100 million possible code combinations)
• Easy programming via keypad or PC using optional E-Plex Software Implementation Kit (available at checkout)
• PC management simplifies administration of doors and users as facility’s number of personnel and access points grow
• Records a time/date stamp (audit trail) of when user's accessed your door. Downloads into easy to use reports. Requires E-plex 300 Software Implementation Kit (sold separately)

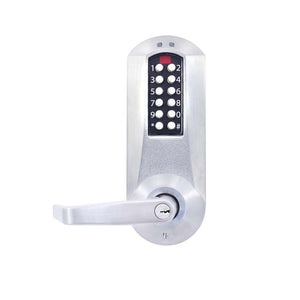

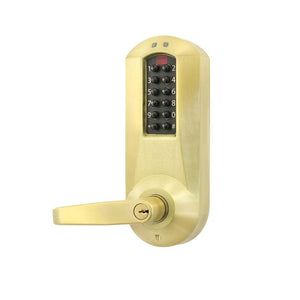

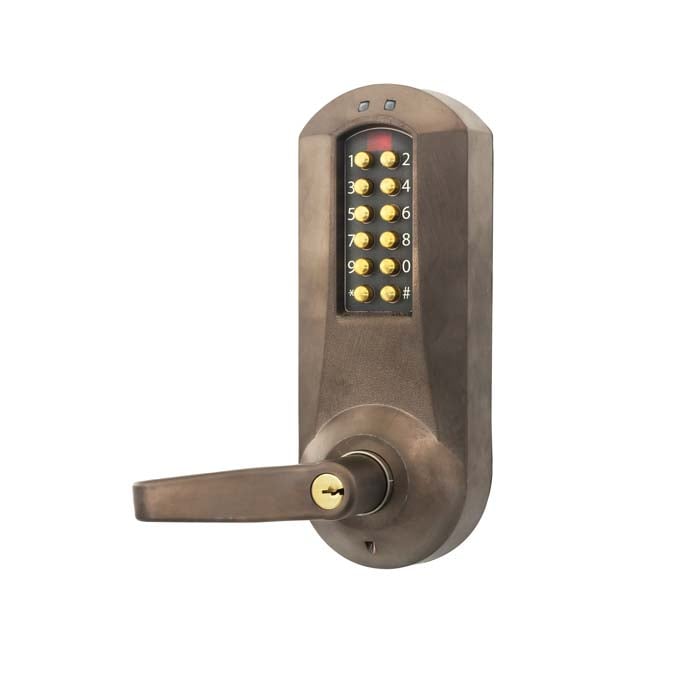

• Weatherproof, robust finish. Additional premium finishes available upon request
• 3 operating modes: PIN code entry, lockout, or passage mode (you can toggle the passage mode, or program it so the door relocks after certain number of hours )
• 5 authority access levels let you determine who has privileges to specific lock functions

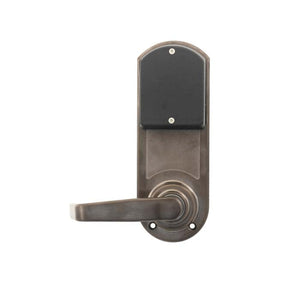

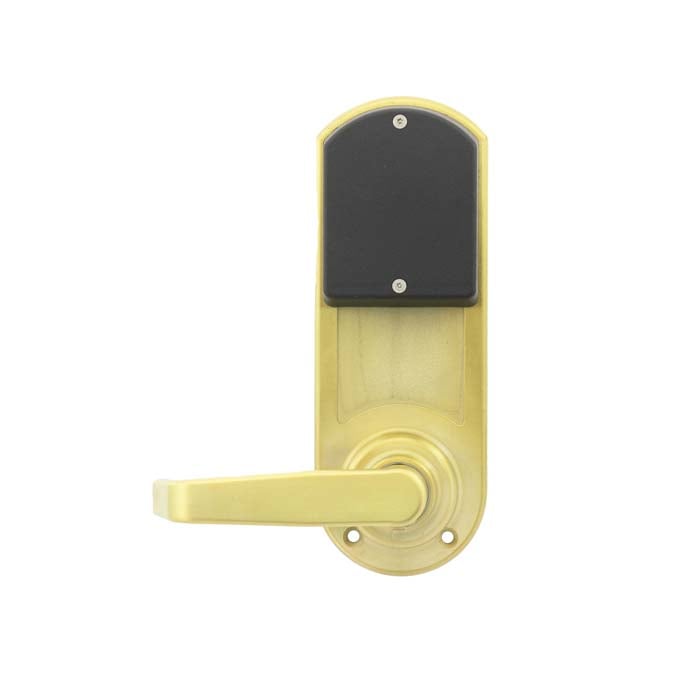

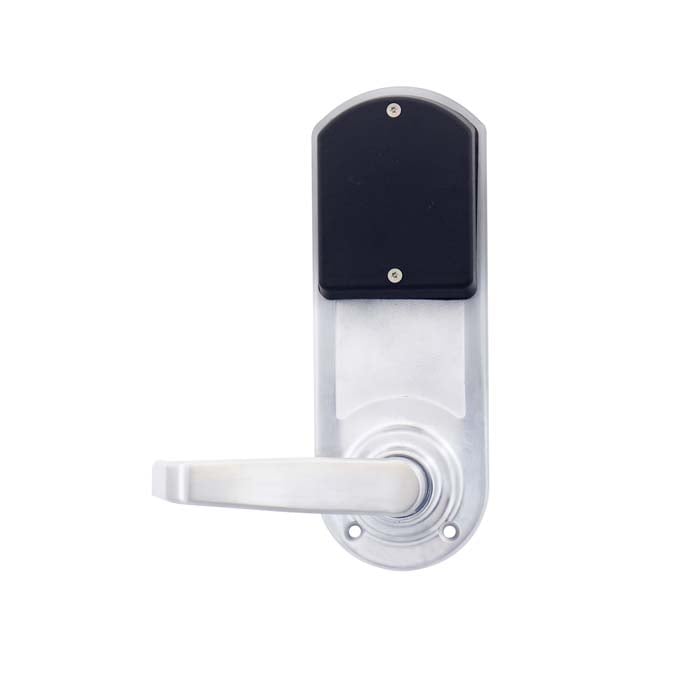

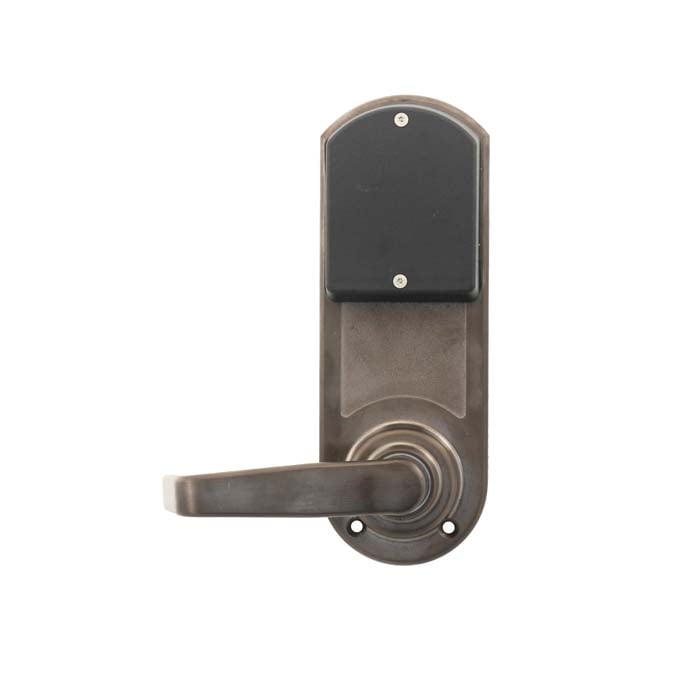

• Battery Operation: 4 AA alkaline batteries included. Batteries located in interior housing cover. Low battery indicator. Non-volatile memory; lock's data preserved if batteries fail
• Tested extensively in outdoor and marine environments - performed flawlessly
• Non-handed, fits virtually all left and right swing doors
• 3,000 event audit trail
• Super-easy installation. Patented electrobolt technology provides "sandwich" fitting. No wiring to or through door; no risk of pinched wires. Instructions and two-hole drilling template supplied
• Out of the box ready - programming and operating manuals provided
• Emergency key override using standard cylinder, or inter-changeable/removable core (interchangeable core models subject to factory lead time). Standard cylinder is a universal 6 pin cylinder (common for commercial applications) with Schlage C keyway. Two nickel silver keys, and 4 additional tailpieces (part that connects outside lock to inside lock) included. These tailpieces allow you to use other name brand cylinders in the lock should you choose. IC cores available here
• Fire Rating: 3-hour UL/ULC (underwriter's laboratory / underwriter's laboratory Canada)
• 3-year manufacturer warranty; built-in warranty counter

Outclasses.  Outlasts.  Outperforms.  Upgrading your physical key mortise locks or mechanical push-button mortise locks is easier than ever with the E-Plex 5066 series.  This lock combines the strength, simplicity, and reliablity of the distinguished Kaba Simplex, with the enhanced security and convenience of stand-alone electronic access control.  You and your staff can now use secure pass-codes for access.  And since this is auto-locking, you can be assured that openings are always locked.  This adds another layer of security to protect confidential and/or private information in the spaces behind those doors.  Does this lock require AC/DC current?  Nope.  It's fully battery powered.  No wiring means you save on implementation and installation, providing you a low total cost of ownership.  It's so straightforward and simple, that you will be up and running in less than an hour's time.  "I've never heard of Kaba, who are they?"  Glad you asked!  Kaba has been around since the 1800's making first-class locking technologies.  They are the largest provider of access control products in the world.
