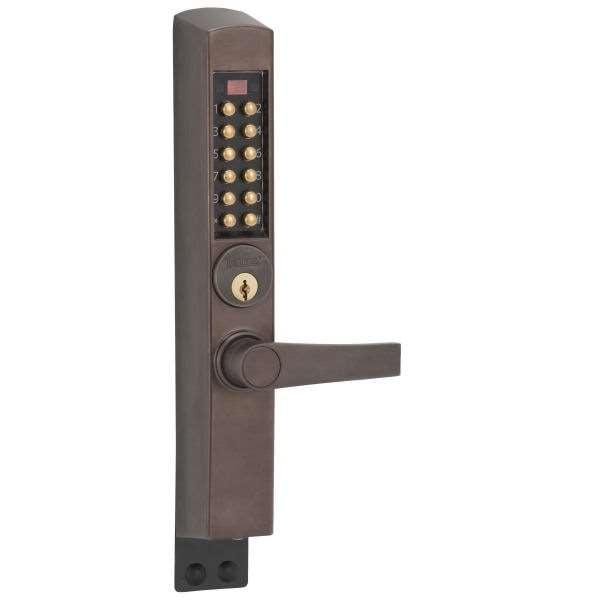

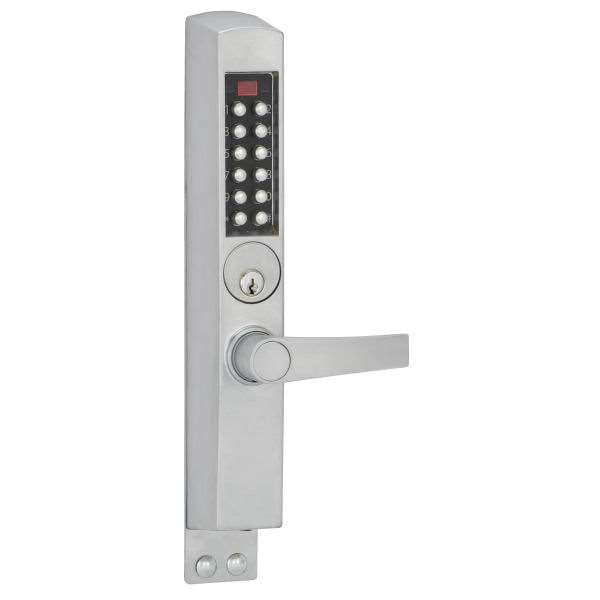

    dormakaba E-Plex E3066MSNL

    Retail Storefront Door Lock

    SKU: E3066MSNL62641

    E-Plex



    The Kaba E-Plex E3066MSNL provides Extra heavy-duty Grade 1 access control for your aluminum narrow stile glass door openings without the need for running wires through walls, or worrying about pinched wires. Now you can issue codes instead of having to keep up with keys or cards. Rest easy knowing no one will be making key copies. Retrofits Adams Rite Deadbolts.

    Finish

    Quantity left : 2

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $131.45

    Call For Price
    • Commercial grade electronic lock for retail and office front entry glass doors. Retrofits and interfaces with Adams Rite mortise deadbolts 1850, 1950, MS 1850S, and MS 1950S for manual re-lock
    • Supports up to 300 users per door
    • Easy programming via keypad or PC using optional E-Plex Software Implementation Kit (available at checkout)
    • PC management simplifies administration of doors and users as facility’s number of personnel and access points grow
    • Records a time/date stamp (audit trail) of when user's accessed your door. Downloads into easy to use reports. Requires E-plex 300 Software Implementation Kit (sold separately)
    • Passage feature - code or key enabled, can be pre-programmed to re-lock after a certain number of hours (from 1 ~ 24)
    • Lockout feature - code enabled
    • 5 authority levels lets you control who can program certain lock functions. (The Master level has more authority than the Manager level, the Manager level more than the User level, etc...)
    • Simple installation for retrofitting aluminum frame narrow stile glass doors that manually lock. Use with your existing Adams Rite deadbolt or purchase adeadbolt from us at checkout
    • Featuring Kaba's Patented LectroBolt technology
    • Vandal resistant, numeric keypad with solid metal buttons and anti-tamper lockout feature after pre-determined wrong code attempts
    • Battery Operation: 4AA alkaline; 180,000 cycles. Batteries secured in tamper-proof base of outside housing
    • Lock assembly, installation manual, quick reference guide, operations manual, installation template, cylinder, mounting hardware and batteries all included
    • Optional remote unlock feature
    • Easy door preparation: fast installation on aluminum glass doors with 4 mounting screws
    • ADA (American’s with Disability Act) certification
    • Non-handed to fit left and right swing doors
    • Emergency key override. Mortise kaba cylinder (Schlage “C” keyway) included
    • 3-year warranty from date of installation; built-in warranty counter in lock memory

    GoKeyless™ is a factory trained and authorized Kaba E-Plex® dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Extra heavy-duty Grade 1 access control for your aluminum narrow stile glass door openings without the need for running wires through walls, or worrying about pinched wires.  All made possible because of the Patented LectroBolt technology.  How does it work?  It runs on a battery powered system that will provide you nearly 180,000 cycles.  With the E-Plex 3000 now you can issue codes instead of having to keep up with keys or cards.  You can rest easy knowing no one will be making key copies.  You can turbocharge your security while increasing workplace convenience in less than an hour's time.  Your business and your time is worth it.

    GoKeyless™ is a factory trained and authorized dormakaba dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year

    Basic

    Manufacturer dormakaba USA Inc.
    Battery Type AA
    BHMA Rating Grade 1 (Best)
    Finish Satin Chrome, Dark Bronze w/ Brass Accents
    Keyway Schlage C
    Lock Features Old Audit Trail, Passage Mode
    Solution Electronic
    Warranty 3 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits
    Locking Device Adams Rite Mortise Deadbolt
    Brand E-Plex

    Door requirements

    Door Handing Non-Handed
    Battery Life 180,000 Cycles
    Door Prep Through-Bolt Hole(s)

    Security

    Code Length 4 to 8 Digits
    Code Capacity 300

    Dimensions

    Door Thickness Minimum 1 3/4 in.
    Dimensions 11 9/16 (H) x 1 3/4 (W) x 2 7/8 (D) in.
    Door Stile Width Maximum 1 3/4 in.
    Weight 5.1 lbs
