dormakaba E-Plex E201UXSLL626

Name: dormakaba E-Plex E201UXSLL626
Brand: GoKeyless
SKU: E201UXSLL62641
Price: 528.0 USD
Availability: InStock

Electronic Push Button Exit Trim

SKU: E201UXSLL62641

E-Plex

Panic bar/exit device sold separately.

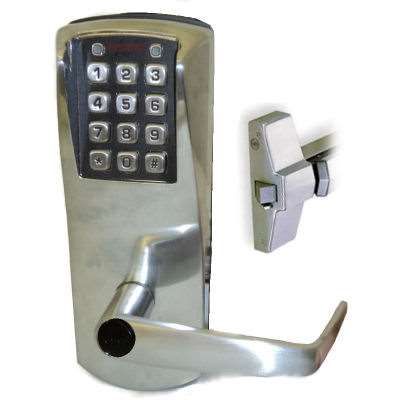

The Kaba E-Plex E201UXSLL626 is an economical light-duty commercial exit lock. Assign and issue PIN codes using the keypad. Each time there is a user change, simply log-in with your master PIN to modify users. Suitable for offices, hospitals, schools, and more.

$687.00 $528.00 SAVE 23%

Features
Description
Specifications

100 User capacity. Millions of possible code choices
Exit Device Compatibility: Von Duprin #’s 98/99, Von Duprin Surface Vertical Rod #’s 9827/9927, Detex Rim # F1001, Detex Surface Vertical Rod #’s 20/F20, Dorma Rim # F9300, Precision Rim #’s 21/FL21, Precision Surface Vertical Rod #’s 22/FL22, Arrow Rim # 3800*, Sargent # 8800* *Requires 062-514-148 Kit, sold separate, special order
Satin chrome finish; special order for satin brass
3 Operation modes: Access, lockout, & passage (passage mode can be toggled on/off, or pre-programmed to re-lock after a certain number of hours
Field reversible full size ADA lever
Perfect for wood and metal doors – installation screws for both included
Programming accomplished via the lock’s keypad
Rugged clutch mechanism insures long life & durability
Four authority levels: Master, Manager, User and Service
Auto-locking but may be programmed to passage mode
Always an instant, free exit with inside lever
Patented LectroBolt makes it easy to install and maintain
Operates on 3AA alkaline batteries maintained in exterior housing; 100,000 lock cycles before batteries need changing
Lock data not compromised if batteries fail
Key override using a standard key-in-lever Kaba cylinder with Schlage C type keyway. Key cylinder is concealed from view
3-year manufacturer warranty

Manuals
Operations Manual
(Adobe Acrobat Reader is required to view PDF files. This is a free program available from the Adobe web site. Follow the download directions on the Adobe web site to get your copy of Adobe Acrobat Reader)

Tired of issuing, controlling, and collecting keys or cards? Want to ELIMINATE the costs and security concerns of managing keys, changing locks, lost keys, and magnetic stripe cards? Then look no further than this economical light-duty commercial exit lock. Using touchpad control, you assign and issue PIN code credentials of 4-8 digits in length. Each time there is a user change, simply log-in with your master PIN and either delete/change/add users. The E-Plex 2000 panic door locking system is an INVESTMENT in your business's security, and productivity.

Banks, Hospitals, Schools, Restaurants, Movie Theatres, Airports, Retail, Offices, Pharmacies Product Enhancement | Effective 3/1/12 E-Plex 2000 Series locks now available with audit trail and software management. Utilizing the M-Unit Kit (sold separate), and E-Plex Standard Software (Download FREE), you can access the last 1,000 audit events recorded in memory, including the use of the mechanical key override.

GoKeyless™ is a factory trained and authorized Kaba E-Plex® dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.M-Unit Kit (sold separate), and E-Plex Standard Software (Download FREE), you can access the last 1,000 audit events recorded in memory, including the use of the mechanical key override.

Basic

Manufacturer	dormakaba USA Inc.
ANSI Rating	Grade 1 (Best)
Battery Type	AA
BHMA Rating	Grade 1 (Best)
Finish	Satin Chrome
Keyway	Schlage C
Lock Features	Audit Trail, Passage Mode
Solution	Electronic
Warranty	3 Year Manufacturer
Handle Type	Lever Handle Door Locks
Access Type	Key Keypad - Digits
Locking Device	Panic/Exit Exit - Rim Exit - SVR
Brand	E-Plex

Door requirements

Door Handing	Reversible
Battery Life	100,000 Cycles
Door Prep	Through-Bolt Hole(s)

Security

Code Length	4 to 8 Digits
Code Capacity	100

Dimensions

Exterior Dimensions	8 15/16 (H) x 3 5/16 (W) x 2 13/16 (D) in.
Door Thickness Minimum	1 3/4 in.
Door Thickness Maximum	2 1/4 in.
Door Stile Width	Minimum 5 in.
Exterior Dimensions	8 15/16 (H) x 3 5/16 (W) x 2 13/16 (D) in.
Weight	6 lbs
