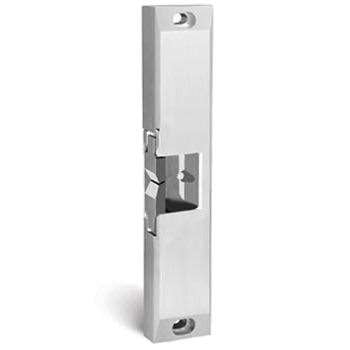

HES 9600

• Indoor / Outdoor use
• Accepts 12VDC and 24VDC dc volt current
• Tamper resistant - heavy-duty construction
• Completely surface mounted
• Field selectable fail secure/fail safe
• Non-handed (fits left and right swing doors)
• Horizontal lockdown screws
• Accommodates up to a ¾" throw pullman latch
• UL1034 burglary-resistant rated
• Static strength 1,500 lbs.
• Dynamic strength 70 ft-lbs.
• Endurance 500,000 cycles
• ANSI/BHMA, A156.31 Grade 1
• 5 year limited warranty
• Latchbolt, and latchbolt and keeper, monitoring options; custom orders accepted

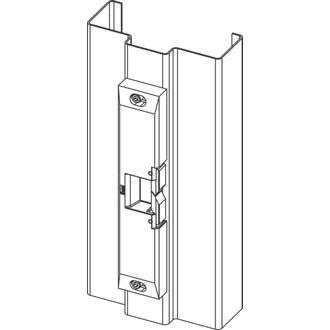

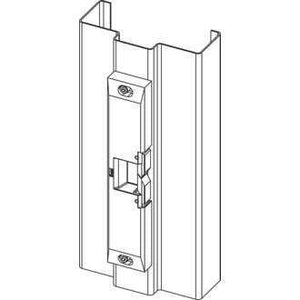

When you have a single exit door with inside touchbar setup, or double exit doors (must have center mullion between doors) with inside touchbar setup, and you need to either release the door remotely, such as with an intercom, or you have an outsidekeypad/reader for gaining access, then be sure to pick up this rim exit device electric strike.  Being completely surface-mounted, the 9600 series Genesis III is the first of its kind.  The 9600 accommodates rim exit devices in metal or wood jambs, and features an internally mounted solenoid and two stainless steel, independently operating locking mechanisms. East to install with all of the components encased in the 9" x 1-¾" x ¾" faceplate, requiring no cuts to the jamb prior to installation.
center mullion between doors) with inside touch bar setup, and you need to either release the door remotely, such as with an intercom, or you have an outside keypad/reader for gaining access, then be sure to pick up this rim exit device electric strike. Being completely surface-mounted, the 9600 series Genesis III is the first of its kind. The 9600 accommodates rim exit devices in metal or wood jambs, and features an internally mounted solenoid and two stainless steel, independently operating locking mechanisms. East to install with all of the components encased in the 9\" x 1-¾\" x ¾\" faceplate, requiring no cuts to the jamb prior to installation.
