  • HES 9500

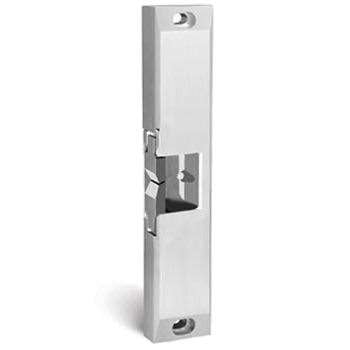

    Fire-Rated Surface Mounted Rim Exit Electric Door Strike

    SKU: 9500-613

    HES



    Finish

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $116.92

    Call For Price
    • UL 10C fire-rated, 3 hour (fail secure)
    • CAN4-S104 (ULC-S104) fire door conformant
    • WHI fire door listed
    • Accepts 12VDC and 24VDC
    • Tamper resistant – heavy-duty construction

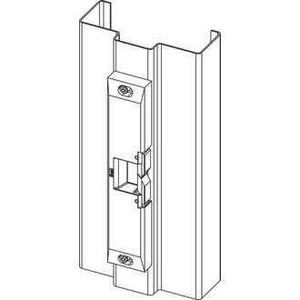

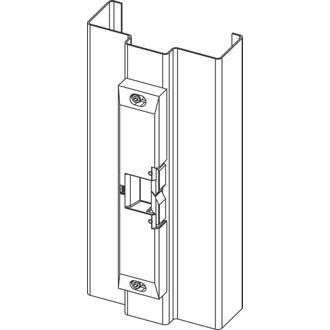

    • Completely surface mounted
    • Field selectable fail secure/fail safe
    • Non-handed (fits left and right swing doors)
    • Horizontal lockdown screws
    • Accommodates up to a ¾” throw pullman latch
    • UL1034 burglary-resistant rated
    • Static strength 1,500 lbs.
    • Dynamic strength 70 ft-lbs.
    • Endurance 500,000 cycles
    • ANSI/BHMA, A156.31 Grade 1
    • 5 year limited warranty
    • Latchbolt, and latchbolt and keeper, monitoring options;  custom orders accepted
    When you have a fire-rated single exit door with inside touchbar setup, or double exit fire doors (must have center mullion between doors) with inside touchbar setup, and you need to either release the door remotely, such as with an intercom, or you have an outside keypad/reader for gaining access, then be sure to pick up this fire-rated rim exit device electric strike.  Being completely surface-mounted, the 9500 series Genesis III is the first of its kind.  The 9500 accommodates rim exit devices in metal or wood jambs, and features an internally mounted solenoid and two stainless steel, independently operating locking mechanisms. East to install with all of the components encased in the 9" x 1-¾" x ¾" faceplate, requiring no cuts to the jamb prior to installation.

    Basic

    Manufacturer HES
    Finish Oil Rubbed Bronze, Bright Brass, Stainless Steel, Satin Brass, Satin Bronze, Polished Stainless Steel
    Brand HES

    Door requirements

    Security

    Dimensions
