FEIG MAX.U500i

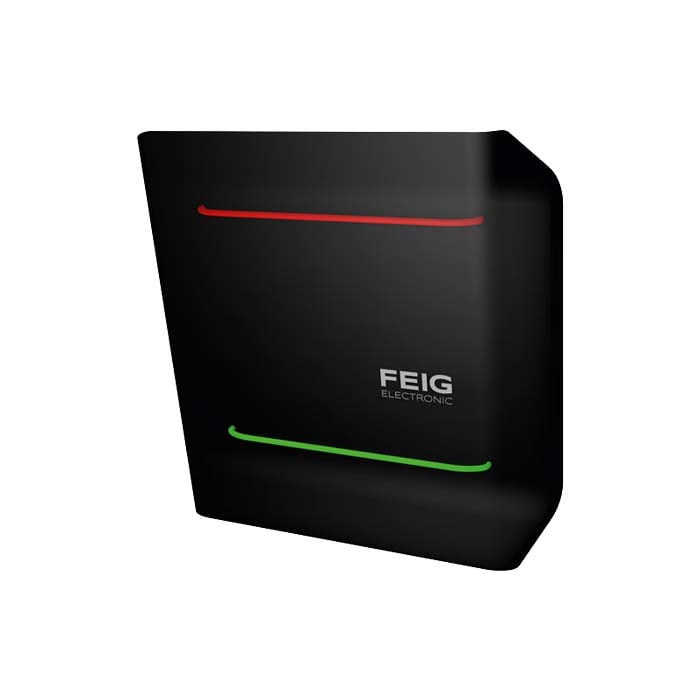

The FEIG MAX.U500i All-in-One Long Range UHF Reader provides a stand-alone solution for vehicle identification and parking access control. Ideal for airports, universities, gated communities and more. This device is a compact UHF Vehicle Access Control Reader combining a UHF Long Range Reader with an integrated antenna, a signal light and an access controller. Vehicle identification is simple by using passive, maintenance-free UHF transponders (sold separately) which can be stuck behind the windshield of the vehicle to allow or deny access. This allows for a secure authentication of detected transponders and prohibits access of transponders with cloned serial numbers.

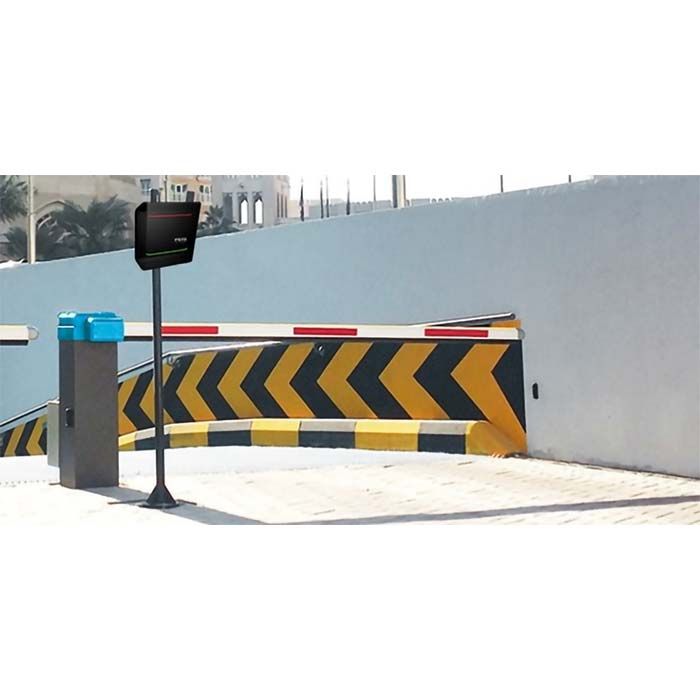

Monitor multiple lanes or check entry and exit simultaneously using two digital outputs and one available antenna port. Useful examples include employee parking lots, corporate driveways, authoritative or other closed facilities that require perimeter protection. Alternatively, the two relays can be set up as signal transmitters for barrier or gate control units. Using the “configuration cloning” feature allows this configuration to be conveniently copied to other devices by the same route. The “Teach-In Mode” is used to teach the transponders to be accessed without the use of the software. If the reader is in this mode, all read transponders are automatically transferred to the access database. All management of the U500i is supported by myAXXESS management software (see tab).

Manage user data, access rights and more using FEIG’s patented myAXXESS Manager software. After this synchronization, the reader can run offline as a stand-alone device More than 4,000 access permissions can be managed and up to 3,000 access control events can be stored. Each user can be assigned to additional temporal restrictions including Holidays and vacation days.

Access control systems on buildings and parking areas should be as uncomplicated as possible. myAXXESS is the secure, powerful and economic solution for small and medium-sized projects. Both in a stand-alone systems and integrated into existing access solutions.

As a RFID specialist, FEIG ELECTRONIC offers systems from a single source, consisting of:

RFID hardware for short-range solutions (HF)
RFID hardware for long-range solutions (UHF)
Software myAXXESS Manager for administration of access authorizations
Transponders for granting authorizations (HF chip cards and UHF wind shield transponders)

EASY SYSTEM MANAGEMENT
The “myAXXESS Manager” software makes it easy to manage access authorizations of people and vehicles. The local database application can control users and groups of users, and accesses for doors and barriers can be co-managed in one project and assigned to specific areas for ease of control.

HIGH SECURITY LEVEL
The software supports the programming of short-range readers such as the ID MAX50.10 for the identification of persons at doors and barriers as well as the programming of long-range readers such as ID MAX.U1002 and MAX.U500i for vehicle access control. If required, secure access projects can be implemented based on secure technologies such as Mifare DESFire and UCODE DNA from NXP.

ADMINISTRATION AND MANAGEMENT
User Management

Management of users and transponders
Assignment of users to user groups
Import of user lists and old projects
Export of user lists
Access Right Management

Managing access rights on single user and single door/barrier level or on user group and area level
Easy managing of access rights with one general map
Import of user lists and old projects
Export of user lists
Door / Barrier Management

Management of doors / barriers and readers
Easy reader configuration
Assignment of doors or barriers to areas
Event list viewer
Time Model Management

Creating own time models from 15 different, self-defined time periods
Holiday Management

List of self-defined holidays
Special access rights for holidays
This software is FREE with No monthly subscription.
